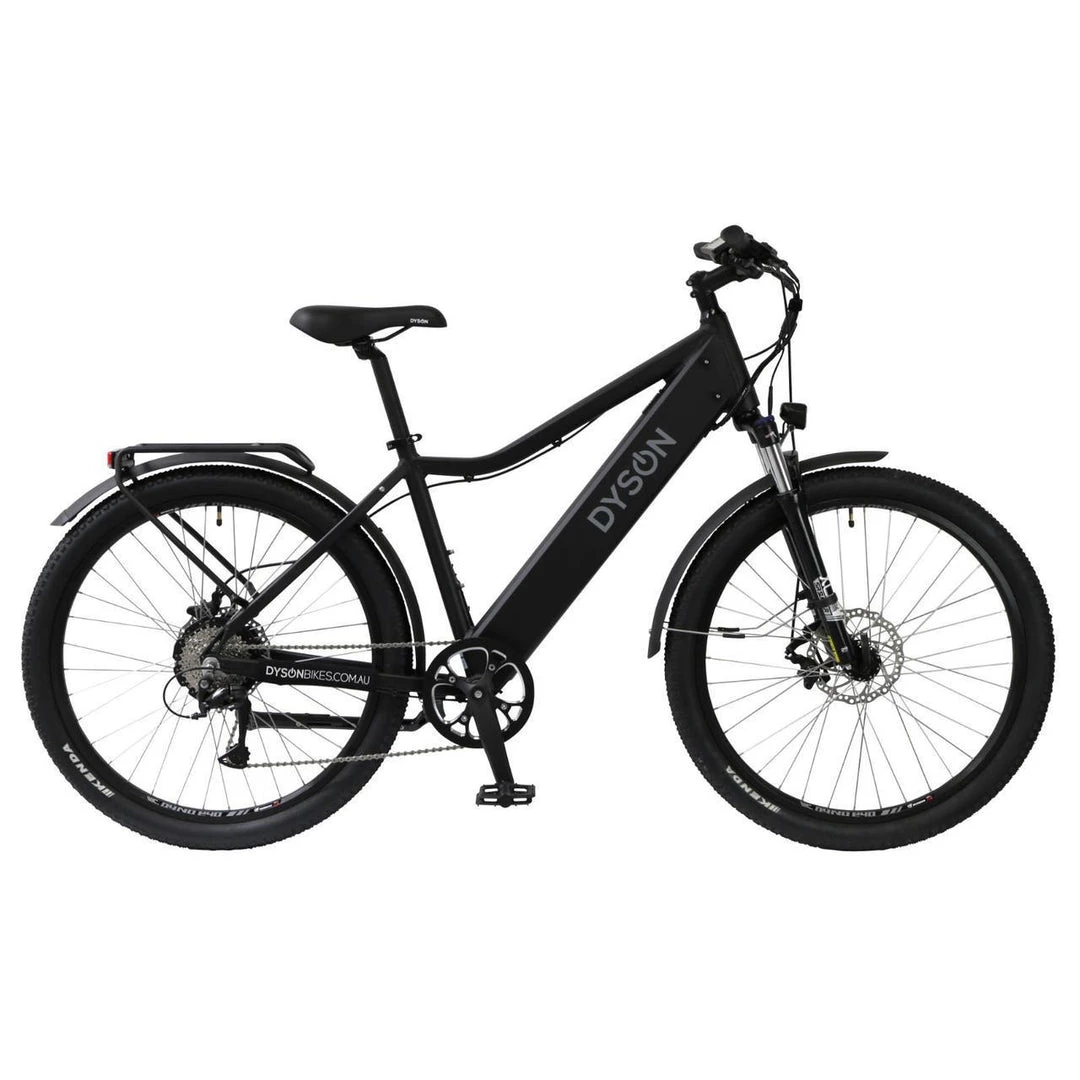

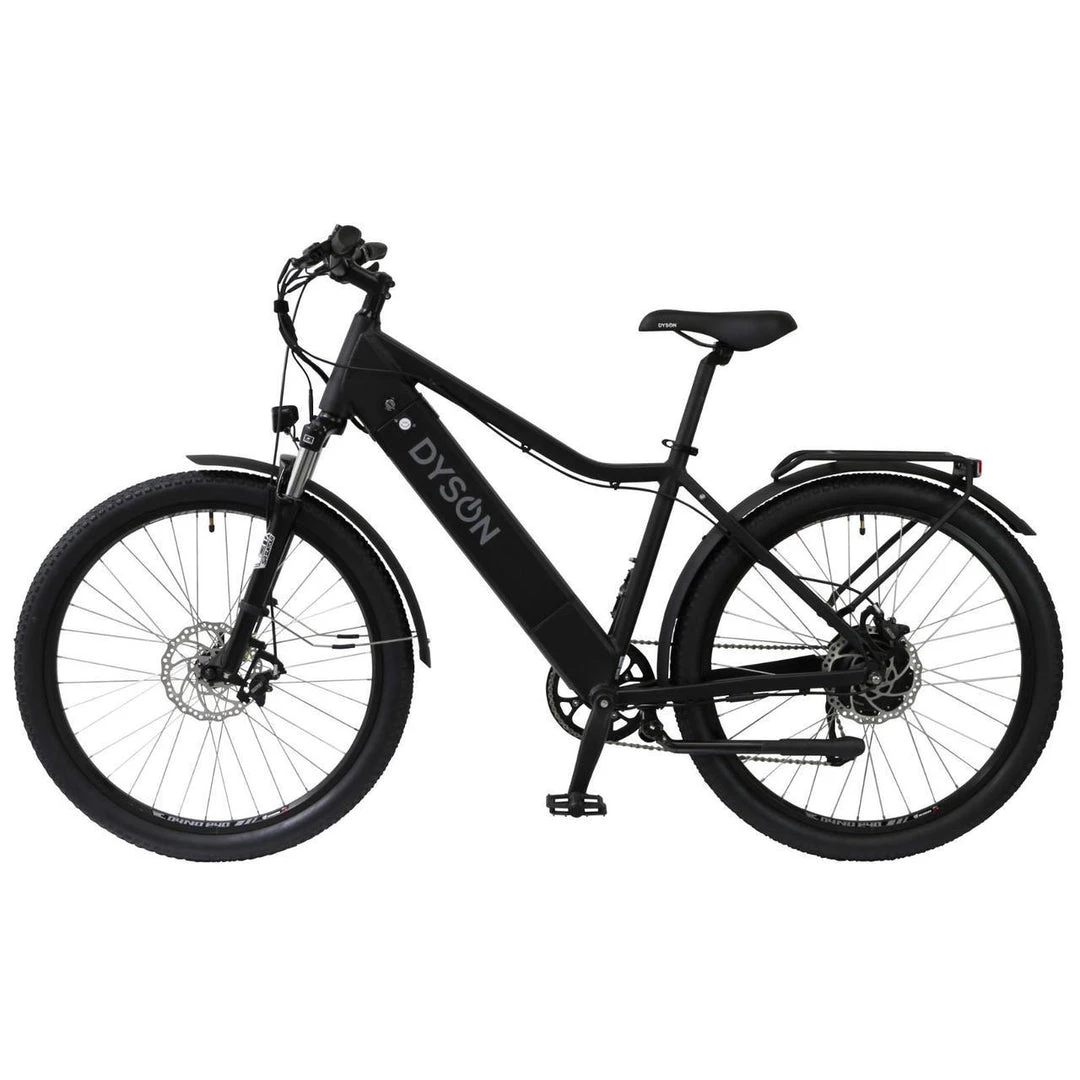

Dyson Hard Tail Evo RTC Electric Bike

Our Hard Tail Evo has further evolved – the new 2020 Hard Tail Evo RTC (Rail Trail, Commuter) is here.

Based on the popular 15Ah version of the Hard Tail Evo the RTC adds mud guards, integrated lights and quality rear rack straight out of the box.

Some of the things you’ll love:

The extruded aluminium mudguards are so strong and will last forever…no plastic that will quickly become brittle under the Australian sun!

Integrated lighting with various modes of flash or constant – and when you brake the rear light will flash quickly – notifying those behind you of your speed reduction…we may just be the ONLY bike in Australia that does this 🙂

Awesome quality rear rack designed for panniers – and in particular the Ortlieb range – so there’s no extra rattle.

There’s also the many features of the original Hard Tail Evo:

Relaxed riding with an upright seating position and higher and wider handlebars.

The Evo’s high specification motor is quieter, stronger and is fitted with a Shimano cassette providing a crisper gear shift and reliability.

You can charge portable devices on the go (such as your mobile or camera) using the USB charge port located in the LCD display.

Our discreet ‘battery in the frame’ design means no one need know you’re riding an e-bike!

27.5-inch Alex rims fitted with oversize Kenda tyres makes any ride comfortable –  from paved roads to dirt tracks.

Ride further – Packed with 50 high quality Panasonic 18650 cells you have 15Ah capacity – giving you well over 100km of range.

Our custom software gives the rider the choice to ride with various assistance levels – from the mild mannered performance of just 70 Watts in assist Level 1, steadily building through to the hill flattening ability in Level 6 all at the push of a button. All modes provide assistance up to the legal limit of 27 kph. The other benefit of the ultra low power mode is extended running time, with a minimum of 7-hours assistance in level 1.

Specifications:

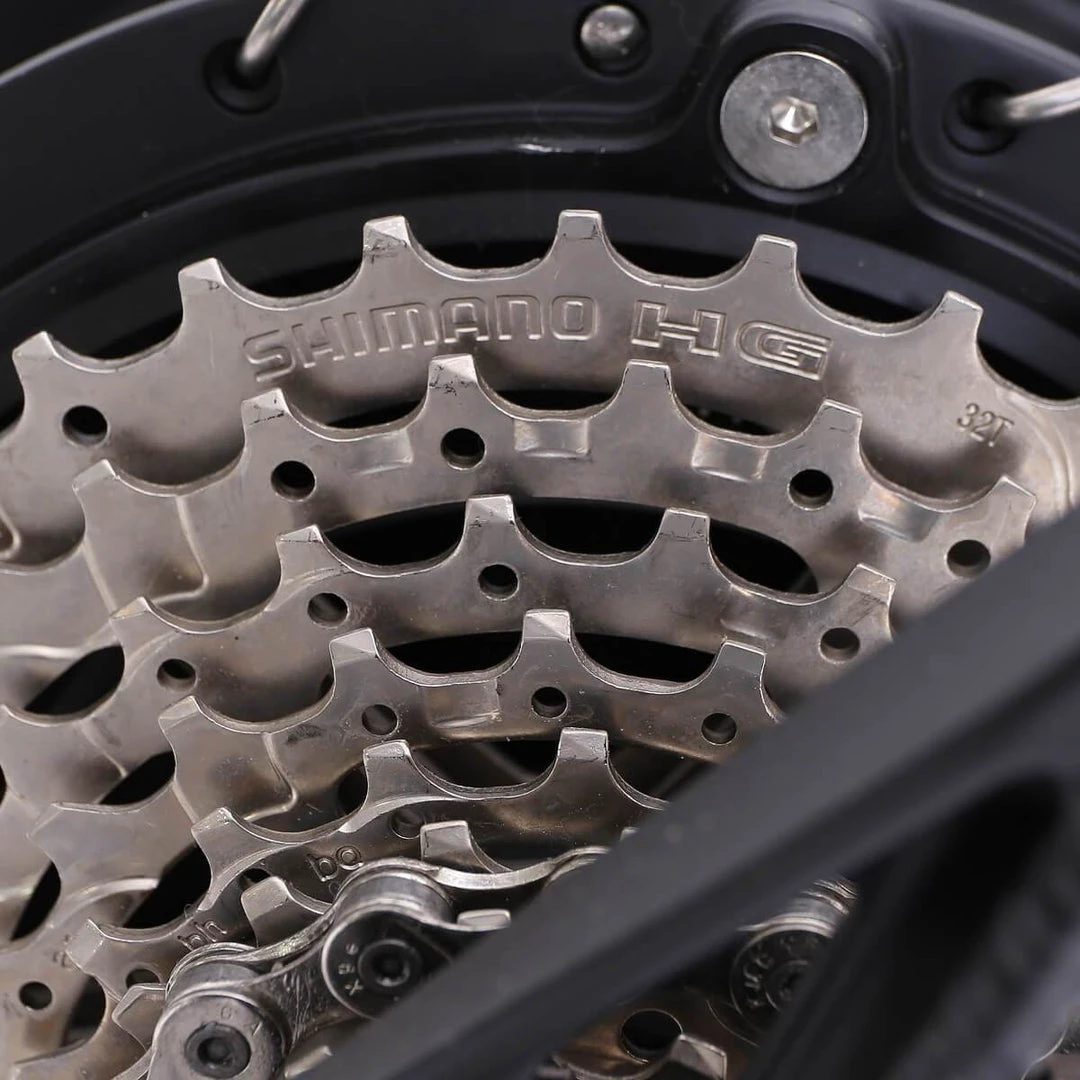

• Gears: 9 speed Shimano Alivio with Shimano HG cassette 11-32T, Single 46T Front Chain wheel

• Extruded aluminium mudguards

• Integrated lighting to front and rear mudguards and rack

• Uniquely designed rear rack – developed for Dyson Bikes to fit a range of panniers – including Ortlieb (18kg max load)

• Wheels: Weimann Dyno E40 27.5” (650B) Alloy rims with angled spoke holes and fitted with Sapim Stainless steel spokes to greatly reduce the risk of spoke breakage.

• Cadence Sensor: Enclosed type

• Seat: Comfort gel seat, alloy adjustable 30.9mm x 350mm seat post with quick release clamp

• Tyres : Kenda 27.5 x 2.1 filled with ‘Slime’ tyre sealant

• Riser Handlebars and Stem: Alloy 680mm swept, 70mm stem

• Front forks: Suntour XCM 30 29-inch compatible, adjustable with lock out

• Studs to mount fabric drink bottles near handlebars

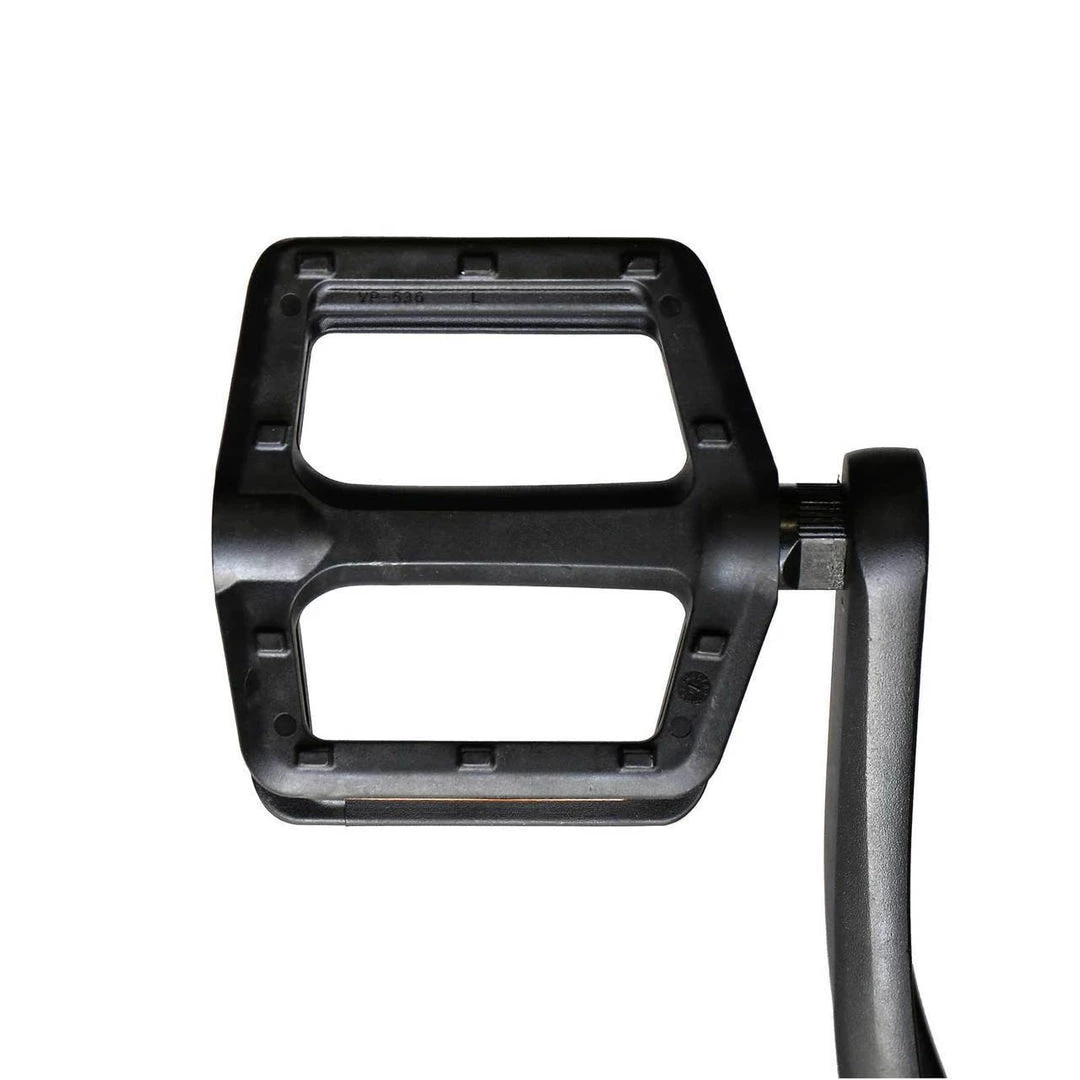

• Pedals: VP Platform

• Brakes: Tektro – 180mm disc rotor Hydraulic with alloy levers featuring integrated power cut outs

• Kick stand: Heavy duty centre mount.

Electrics

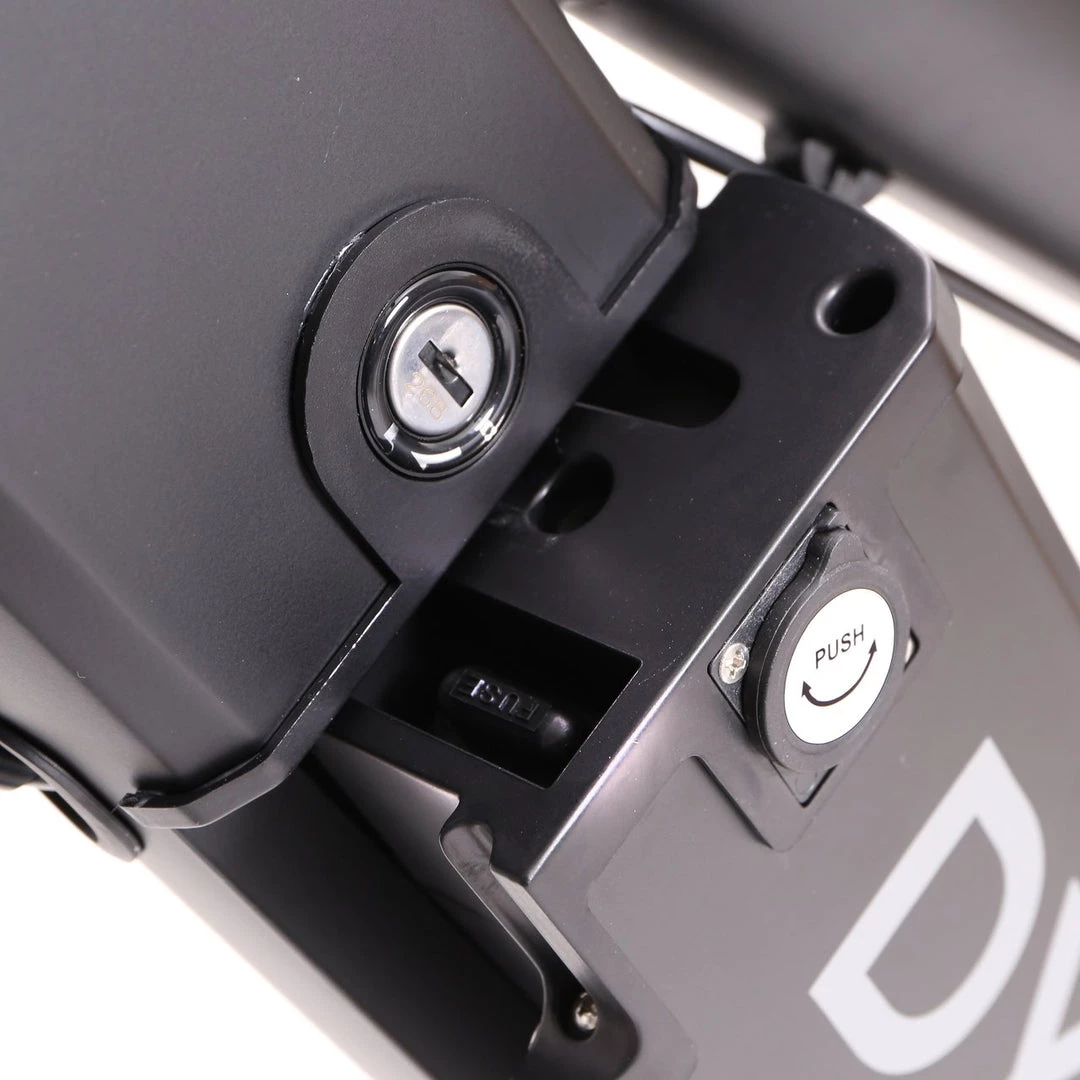

• Battery: 15Ah (540Wh) 36-Volt Lithium-ion Panasonic Cells, Frame mounted lockable weight 3.6 kgs respectively

• Range: Approximately 120km^, ride for 7+ hours in assist level 1

• Charger: 2-amp C-tick approved, charge time approx. 6-8 hours from full battery discharge

• Motor: High torque 250Watt motor

• Assist Function: Pedal Assist

• Display: Back lit LCD with USB Charging port, 7 levels of assist (0 no assist and 6 PAS levels), power meter, battery charge indicator, trip functions
