The Bike

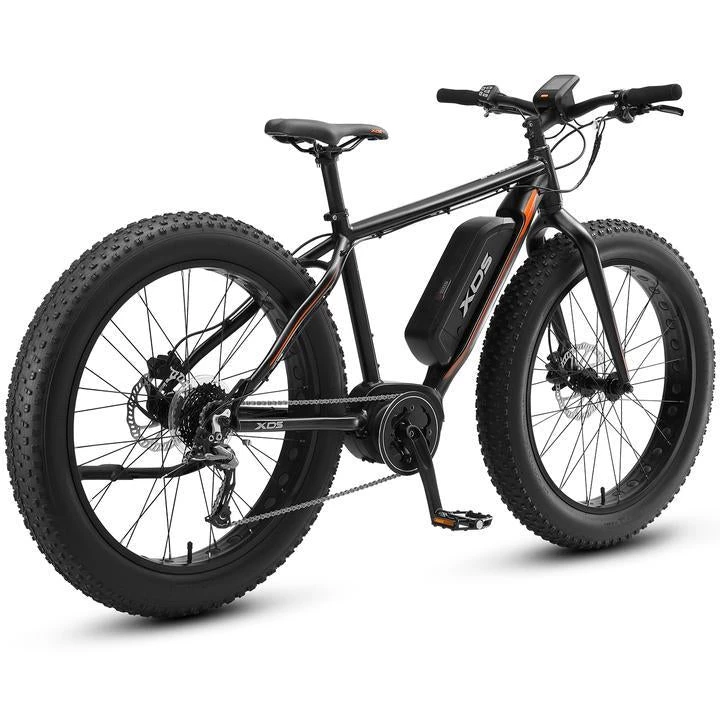

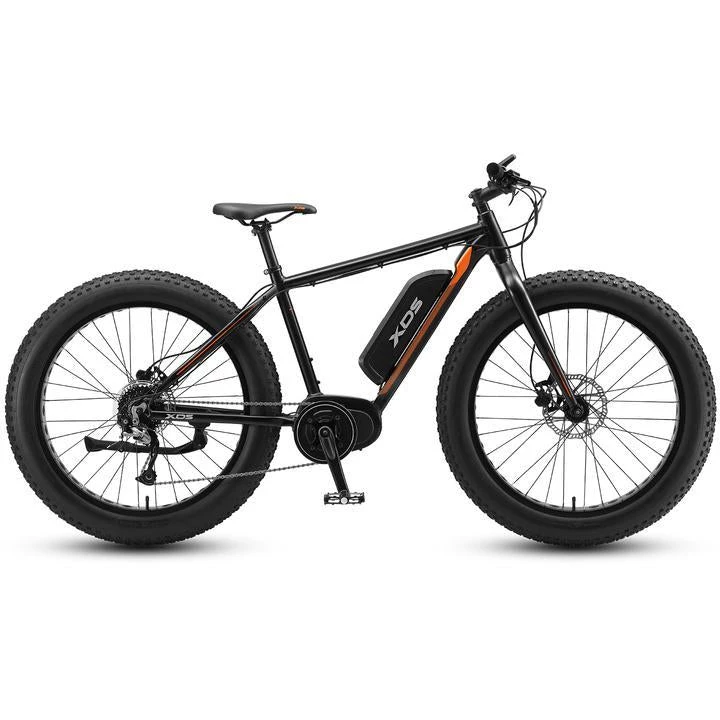

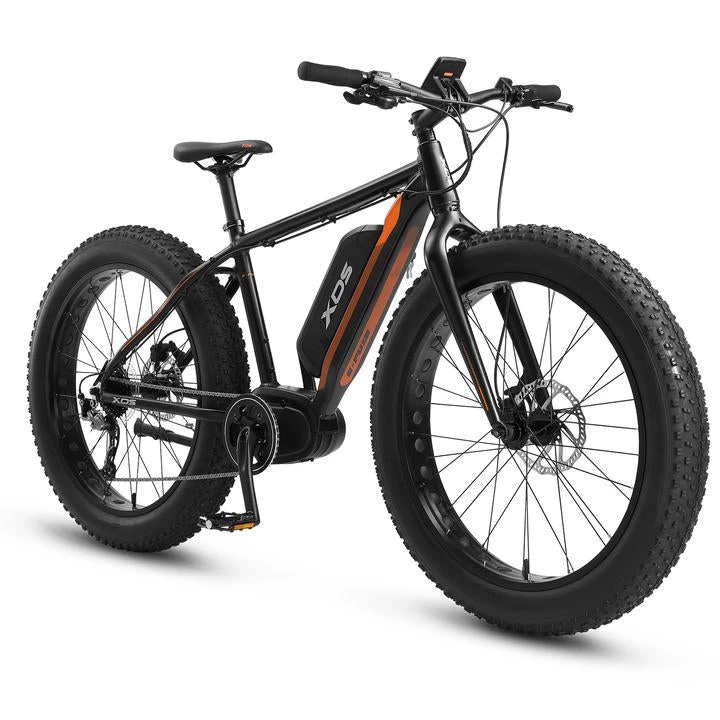

The XDS E-Fuse Fat Tyre E-Bike is an all terrain machine! Powered by a Bafang Mid-drive motor, the E-Fuse is ready to tear up the bitumen, sand, or snow!

Specifications

COLOURS	Black / Orange (Black Ember)
FRAME SIZE	18″
FRAME	XDS X6 Alloy
FORK	Alloy. 26″
HANDLEBAR	XDS Alloy (W：680mm 5°H：25mm)
GRIP	Velo. Triple Density with Alloy Ring Clamp
STEM	XDS Anodised Alloy (φ28.6mm E:80mm H:41mm 7°)
SEAT POST	XDS Anodised Alloy Micro Adjust (φ31.6×350mm)
SEAT CLAMP	HL Anodised Alloy
SADDLE	Velo. High Density Foam, CRO MO Rail, Zone Cut
PEDALS	VP. Alloy Platform, 9/16″
FRONT BRAKES	Tektro Auriga Hyrdaulic Disc Brake, TR180-7 (Ø180mm)
REAR BRAKES	Tektro Auriga Hyrdaulic Disc Brake, TR160-7 (Ø160mm)
BRAKE LEVERS	Tektro Auriga Cast Aluminium Two Finger Lever & Bracket

GEAR SHIFTER	Shimano Alivio SL-M4000 9 Speed Rapid Fire Plus
REAR DERALLIEUR	Shimano Alivio Shadow RD-M4000 9 Speed
FREEWHEEL	Shimano Altus CS-HG200 9 Speed Cassette Sprocket. 11-32t
CHAINWHEEL & CRANKS	Bafang Alloy 3/32″*38t. Cranks Alloy, 9/16″
CHAIN	KMC (1/2″×11/128″×118L)
HEADSET	FSA (φ28.6×φ41.8-φ51.8×φ39.78mm)
FRONT HUB	Alloy 13G×32H 3/8″×135×180mm
REAR HUB	Alloy 13G×32H 3/8″×190×240mm L=R 8/9-SP
BELL	Alloy/Plastic
SPOKES	Stainless Steel (13G)
TYRE	26″ x 4.0″ Stagger Block Knobby Fat Tyres
RIM	XDS Alloy (26″× 559 × 73.6 × 13G × 32H A/V)

Electrics

MOTOR	Bafang MM G330, 36V/250W, Limit 25km/h, CL: 49mm, with Controller and Battery Communication, AU.
DISPLAY	Bafang C07 LCD Display, DC 36V, 0-5 Modes, UART Communication, with Walk Boost and Light Switch.
SENSOR	Bafang. SR SD02.01 Sensor, 1 Pulse, 5V, 500mm

CHARGER INFORMATION	Phylion GS CE 100-240V 1.6A (MAX) 50/60HZ Output: 42V 2A AU Plug
MOTOR CABLE	Bafang MM G33 600mm
BATTERY	Phylion SF-06(CB4A0185) 36V/11Ah, 2900mAh cell, with Intelligent Protection Board and Communication.
