SEB is delighted to be offering the latest 2022 range of Focus Off Road Ebikes from one of the biggest players in the eMTB game. The Sam 6.7 is a new model for 2022. Landing late March with preorders available now.

You would never go for more ups if there wouldn’t be more downs. That is why we wanted to build a new FOCUS SAM² thats serves just one purpose: Going down. Every detail of this bike is serving the idea of being designed for down. With that approach the FOCUS SAM² became a big travel, slack angle, turn smashing, berm railing, huck hitting, rough riding, gap sending, rock skipping, loam sliding mountain bike.

It is designed for down. But it is not a downhill bike, because we wanted to create a bike that brings a lot of descent-fun but allows everyone to ride it. Oh, and it has a motor… So now you don’t need to think about the ups, only the downs. The new FOCUS SAM² is supported by the Bosch Performance CX e-drive with an integrated, removable 625 Wh battery and now 85 Nm.

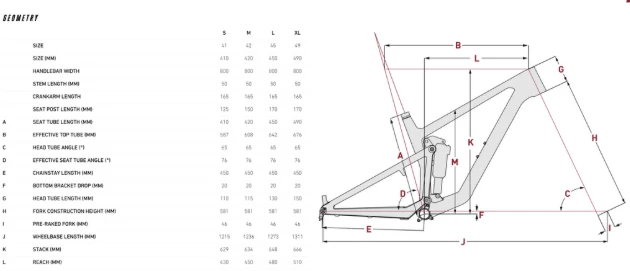

A modern, downhill-oriented geometry, 170 mm travel with F.O.L.D. kinematics and fast 29″ wheels make the FOCUS SAM² the most aggressive e-MTB in the FOCUS line-up. The geometry in detail: 65° head angle, 76° seat tube angle and a 15 mm longer reach in comparison to its predecessor. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions as standard spec.

SAM² 6.7 FEATURES

Powerful and agile bosch performance cx e-drive with purion display and integrated, removable 625 wh battery
170 mm travel with f.O.L.D. Kinematics: rockshox domain suspension fork with 38 mm stanchion and deluxe rear shock
Fully integrated c.I.S. Cable routing with trail-ready sram nx eagle shifting and 220 mm rotors for safe braking

SUPER POWERFUL AND DYNAMIC E-MOTOR

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION

Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

DESIGNED FOR DOWN

A modern, downhill-oriented geometry, 170 mm travel and fast 29″ wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5″ wheels and super short chainstays (430 mm).

Videos

Specifications

FRAME MATERIAL:Aluminium
FRAME:7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148×12 mm thru axle, internal cable routing, post mount 203 mm
FORK:Rock Shox Domain R 29, 110×15 mm, 44 mm rake, 170 mm travel
TRAVEL FORK:170 mm
SHOCK:Rock Shox Deluxe Select, 230/65 mm, hardware: 25.0 x 8.0 mm
MOTOR:Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS:625 Wh
BATTERY AMPERE HOURS:16,7 Ah
DISPLAY:Bosch Purion
SHIFTER:SRAM SX Eagle, 12-speed
REAR DERAILLEUR:SRAM NX Eagle, 12-speed
SPROCKET:SRAM PG-1230 Eagle, 12-speed
CHAIN:SRAM SX Eagle, 12-speed
CRANKSET:Samox EC40 ISIS
BOTTOM BRACKET:Integrated in Drive Unit
TRANSMISSION OF DRIVE:front: 34, rear: 11-50
HANDLEBAR:Handlebar, 800 mm, rise: 35 mm, backsweep: 9°
STEM:FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET:ACROS ZS56/ZS56, FOCUS C.I.S. Integrated
SADDLE:FOCUS Trail SL
SEATPOST:Post Moderne PM-MT171, 31,6mm
BRAKES:SRAM GUIDE T
BRAKE LEVER:SRAM GUIDE T
BRAKE:Disc
RIMS:RODI TRYP30, 30-622
REAR HUB:Novatec D462 Disc, 12×148 mm thru axle
FRONT HUB:Novatec D041, 15×110 mm thru axle
TIRES:MAXXIS MINION DHF, 63-622
GEARS:12
BIKE WEIGHT INCL. BATTERY IN KG.:25,30 kg
SIZE:41,45,49,42
SEATPOST TYPE:Dropper seatpost
