SAM² 6.8 FEATURES

Motor: Mid-drive motor, 250 Watt, 85 NM

Assistance: up to 25 km/h

Assist: 4 levels Eco, Tour, eMTB, Turbo

Battery capacity: 625 Wh

Completely removable, integrated battery
625 Wh battery capacity
Efficient and controlled even on challenging uphill sections
Powerful motor with 85 Nm (max.)
In eMTB mode, the support adjusts automatically to the individual’s riding characteristics depending on the pedal pressure

POWERFUL AND AGILE BOSCH PERFORMANCE CX E-DRIVE WITH PURION DISPLAY AND INTEGRATED, REMOVABLE 625 WH BATTERY

170 MM TRAVEL WITH F.O.L.D. KINEMATICS: ROCKSHOX ZEB SUSPENSION FORK WITH 38 MM STANCHION AND SUPERDELUXE REAR SHOCK

FULLY INTEGRATED C.I.S. CABLE ROUTING WITH CRISP SRAM GX EAGLE SHIFTING AND STRONG CODE BRAKES WITH 220 MM ROTORS

A NEW KIND OF ENDURO WAS THE BIKE WE IMAGINED WHEN WE THOUGHT ABOUT THE NEW FOCUS SAM². THE WHOLE BIKE: DESIGNED FOR DOWN.

WE IMAGINED IT SHARPER, MORE CAPABLE AND DOWNHILL-ORIENTATED, SO WE NEEDED TO GIVE IT A MORE AGGRESSIVE GEOMETRY.

DESIGNED FOR DOWN

SUPER POWERFUL AND DYNAMIC E-MOTOR

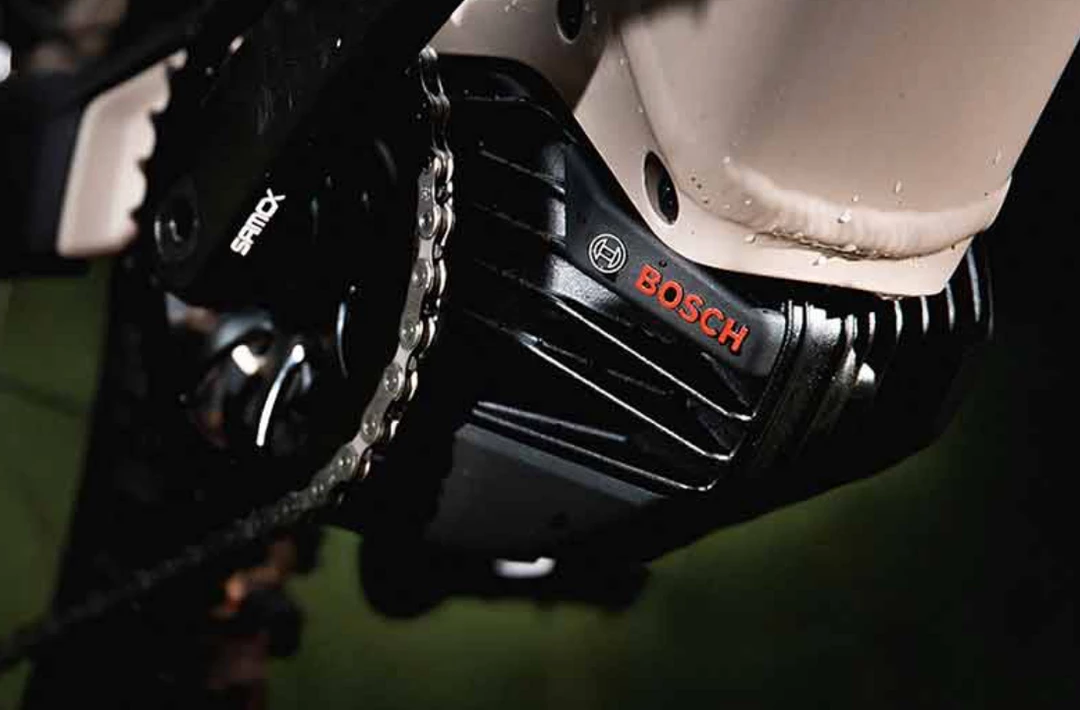

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION

Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

A modern, downhill-oriented geometry, 170 mm travel and fast 29″ wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5″ wheels and super short chainstays (430 mm).

General Info

I want a different shock. What do I need to take into account?
Our advice is to use the specced shock because we optimised it for the F.O.L.D. chassis and the bike’s geometry. As there are many shock models in the market, we cannot guarantee that another will one will work.

Can I change between 1by and 2by? What is 1by and 2by?
1by and 2by means that the bike is either equipped with two or only one chainring in the front. As the Bosch mid motor just allows one chainring, our SAM² is 1by only and it is not possible to change to 2by.

Does the SAM² have a chain stay protector?
Yes, it comes mounted to the bike. If it is damaged or worn out, you can exchange it.

What to do, if I change from 29″ to 27,5″ or the other way around?

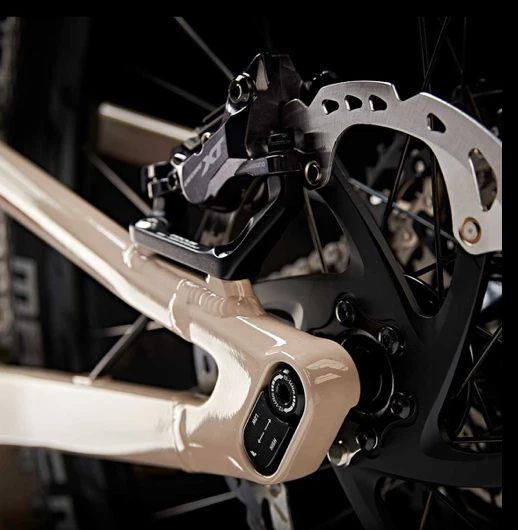

The wheel change is possible with our FLIP CHIP. It has a low and a high position and likethat changes the positioning of the wheel in the frame. You can even ride a drifter version with a 29″ front and 27.5″ rear wheel. For an exchange of the wheels, it is necessary to shorten the chain and use a different postmount adapter for the brakes. Ask your local dealer if you need help. Additonally your dealer has to adapt the wheel size in the software of the Bosch e-drive system.

Can I attach a bike trailer?
As there is no test process yet, we can not give another statement than no right now. We are working on it.

How do I get my battery out?
You need your key for the battery lock. Open it and then you can easily take out the battery. The cover is attached to the battery and cannot be removed from the battery. Be careful when taking it out and don’t drop it.

Can I change the battery to a smaller/ larger battery?
As the SAM² has already the biggest battery that Bosch offers, you cannot get more capacity. For smaller batteries a different mount is needed within the frame. That is why you cannot use a smaller one.

How far can I ride with the SAM²?
There is no definite answer to that. Different factors have an impact on your range: Your weight, your luggage, the terrain you ride, which support mode you prefer and and even the temperature influence how long your battery will last. There is a range assistant by Bosch that can give you an idea:Bosch range assistant Or you check out different scenarios here: Bosch Performance CX

Can I tune my e-bike?
No, that’s not possible and even if it would, we do not recommend it.

Can I add a second battery?
No, that is not possible.

Can I tune my e-bike?
No, that’s not possible and even if it would, we do not recommend it.

What is the maximum rotor dimension?
You can use a maximum rotor dimension of 220 mm.

Which groupsets do fit? With what dimensions?
The largest chainring you can use has 36 teeth, the biggest cassette up to 52 teeth.

What is the maximum tire width?
For the 29″ wheels it is 2.6″ or 66 mm.

What is the maximum system weight?
The total weight limit is 120 kg. It includes the full system weight of bike, rider and all equipment.

Specs

FRAME:7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148×12 mm thru axle, internal cable routing, post mount 203 mm
FRAME MATERIAL:Aluminium
FORK:Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110×15 mm, 44 mm rake, 170 mm travel
TRAVEL FORK:170 mm
SHOCK:Rock Shox Super Deluxe Select+, 230/65 mm, hardware: 25,0 x 8 mm MOTOR:Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS:625 Wh
BATTERY AMPERE HOURS:16,7 Ah
DISPLAY:Bosch Purion
SHIFTER:SRAM GX Eagle
REAR DERAILLEUR:SRAM GX Eagle, 12-speed
SPROCKET:SRAM PG-1230 Eagle, 12-speed
CHAIN:SRAM NX Eagle
CRANKSET:Samox EC40 ISIS
BOTTOM BRACKET: Integrated in Drive Unit
TRANSMISSION OF DRIVE: front: 34, rear: 10-51
HANDLEBAR: FOCUS Trail, aluminium, riserbar, 780mm, rise: 30mm, backsweep: 9°

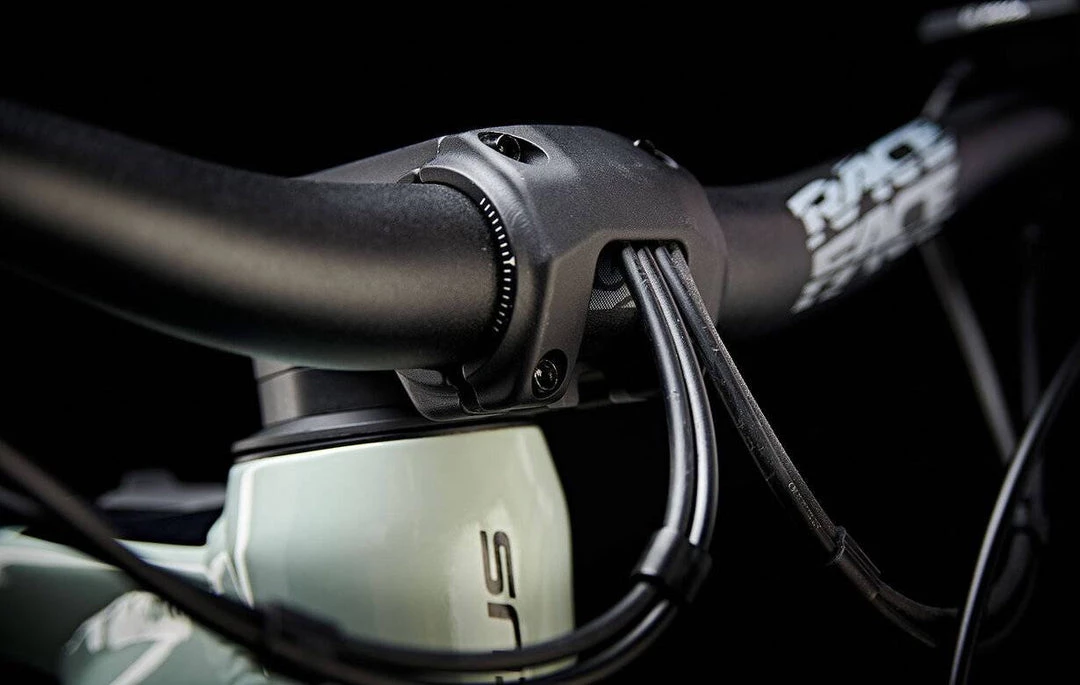

STEM: FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
GRIPS:FOCUS Locker SL
HEADSET: ACROS ZS56/ZS56, FOCUS C.I.S. Integrated
SADDLE:FOCUS Trail SL
SEATPOST:Post Moderne PM-MT171, 31,6mm
BRAKES: SRAM Code R
BRAKE LEVER: SRAM Code R
BRAKE: Disc
RIMS: RODI TRYP30, 30-622
REAR HUB:Novatec D462 Disc, 12×148 mm thru axle
FRONT HUB:Novatec D041, 15×110 mm thru axle
FRONT TIRE:Schwalbe Magic Mary 2.6 Super Trail Soft
REAR TIRE:Schwalbe Magic Mary 2.6 Super Gravity Soft
GEARS: 12
BIKE WEIGHT INCL. BATTERY IN KG:25,80 kg

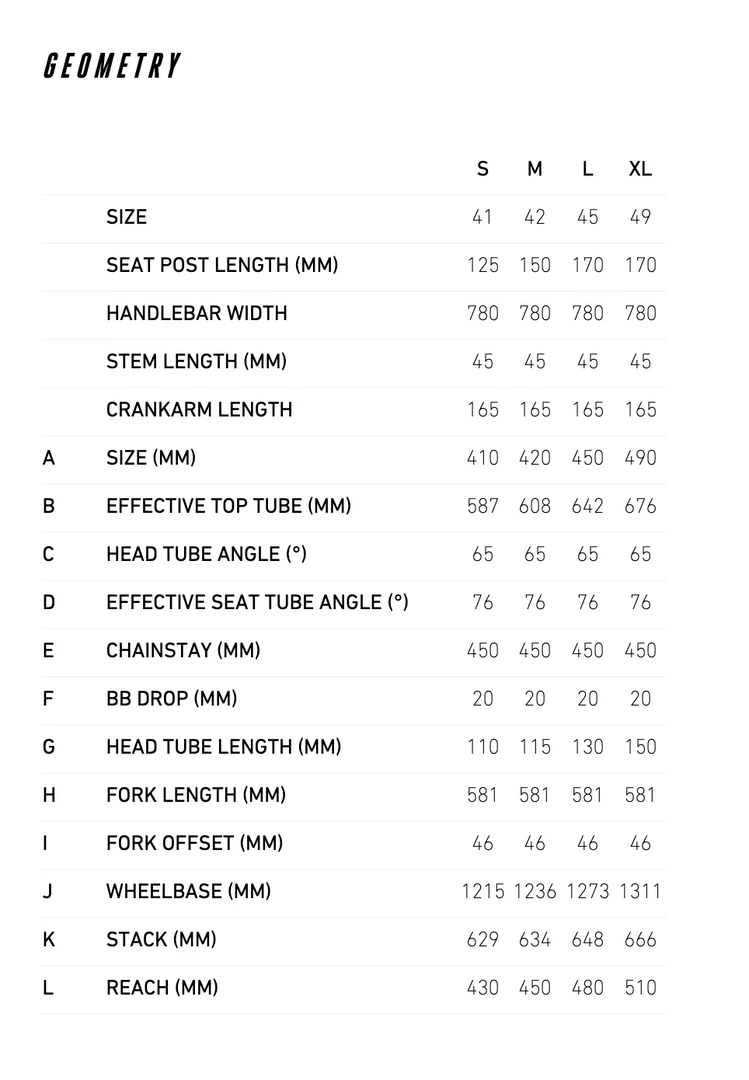

SIZE:41,42,45,49
