Please note our NCM ebikes are professionally assembled and you don’t need to be at home to receive it, then build it yourself. You also get the first free service on the bike which is worth $50. We also customize the bike in ways you won’t be able to do if you buy direct from the distributors. When you have a problem with the bike you actually have a shop you can come to to get assistance unlike a warehouse in Melbourne that can do very little to help you. Buy from a real physical shop rather than online. We have the parts and skilled staff to fix the bike when it has any electrical problems.

The Bike

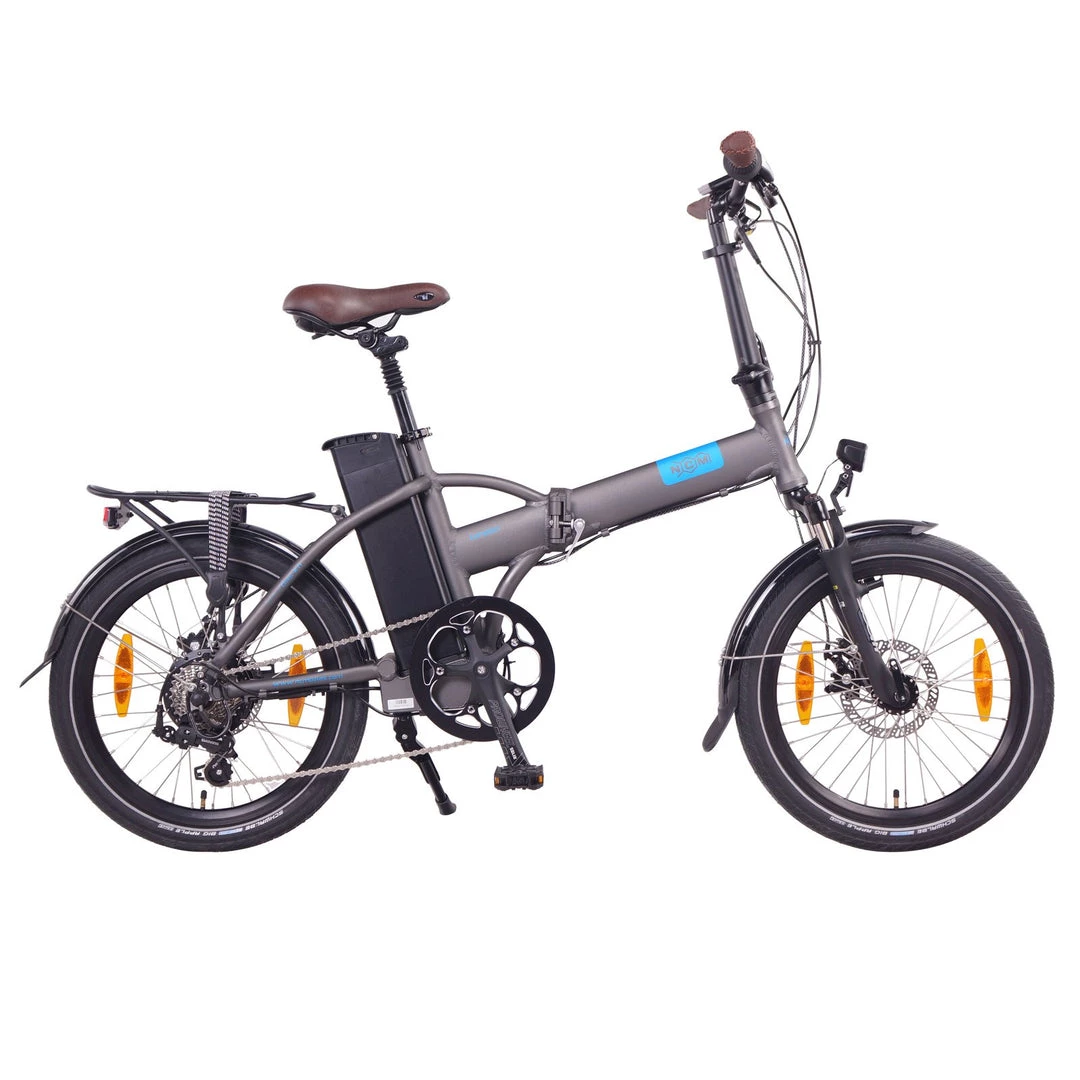

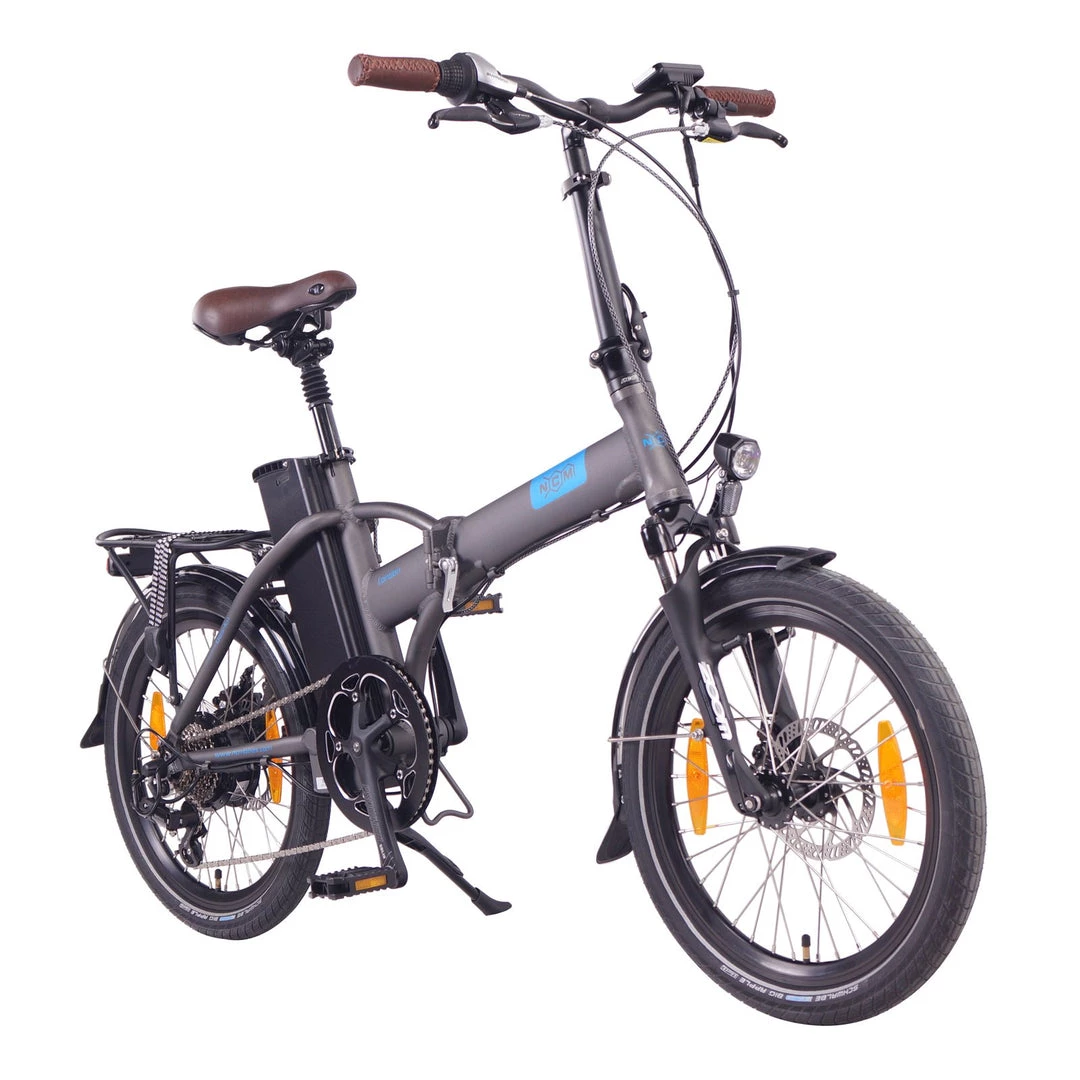

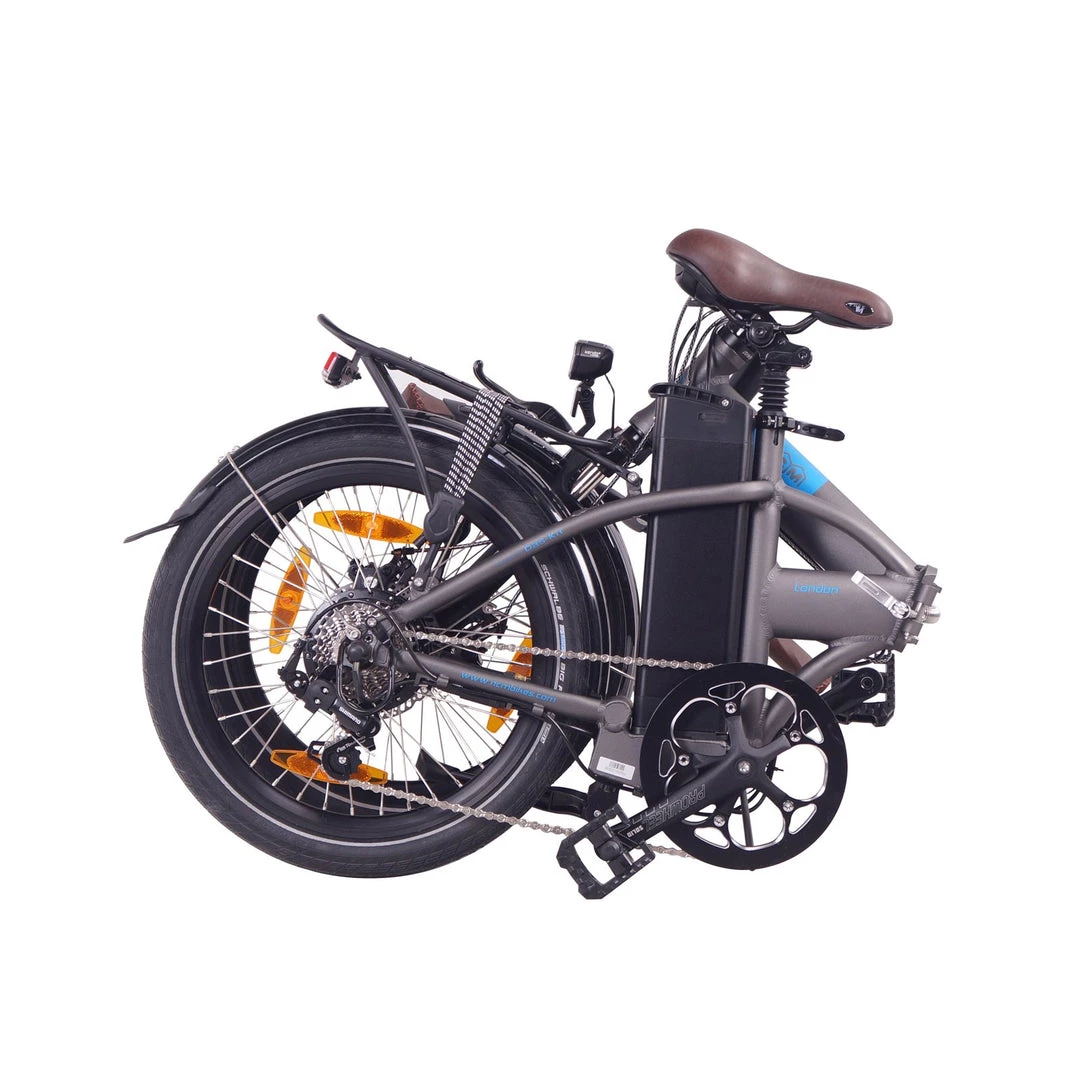

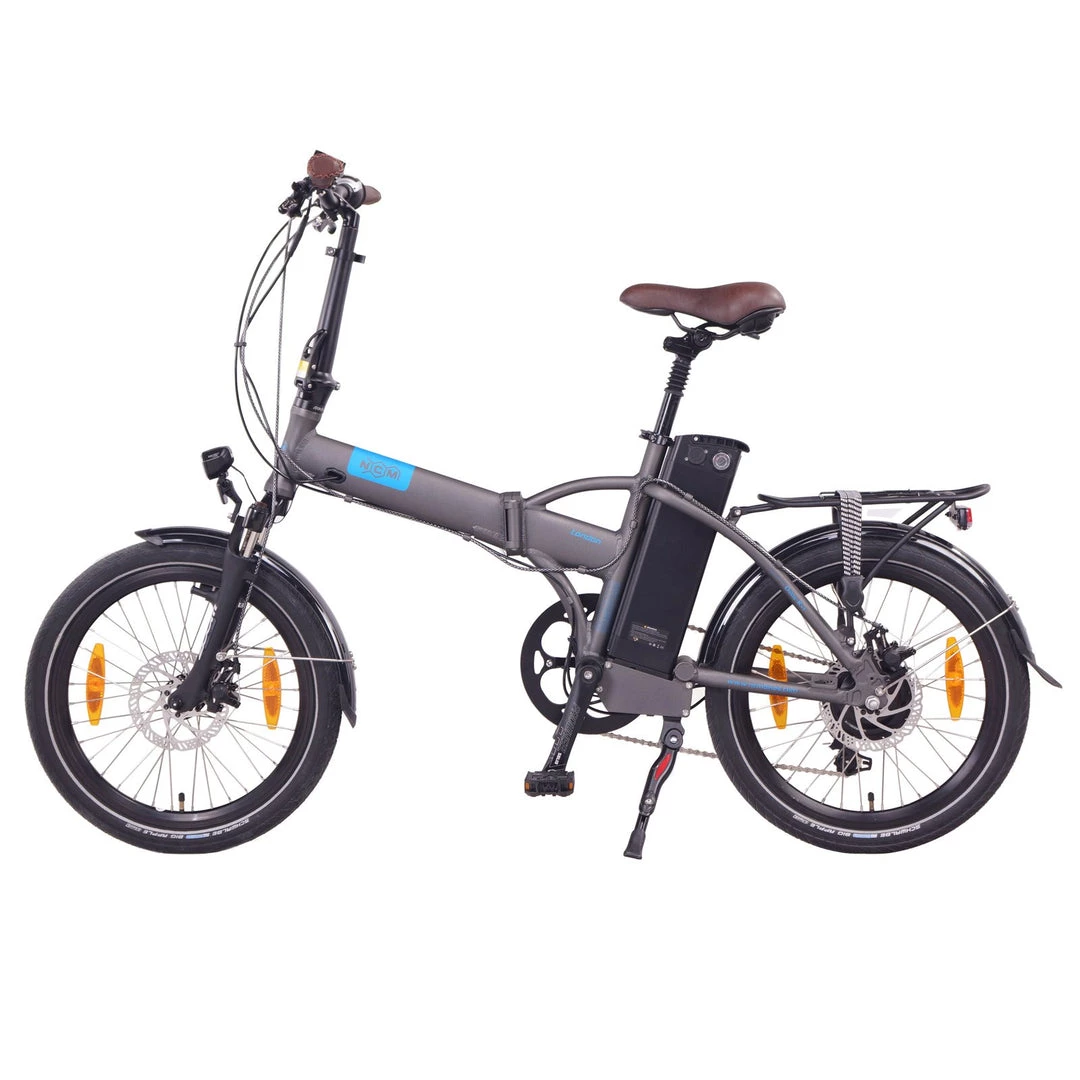

The Leon NCM London is a highly versatile folding E-bike as it can be compacted without tools for even the smallest storage spaces with its folding frame, stem, pedals and saddle.

Take it with you when you go on vacation, ride it to your office and park it right next to your chair or store it at home beside the shoe rack with no inconvenience.

The step-through frame makes repeated mounting and dismounting effortless for when you’re shopping or running errands, and a unique feature of the electronics system allows the motor to run at 4mph without the need for pedalling—perfect for navigating through heavy foot traffic or riding casually alongside someone who is walking.

Features

Foldable handlebar stem

Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Foldable bicycle handlebar stem
All important controls easily accessible
supplied with 36V to deliver a high output power
over 500Wh capacity for a long distance
reach up to 110km (depending on the conditions)
Battery behind seat tube for a better balance
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

Safe braking performance

Front Brake:

Reliable mechanical disc brake system. The 160 mm Tektro brake disc ensures powerful and safe braking at all speeds.

Rear Brake:

Reliable mechanical disc brake system from Tektro. This brake system ensures powerful and safe braking at all speeds.

DAS-KIT Drive System

Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use.

The additional power can be individually controlled via six support levels. It is protected against dirt and splash water.

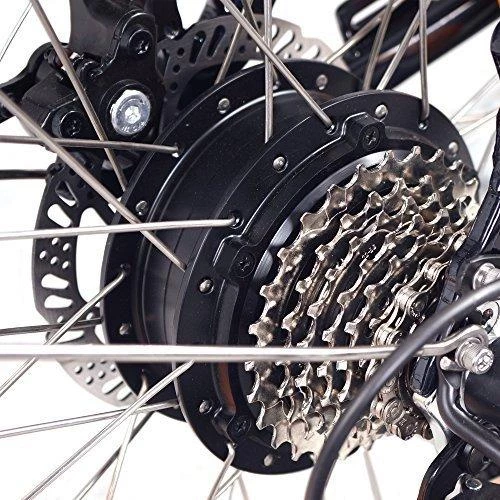

The rear engine delivers a full torque up to 35 Nm with 250W rated power and 36V voltage.

A large display shows all necessary settings.

6 support levels and a pushing aid of up to 6 km/h are adjustable.

The display’s control buttons are deliberately placed on the left side – close to the left hand – so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.

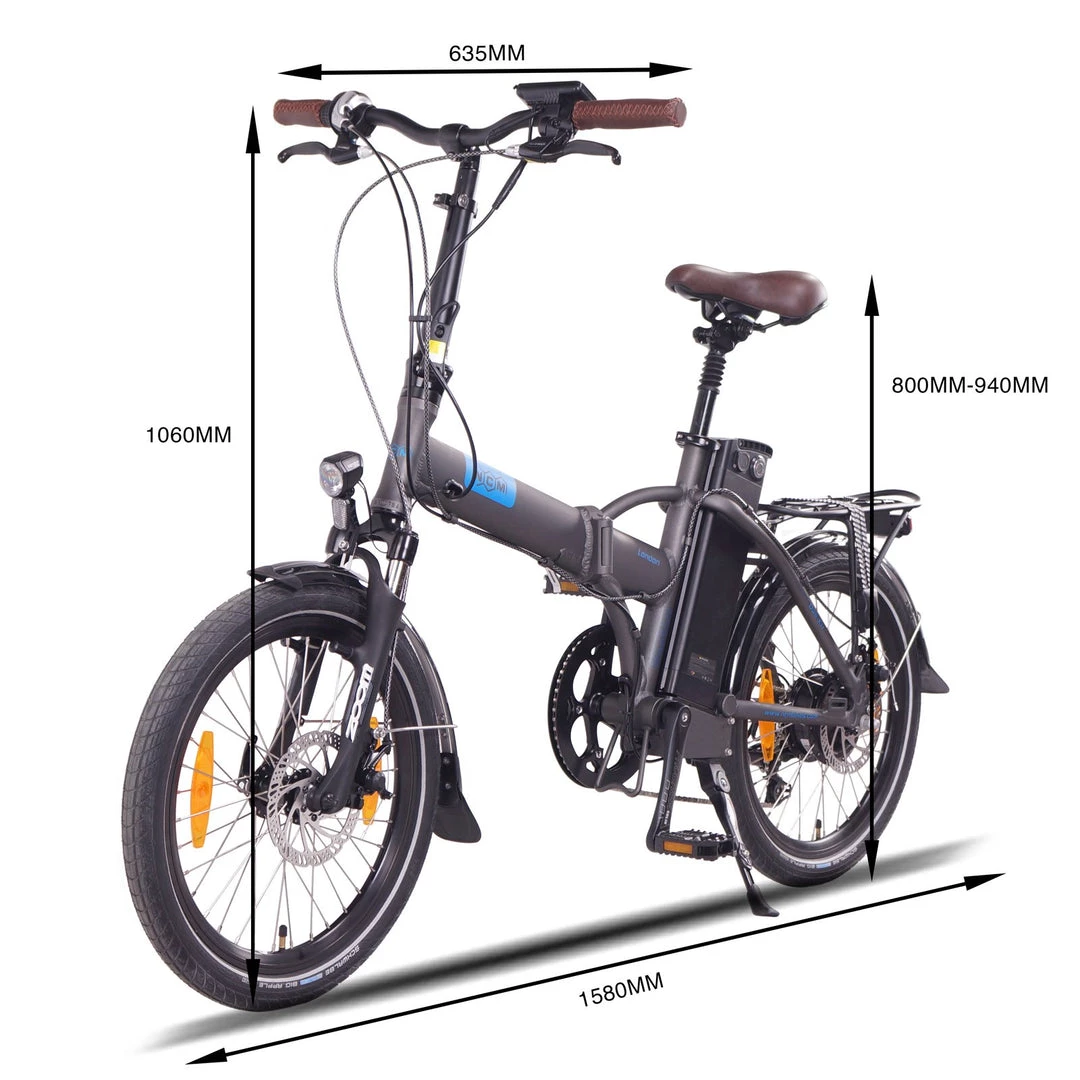

Specifications

General Information

Weight: 25kg (55lbs)
Type: Folding Wheel size: 20”
Load capacity: 125kg (264lbs)
Maximum speed: 25km/h

Electric parts

Display: Das-Kit, L6B, LCD, 6 Levels, 6km/h walk mode
Controller: Das-Kit, CT4, 36V 14A
Motor: Das-Kit, R2S Rear-drive motor, 36V 250W, 25km/h
Battery: 36V 15AH, with USB port Average range: 40-110km depending on assistance level
Front/Rear Light: Spanninga, KENDO, 36V, 20 Lux/ Spanninga, SOLO

Bike parts

Frame: Alu. 6061, 20″*380MM
Fork: Zoom, CH190
Brake Levers: Tektro, with left brake sensor
Brakes F/R:Tektro Disc Brakes,MD-280
Crank: Prowheel, SOLID-252AA9

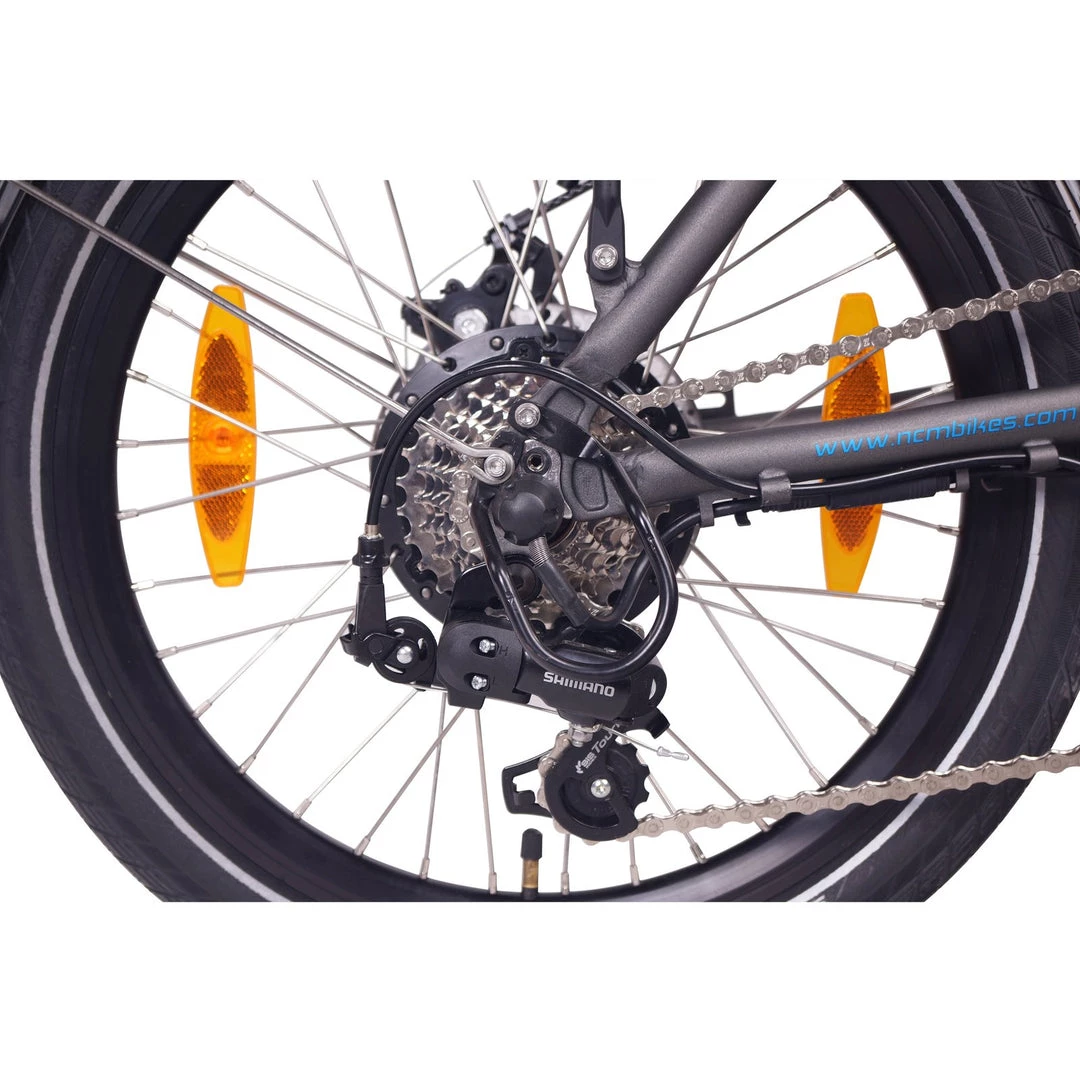

Rear Derailleur: Shimano, Tourney 7-speed, ARDFT35D
Tyres: Schwalbe, Big Apple,20″*2.0
Saddle: Selle Royal, Freeway, Brown with Gel
Seat Post: CL, PB-523, with suspension, 27.2*350mm
Grips: Selle Royal, brown synthetic leather
Pedals: Wellgo, foldable

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
