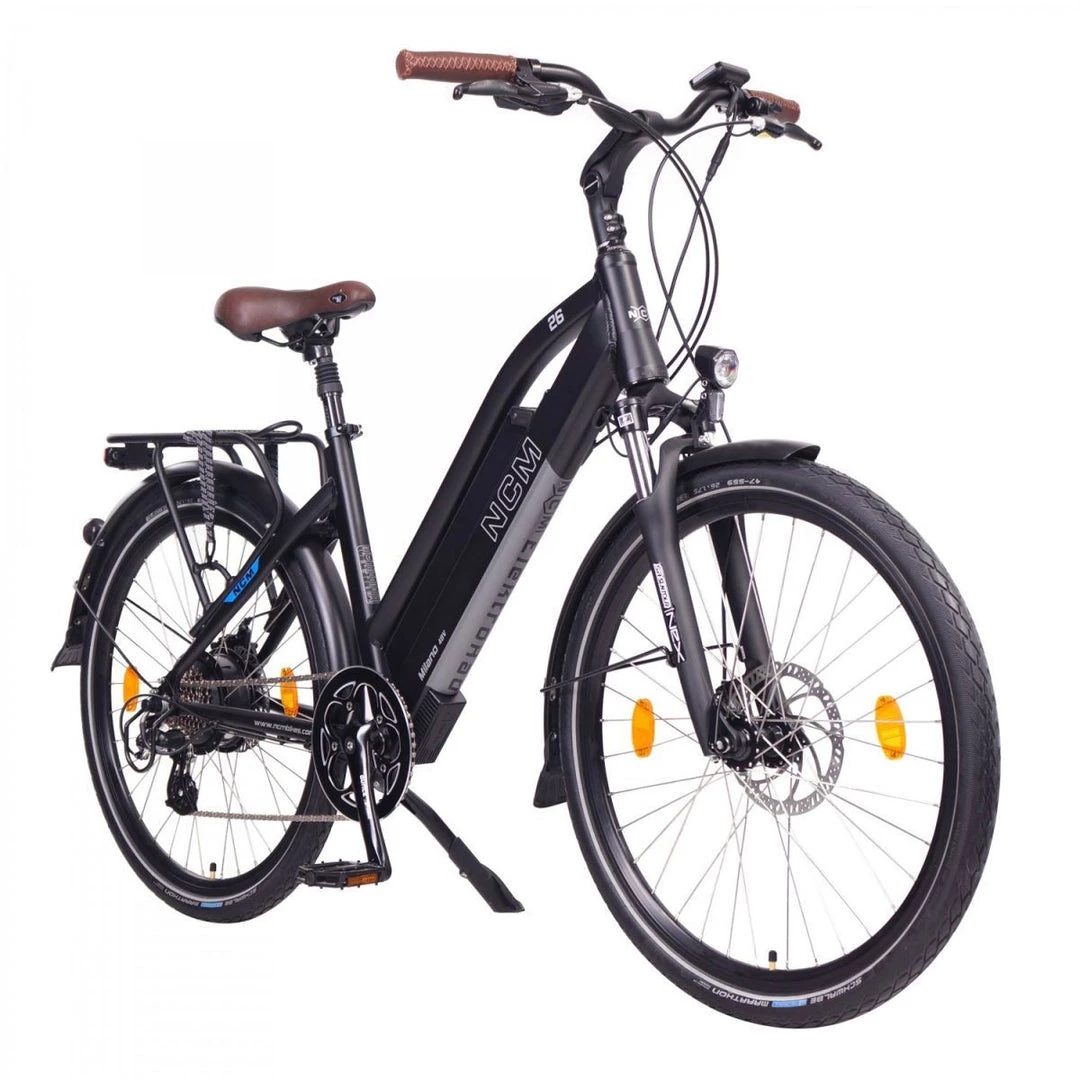

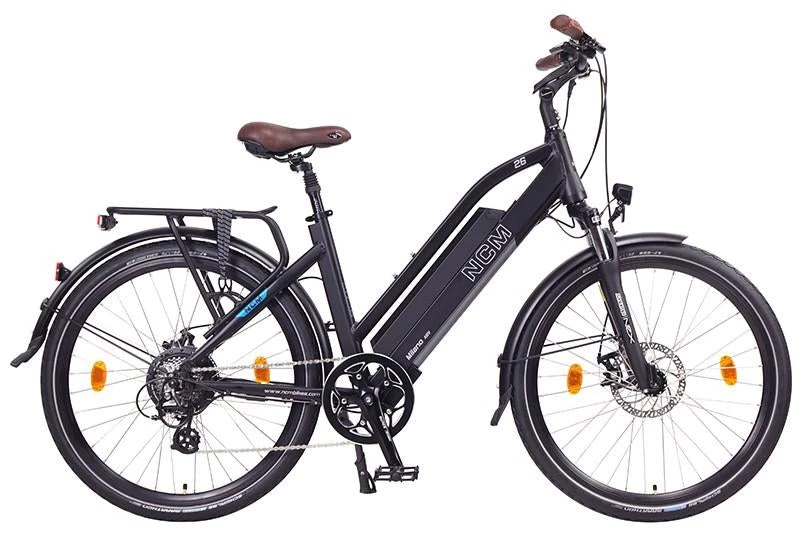

Leon NCM Milano Trekking Electric Bike

Please note our NCM ebikes are professionally assembled and you don’t need to be at home to receive it, then build it yourself. You also get the first free service on the bike which is worth $50. We also customize the bike in ways you won’t be able to do if you buy direct from the distributors. When you have a problem with the bike you actually have a shop you can come to to get assistance unlike a warehouse in Melbourne that can do very little to help you. Buy from a real physical shop rather than online. We have the parts and skilled staff to fix the bike when it has any electrical problems.

Our new Leon NCM mountain e-bikes are design for the budget conscious who still want the best value high torque ebike at an affordable price..

Powered by the proven Bafang 250W rear hub motor. Bafang have been a market leader for many years for producing reliable and efficient motor.

NCM seem to have nailed it with their range of affordable e-bikes. Build quality is above average for an e-bike of this price. The frame is neatly welded and the paintwork finish looks durable and long lasting. This bike also looks great! The colour coded battery fits neatly into the frame, giving the overall look of a more expensive e-bike.

This bike offers an incredibly comfortable ride; short or long distances.

Specification

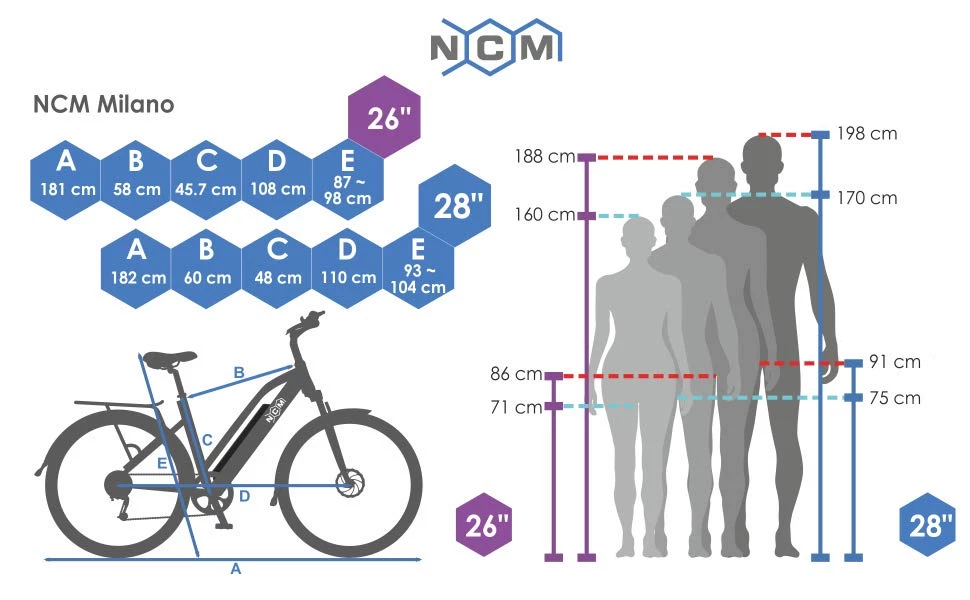

Frame	Alu. 6061, 26″*457MM /28″*480MM
Handelbar	Promax MA579 adjustable
Fork	Suntour, NEX 26” / 28”
Brake Levers	Tektro, left with brake sensor
Brakes F/R	Tektro Mechanical Disc Brakes, MD-M280
Chain derailleur	Shimano, Altus M310, 7 speed
Crank set	Prowheel, OUNCE-248AC, 48T
Gear shift	Shimano, Altus M310, 7 speed
Pinion	7-speed screw ring, 14-28T

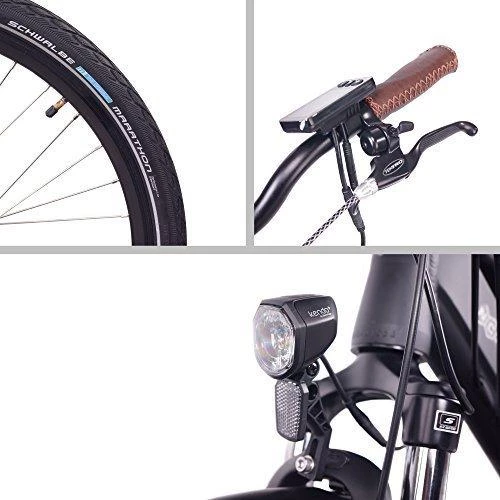

Tyre	Schwalbe Marathon 26″*1.75 / 28″*1.5 700C black

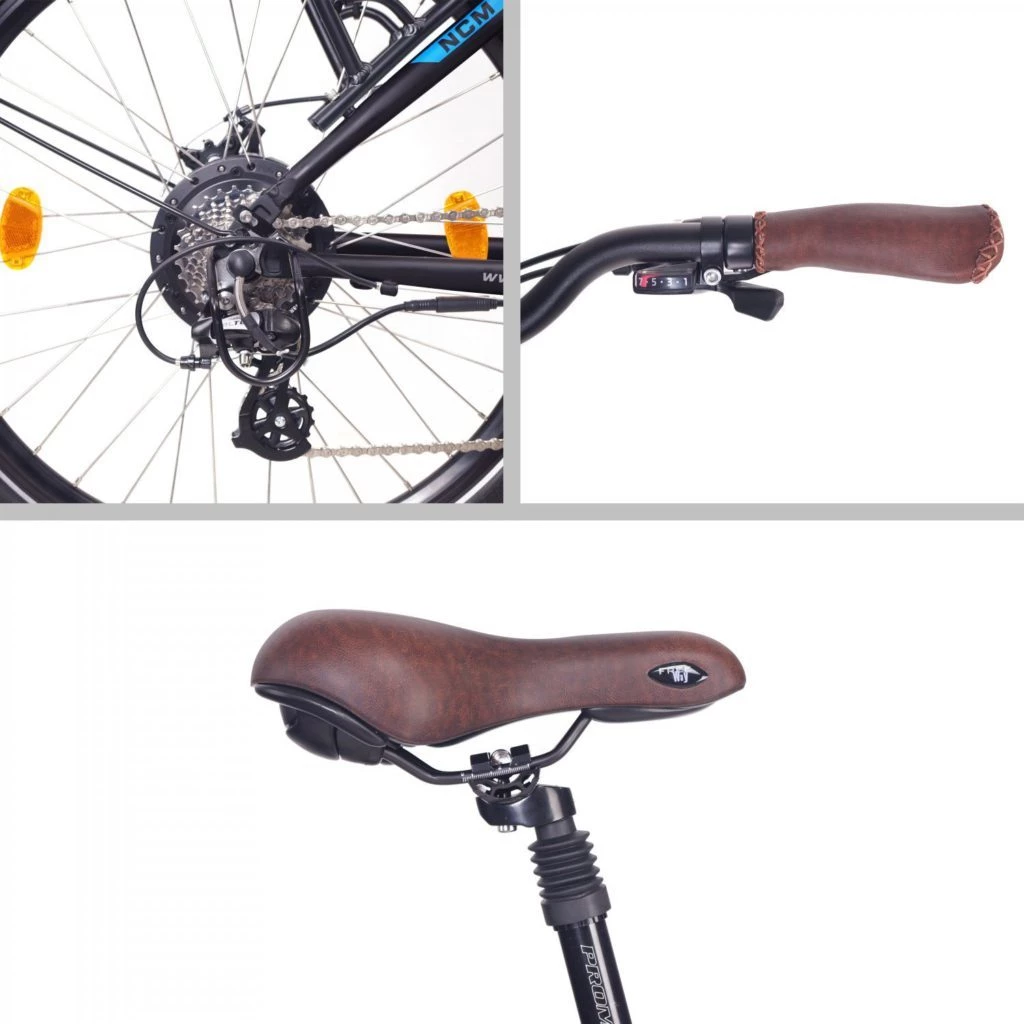

Saddle	Selle Royal, gel saddle, brown (imitation leather)
Seatpost	Promax, SP-884, with suspension, 27.2*300MM
Handles	Selle Royal, brown (imitation leather)
Pedals	Wellgo, B087, black
Wheel size	26” / 28″
Load capacity	Max. 125kg
Warranty electrics	1 year (battery, motor, controller, display, lights)
Warranty Frame	2 year



Electrics

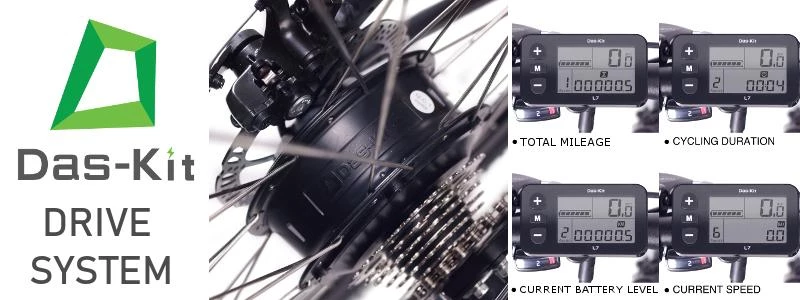

Motor	Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
Controller	Das-Kit, CT5-I5, 48V 15A
Charger	48V 2A included (round plug) DC482AU

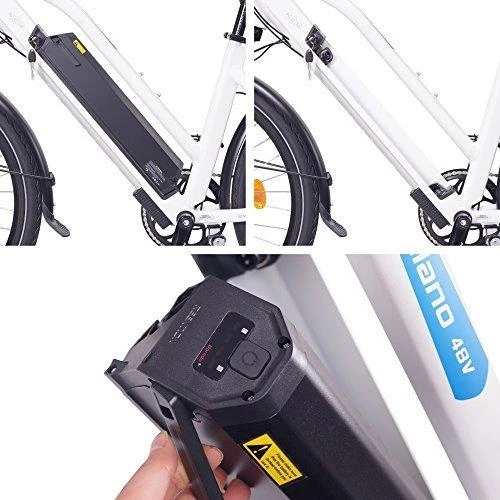

Battery	DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
Display	LCD Das-Kit L7 display with many functions, 6km/h walk assist
Front/Rear Light	Spanninga, Kendo, 48V, 30 Lux Spanninga, / Solo, with 2xAA batteries
