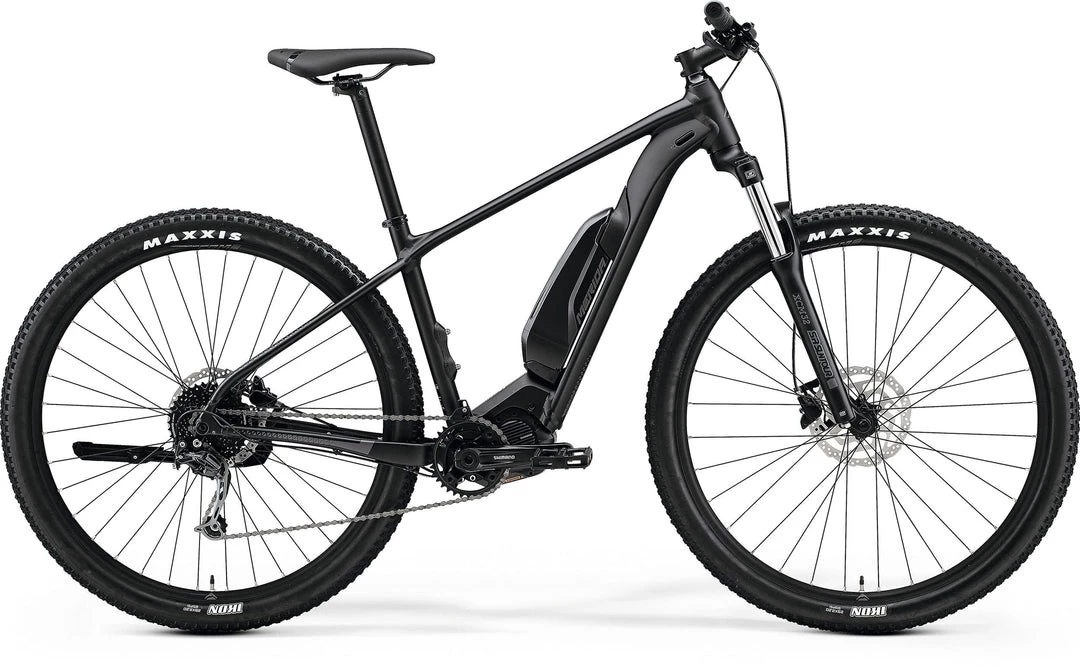

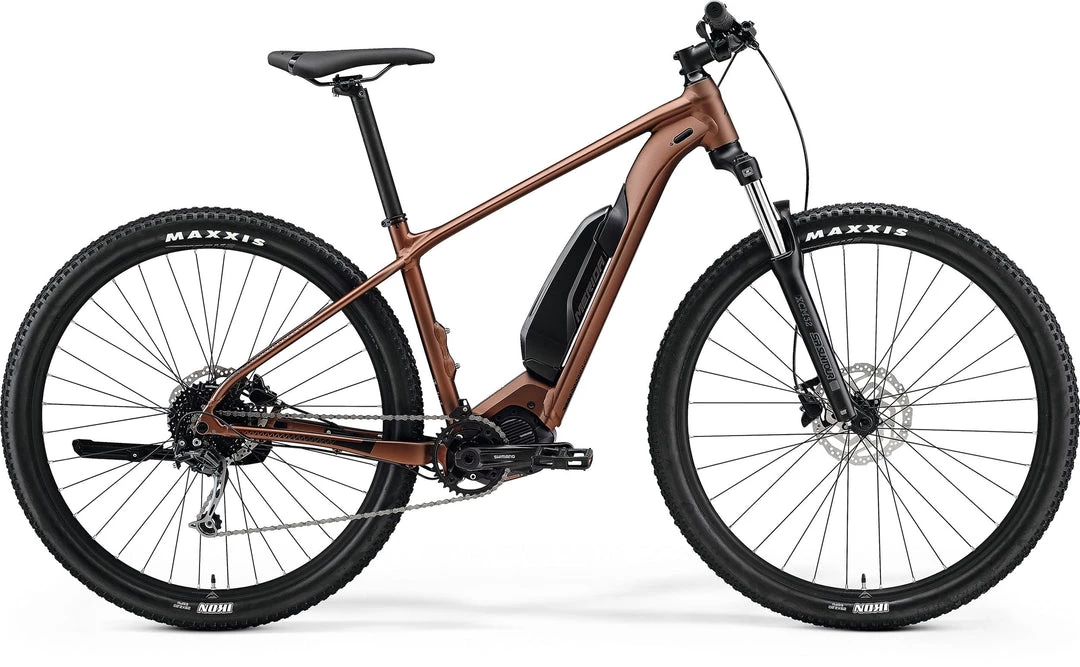

The eBIG.NINE 300 SE is a bike that gives you more options. The option to explore further than ever before, thanks the assistance of a Shimano’s value for money E7000 drive unit and long lasting 504 Wh battery. The option to commute to work, without arriving bedraggled or worried about being too tired to make it home. The option to push further with more confidence, thanks to mountain bike geometry, a suspension fork, grippy tyres and powerful brakes. It’s a world of options, ready for you to take them.

Arguably the most versatile e-bike in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure activity. It’s a bike that can handle serious off-road riding but can also handle the commute to work with ease – especially if you want to have some fun on the way. Features a powerful and smooth Shimano drive units that will power you up any hill. Ready to be equipped with mudguards and even a side stand , the eBIG.NINE will help you make the most of any situation.

Lightweight aluminium frame with 29er wheels
Value for money Shimano E7000 assistance
Long-lasting 504 Wh battery
Confidence inspiring mountain bike handling
Versatile enough for the trail or the commute
Comfort and control enhancing suspension fork

Technologies

HFS – HYDRO FORMING SYSTEM

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.

PROLITE 66 TRIPLE BUTTED ALUMINUM

Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.

X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.

INTERNAL CABLE ROUTING
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

K-MOUNT

Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

F-MOUNT

‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.

C-MOUNT

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

CASTING MOTOR BRACKET

Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.

Specs

FRAME	eBIG.NINE LITE; MAT aluminium;max. WHS 29×2.20″ without fender max./ 29″x2.00″ with fender max. WHS; 148×12 AST; external
FORK	Suntour XCM32 DS; Coil; 100mm; Tapered; 47mm fork offset; 29×2.4″ max WHS
DRIVE UNIT	Shimano E7000; 60Nm
BATTERY	Shimano E8010; 504Wh
BATTERY CHARGER	Shimano EC-E6002; 2A charging current
DISPLAY	Shimano SC-E5000A
REAR DERAILLEUR	Shimano Alivio M3100; SGS
SHIFTERS	Shimano XT RDM8100 Shadow+ 12
BRAKE – FRONT	Shimano MT-200; 2 piston
BRAKE – REAR	Shimano MT-200; 2 piston
ROTOR – FRONT	Shimano RT10; 180 mm
ROTOR – REAR	Shimano RT10; 180 mm
CHAINWHEEL	Shimano CRE70-B; 34 ATC
CRANK/SIZE	Shimano FC-E8000; 165 mm for all sizes
CHAIN	KMC e9S
CASSETTE	Shimano HG200; 11-36 ATC; 9 GER
PEDALS	VP VPE-537
HANDLEBAR	MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB
HANDLEBAR STEM	MERIDA EXPERT CC; MAT aluminium; 31.8 DSH; 6 ASD
STEM LENGTH	80 mm-M, 90 mm-L, 100 mm-XL
SEAT POST	MERIDA EXPERT; MAT aluminium; 30.9 DSP; 15 SSB
SADDLE	MERIDA COMP SL; V-mount
HUB – FRONT	Shimano MT400; 110×15 WHF; 32 SPH; Centerlock
HUB – REAR	Shimano MT400-B; 148×12 WHR; 36 SPH; Centerlock
AXLE – REAR	MERIDA COMP TR; including removeable lever, 6/4mm allen key
RIMS	MERIDA COMP CC; 20 IWR; MAT aluminium
TYRES	Maxxis Ikon; 29×2.2″; kevlar bead
KICKSTAND	CL-KA98, 29″
SPOKES	Black stainless
LIGHT FRONT	CG-119PG-BLACK(1)
LIGHT REAR	CG-404RG-BLK
MAX RIDER WEIGHT	140kg
