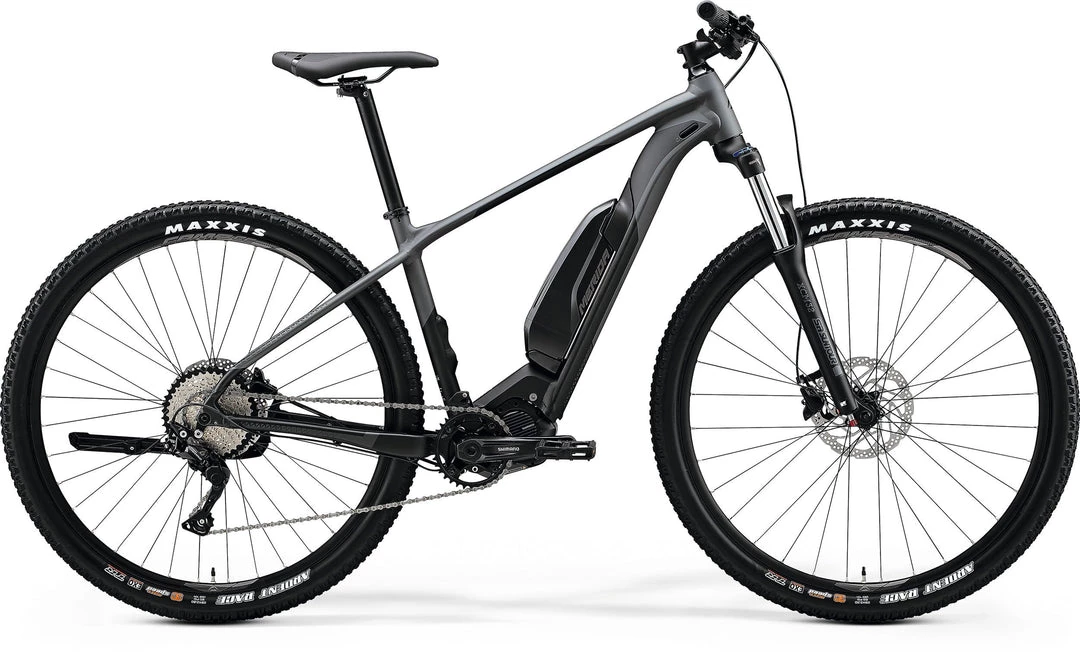

HFS Hydroforming prolite 66butted aluminium 29er hardtail frame with a sporty yet comfortable geometry. “smart entry” cable routing for rattle free running. The frame features the casting motor bracket creating an integrated appearance of the motor into the frame as well as providing an extremely strong connection between frame and motor. Comes with integrated fixings for mudguards and kickstand.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 1ab122c425a9dfd568ad49f69d4b58f6

X-TAPER HEADTUBE 2017
The best of two worlds: externally shaped head tube with bigger diameter at the bottom and weight saving smaller diameter at the top. ‘X-Taper Headtubes’ always come with tapered forks or correct adapters fitted. Result: superb stiffness and precise steering even in the toughest conditions without increasing the weight of the frame unnecessarily.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 46b7bc6e404c9b1eed53add28f5b0fc1

12-148 THRU-AXLE ‘Boost’
Due to the widening of the hub spacing by 6mm, the spoke angles become flatter resulting in a stiffer and stronger wheel. In particular on 29er and 650b+ wheels, and paired with the stiffness increasing attributes of a through axle, this is hugely desirable. Besides that, the wider hubs and cranks with wider bottom brackets push the chain line further outwards and enable extra short chain stays for a more agile geometry.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture eec84a4cfb4b4dfaa79af4254ebc9c95

SMART ENTRY 2017
Internal cable routing perfected: Up to this point, the routing of cables inside frame tubes often had the unwanted side effect that they were able to move and produce noise. Our ‘Smart Entry’ allows the cables to be clamped under tension, resulting in rattle free cables even when it is getting rough. All cable inlets are completely interchangeable to deal with any kind of set up; Di2, hydraulic hoses, brake and gear cable housings etc.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 5f9e3a73816076d6a27c877fcc449659

DI2 READY 2017
Like WorldTour pro riders, more and more technology-loving road riders trust in Shimano’s electronic Di2 shifting system, which is characterized by high reliability and efficient, effortless operability. Bikes/frames with the symbol “Di2 Ready” are optimally prepared for the installation of this technology – especially with a battery mounting possibility below the chain stay or in the seat post.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 70b3f6f398f2379e69d13bf8367f9de4

C-S POST MOUNT DISC 2017
“Chain Stay Post Mount Disc” – this technology is the result of three findings. First, a brake mount positioned within the frame triangle optimally protects the brake from external influences. Second, the caliper is supported by the chain stay and is therefore able to distribute the occurring physical forces in an ideal way. Third, internally routed cables can reach the brake neatly from the chain stay.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 3cb96a74af5cffafeb7483dc5ac54bb5

INTERNAL CABLE 2017
Elaborately shaped frame designs with special inlets and outlets for internally routed brake and/or shifter cables. “Clean” in a double sense: The bike looks uncluttered while the cables are protected effectively from moisture and dirt.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 501c024e7a809e15c421605a498b6d62

SMOOTH-WELDING 2017
Besides top functionality, MERIDA frames also have to offer a convincing visual appearance. The second welding process during Smooth Welding evens the connecting welding seam – an elaborate concept for a brilliant look without compromises to stability.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 871e5ce2decdf3df433cc5b7933448ea

PROLITE 66 TRIPLE BUTTED ALUMINUM 2017
MERIDA’s premium alloy represents extremely durable and light aluminium of high-end quality. Triple-butted wall thicknesses result not only in exciting frame designs: First of all, they offer an optimum Stiffness-to-Weight (STW) ratio.

Merida EBIG.NINE 300SE Hard Tail 2021 Step Over -Canberra Electric Bikes Sales small feature picture 392b06ffae7ca6da51371e3c0478124e

HFS – HYDRO FORMING SYSTEM 2017
The mechanical TFS process works from the outside to the inside. In contrast, the complex Hydroforming concept shapes the frame by pushing hot oil under hydraulic high pressure from the inside to the outside. Material: Prolite 66 aluminium.

Video

Specs

01. FRAME	eBIG.NINE LITE; MAT aluminium; 29″ WHS; 148×12 AST; external; max. 504 Wh
02. SIZES	M-L-XL
03. FORK	Suntour XCM32 DS; Coil; 100mm; Tapered; 47mm fork offset
04. DRIVE UNIT	Shimano E7000; 60Nm
05. BATTERY	Shimano E8010; 504Wh
06. BATTERY CHARGER	Shimano EC-E6002; 2A
07. DISPLAY	Shimano SC-E5000
08. REAR DERAILLEUR	Shimano Deore RDM592 9
09. SHIFTERS	Shimano Alivio M3100 9
10. BRAKE-FRONT	Shimano MT-200; 2 piston
11. BRAKE-REAR	Shimano MT-200; 2 piston
12. ROTOR-FRONT	Shimano RT10; 180 mm
13. ROTOR-REAR	Shimano RT10; 180 mm
14. CHAINWHEEL	Shimano CRE70-B; 34 ATC
15. CRANK/SIZE	Shimano FC-E8000; 165 mm for all sizes
16. CHAIN	Shimano HG53
17. CASSETTE	Shimano HG200; 11-36 ATC; 9 Speed
18. PEDALS	VP; VPE-537
19. HANDLEBAR	MERIDA Expert CC; MAT aluminium; 720 WHB; 10 RHB
20. HANDLEBAR STEM	MERIDA Expert CC; MAT aluminium; 31.8 DSH; 6 ASD
21. STEM LENGTH	80mm-M, 90mm-L, 100mm-XL
22. SEAT POST	MERIDA Expert; MAT aluminium; 30.9 DSP; 15 SSB
23. SADDLE	MERIDA Comp CC; V-mount
24. HUB-FRONT	Shimano MT400; 110×15 WHF; 32 SPH; Centerlock
25. HUB-REAR	Shimano MT400-B; 148×12 WHR; 36 SPH; Centerlock
26. AXLE-REAR	MERIDA COMP TR; including removeable lever, 6/4mm allen key
27. RIMS	MERIDA COMP CC; 20 IWR; MAT aluminium
28. TYRES	Maxxis Ikon; 29×2.2″; kevlar bead
31. KICKSTAND	CL-KA98, 29″.
