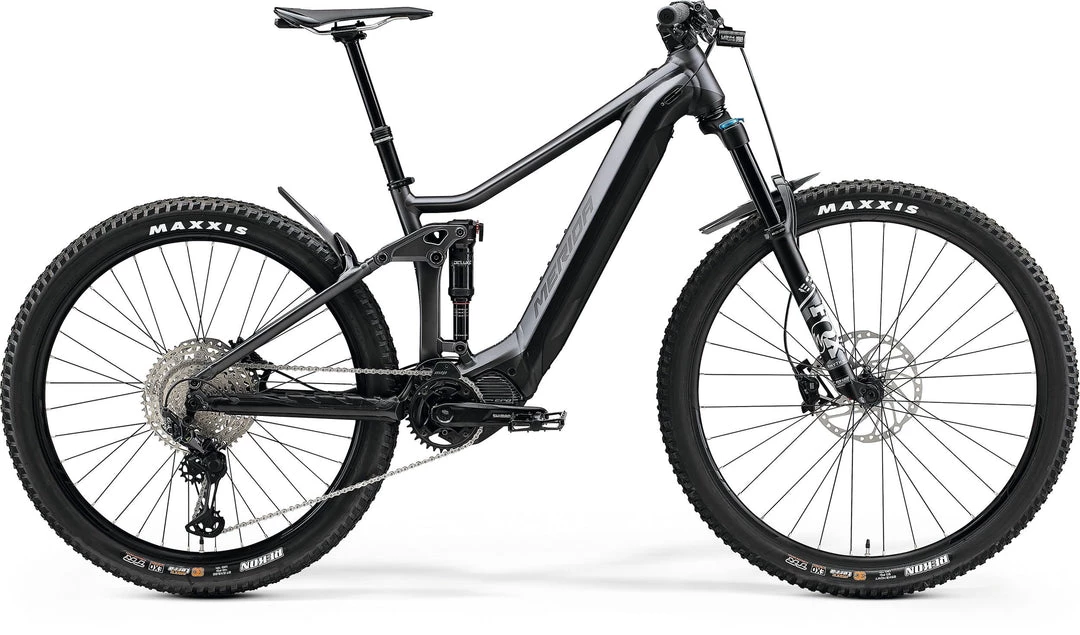

Merida Eone Forty 700 EMTB 2021 Mountain Ebikes

Original price was: $455.00.Current price is: $94.99.

The quality you expect, the service you deserve.

Multiple safe payment methods

Your questions, our prompt answers.

100% High-Quality Guarantee

Serious change; The much-loved Merida eONe-Forty has the upgrade you have been asking for with the new powerful Shimano EP8 motor has advanced even further.

If you are looking for top descending performance that doesn’t sacrifice the ‘all day’ riding abilities, then our Shimano STePS EP8 powered eONE-FORTY with integrated battery technology is the perfect e-full suspension bike for you. A modern mountain bike geometry, which is inspired by its bigger brother, the eONE-SIXTY, but with an even lower stand over height, steeper seat angle and slightly steeper head angle, combined with a balanced reach and a low bottom bracket, gives the bike maximum agility and fantastic climbing characteristics. Exactly what you are looking for in an all-day full suspension e-MTB.

SHIMANO’S EP8

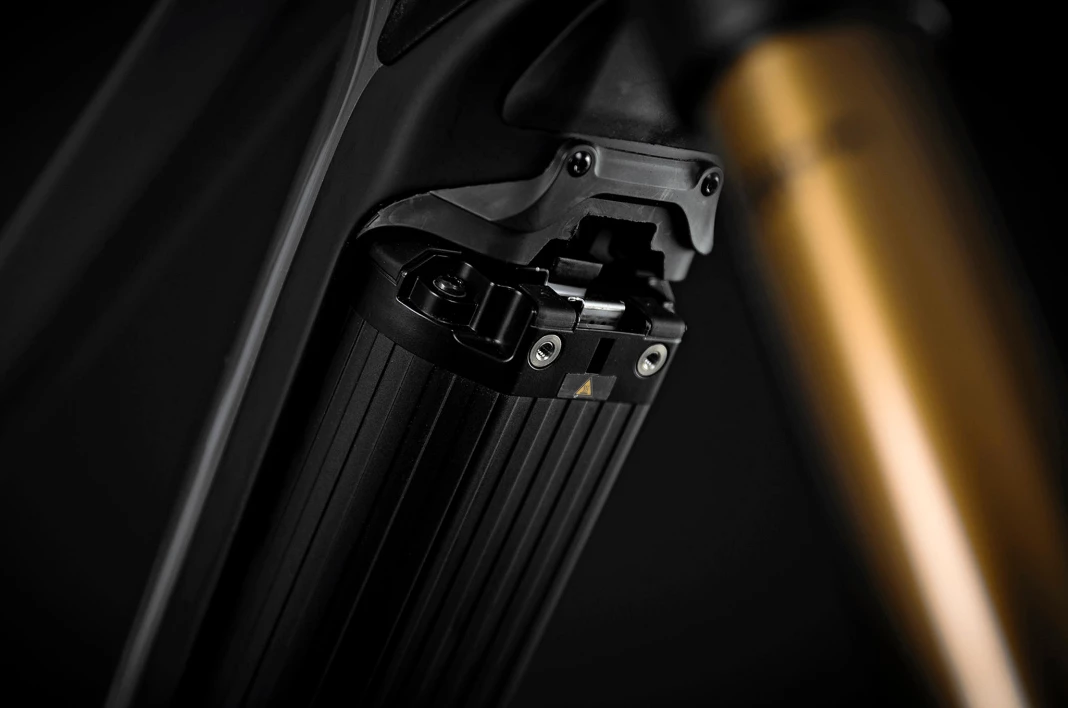

Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

INTERNAL BLOCK

First introduced in 2015, the e-bike version of the ‘Internal Block’ is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

SATELLITE POINTS

The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.

CLEVER WHEELS

To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5″ tyre and a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction.

WATER CARRIER

Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.

Video

Specification

01. FRAME	eONE-FS LITE III; MAT aluminium; 133 STR; 29/27.5″ WHS; 148×12 AST; intube; max. 630 Wh
02. SIZES	S-M-L-XL-XXL
03. FORK	FOX Rhythm 34 Float eMTB+; Air; 140 STR; Tapered; 51mm fork offset
04. REAR SHOCK	Rock Shox Deluxe Select+; platform
05. DRIVE UNIT	Shimano EP8; 85Nm
06. BATTERY	Shimano E8036; 630Wh Shimano E8035 (504Wh) for Small size only
07. BATTERY CHARGER	Shimano EC-E8004; 4A
08. DISPLAY	Shimano SC-E7000
09. SWITCH	Shimano SW-E7000-L
10. REAR DERAILLEUR	Shimano XT RDM8100 Shadow+ 12
11. SHIFTERS	Shimano DEORE M6100 12
12. BRAKE – FRONT	Shimano SLX; 4 piston
13. BRAKE – REAR	Shimano SLX; 4 piston
14. ROTOR – FRONT	Shimano RT64; 203 mm
15. ROTOR – REAR	Shimano RTEM600; 203 mm
16. CHAINRING	Shimano CRE80-12-B; 34 Tooth
17. CRANK	Shimano FCEM600; 165 mm for all sizes
18. CHAIN	CN-M6100
19. CASSETTE	Shimano M6100; 10-51 ATC; 12 speed
20. PEDALS	VP; VPE-527
21. HANDLEBAR	MERIDA Expert eTR; 780 Wide; 20 Rise
22. HANDLEBAR STEM	MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
23. STEM LENGTH	50 mm all sizes
24. SEAT POST	MERIDA EXPERT TR; 30.9 DSP; 0 SSB; S: 125 SPT – M/L 150 SPT – XL/XXL 170 SPT
25. SADDLE	MERIDA Expert CC; V-mount
26. HUB – FRONT	Shimano SLX; 110×15 WHF; 32 SPH; Centerlock
27. HUB – REAR	Shimano SLX; 148×12 WHR, 36 SPH; Centerlock
28. AXLE – REAR	MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
29. RIMS	MERIDA Expert TR; 29 IWR; MAT aluminium
30. TYRE – FRONT	MAXXIS REKON; 29×2.4″; wire
31. TYRE – REAR	MAXXIS REKON; 27.5×2.6″; wire
32. MUDGUARD	C093-02F + C093-02R

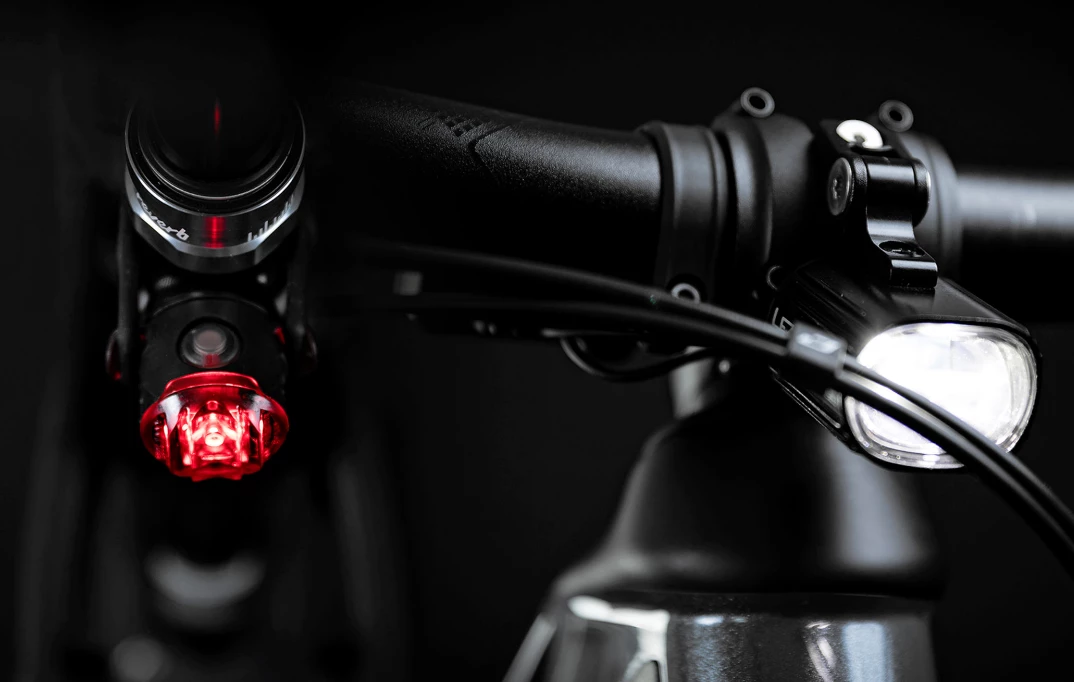

33. LIGHT FRONT	E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
34. LIGHT REAR	USB REAR Light CG-214RG
35. OTHER	MERIDA Multitool with saddlebox
