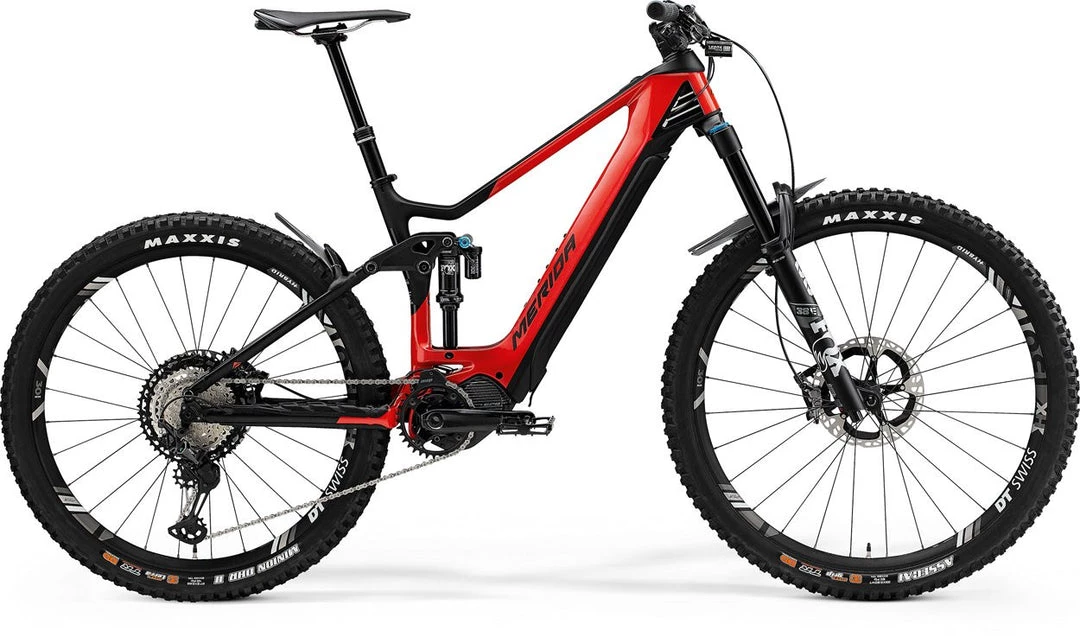

Merida Eone Sixty 9000 EMTB 2021 – Carbon

Original price was: $574.00.Current price is: $91.99.

The quality you expect, the service you deserve.

Multiple safe payment methods

Your questions, our prompt answers.

100% High-Quality Guarantee

Serious change; The much-loved Merida eONe-Sixty has the upgrade you have been asking for with the new powerful Shimano EP8 motor has advanced even further.

For 2021, our e-enduro bike will be equipped with the all-new EP8 motor from Shimano as well as with the range extending 630 Wh internal battery. Improved performance numbers, a perfectly tuned MTB geometry, paired with a stiff and lightweight frame that seamlessly integrates the battery into the lower part of the downtube and a 29er / 650B wheel combo, the eONE-SIXTY is ready for pretty much anything you can throw at it.

SHIMANO’S EP8

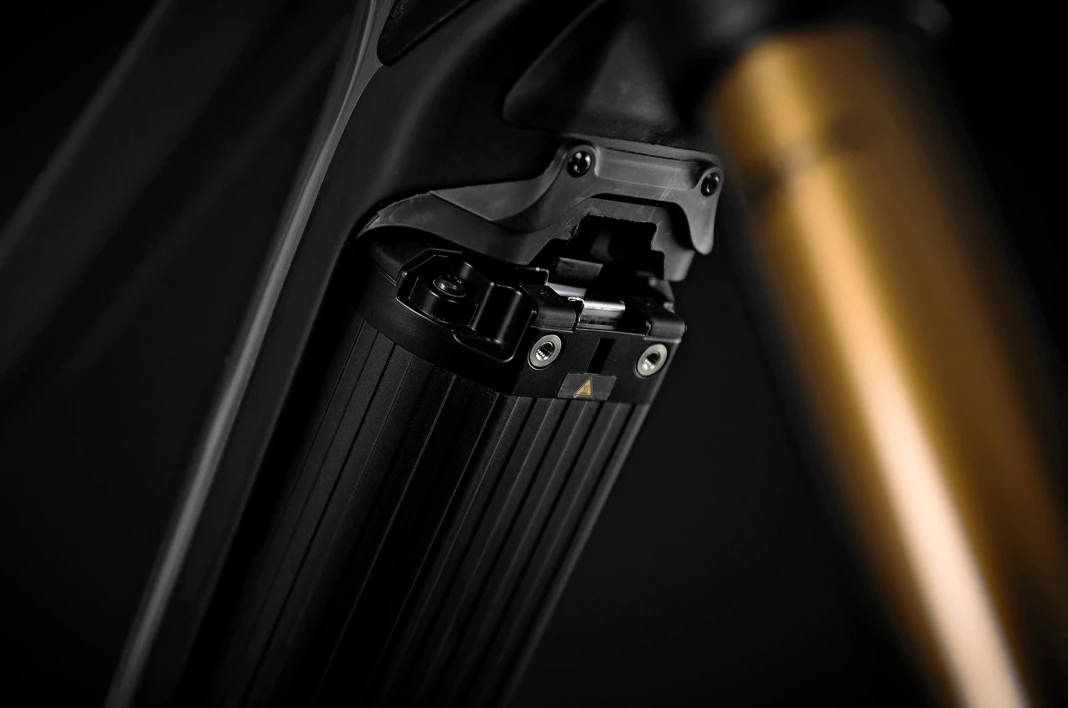

Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

INTERNAL BLOCK

First introduced in 2015, the e-bike version of the ‘Internal Block’ is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

SATELLITE POINTS

The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.

CLEVER WHEELS

To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5″ tyre and a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction.

WATER CARRIER

Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.

Video

Specification

01. FRAME	eONE-FS CFA II; MAT carbon; 150 STR; 29/27.5″ WHS; 148×12 AST; intube; max. 630 Wh
02. SIZES	M-L-XL
03. FORK	FOX 38 Elite eMTB+ Air; 160 STR; Tapered; 51mm fork offset
04. REAR SHOCK	FOX Float DPX2 Elite; platform
05. DRIVE UNIT	Shimano EP8; 85Nm
06. BATTERY	Shimano E8036; 630Wh Shimano E8035 (504Wh) for XS size only
07. BATTERY CHARGER	Shimano EC-E8004; 4A
08. DISPLAY	Shimano STePS
09. SWITCH	Shimano STePS
10. REAR DERAILLEUR	Shimano XT RDM8100 Shadow+ 12
11. SHIFTERS	Shimano XT M8100 12
12. BRAKE – FRONT	Shimano XT; 4 piston
13. BRAKE – REAR	Shimano XT; 4 piston
14. ROTOR – FRONT	Shimano RT-MT900; 203 mm
15. ROTOR – REAR	Shimano RT-EM910; 203 mm
16. CHAINRING	Shimano CRE80-12-B; 34 Tooth
17. CRANK	Shimano FCEM900; 165 mm all sizes; hollow
18. CHAIN	CNM8100
19. CASSETTE	Shimano M8100; 10-51 ATC; 12 speed
20. PEDALS	VP; VPE-527
21. HANDLEBAR	MERIDA Expert eTR; 780 Wide; 20 Rise
22. HANDLEBAR STEM	MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
23. STEM LENGTH	40 mm all sizes
24. SEAT POST	MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 125 SPT – S/M 150 SPT – L/XL 170 SPT
25. SADDLE	MERIDA Expert CC; V-mount
26. HUB – FRONT	DT Swiss
27. HUB – REAR	DT Swiss
28. AXLE – REAR	MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
29. RIMS	DT Swiss Spline HX1501 ONE 30 boost; 110×15 WHF; 148×12 WHR; 30 IWR; Centerlock; microspline; MAT aluminium; Tubeless ready (tubeless tape and valves included)
30. TYRE – FRONT	Maxxis Assegai; 29×2.5 “; fold; 3C MaxxGrip DD
31. TYRE – REAR	Maxxis Agressor; 27.5×2.5″; fold; TR DD Dual
32. MUDGUARD	C093-02F + C093-02R

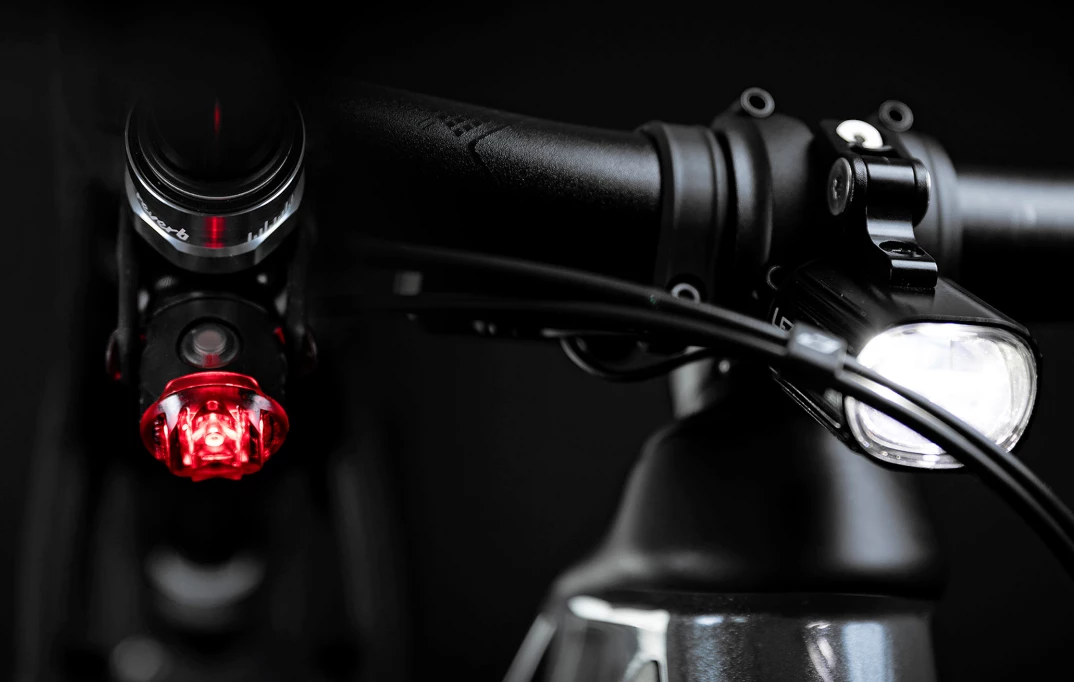

33. LIGHT FRONT	E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
34. LIGHT REAR	LED FEMTO USB REAR STVZO
35. OTHER	MERIDA Multitool with saddlebox
