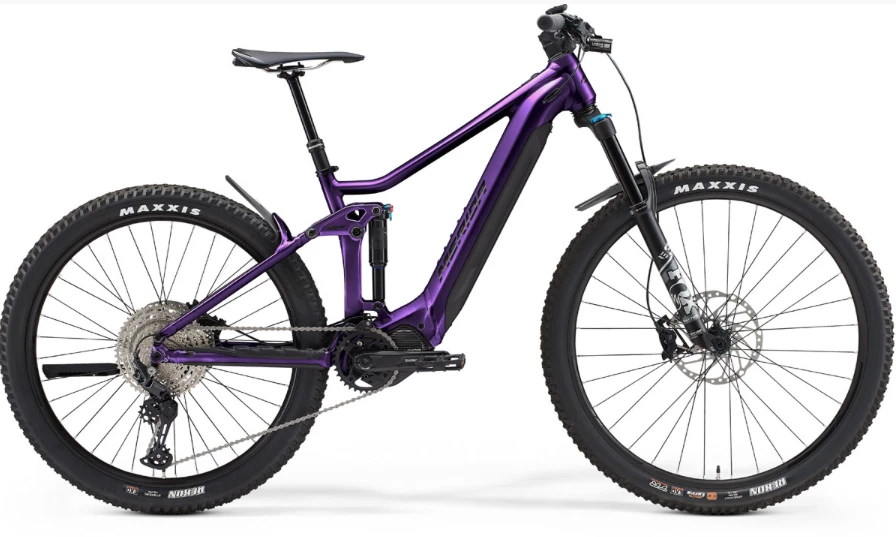

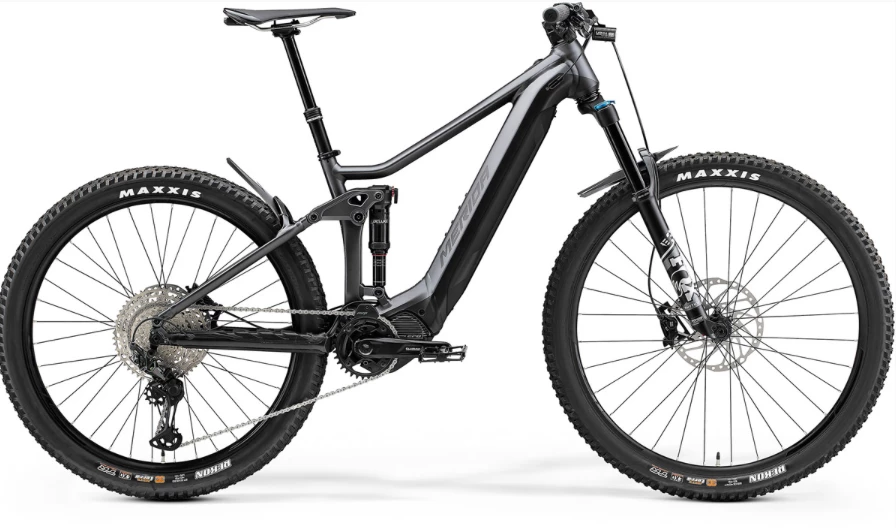

By combining our aggressive trail geometry with a lightweight but tough all-aluminium frame, the eONE-FORTY 700 delivers the power to ride more trails – and that means more fun. The powerful Shimano EP8 drive unit and 630 Wh battery make mincemeat of the toughest and longest climbs, while the Fox and RockShox suspension setup delivers assured performance and the Shimano 12-speed drivetrain is the last word in refinement.

The eONE-FORTY might be the little sibling to our multiple award and test winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630 Wh or 540 Wh battery (Small Only) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of front wheel and 133 mm of rear wheel travel offer up control, comfort and real rough terrain capability.

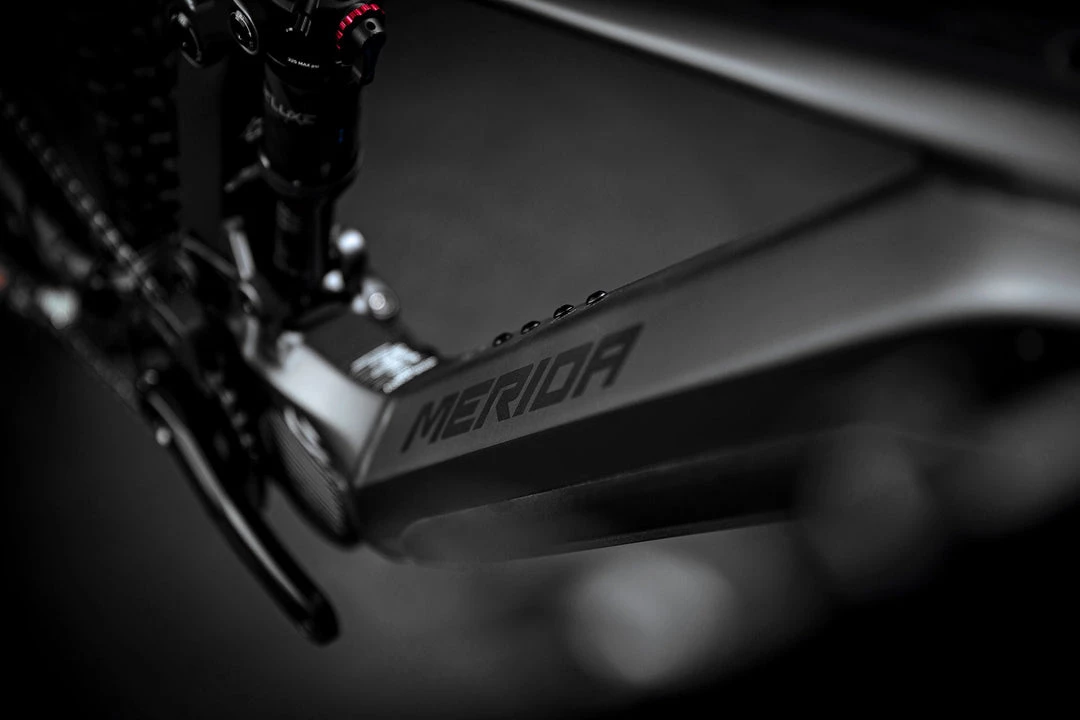

Tough all-aluminium chassis with integrated 630 Wh battery
Powerful Shimano EP8 drive unit
Mixed wheel size setup with 140/130 mm travel split
Quality Fox and RockShox suspension
Smooth 12-speed Shimano drivetrain
Powerful four-piston brakes

Technologies

HFS – HYDRO FORMING SYSTEM

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.

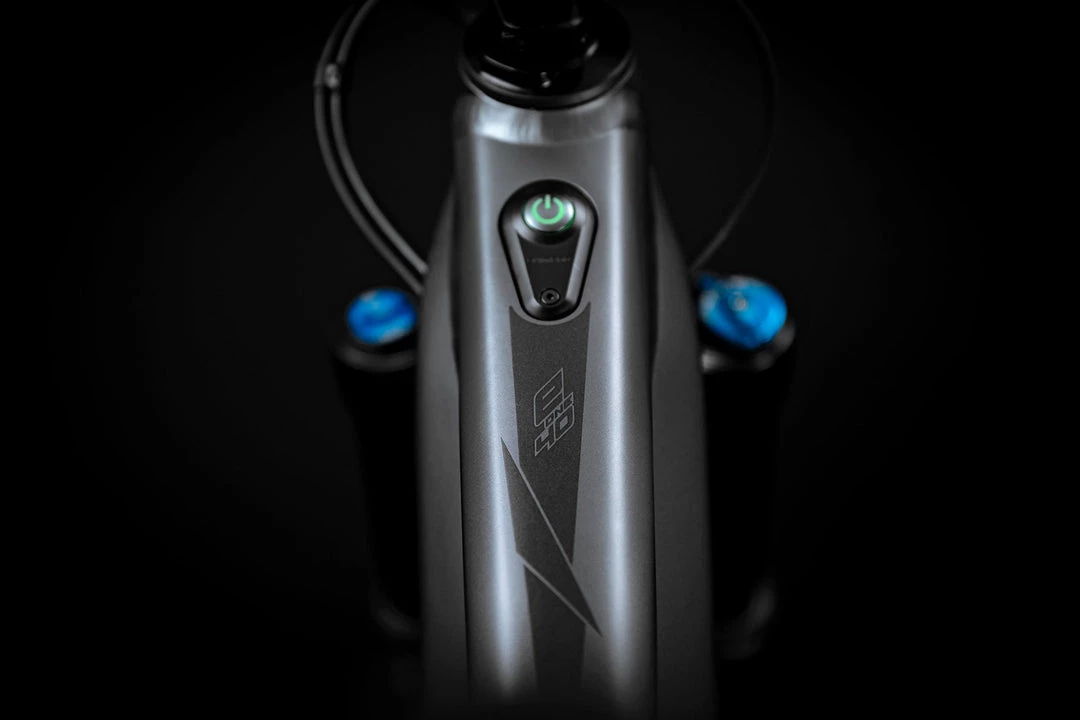

X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.

INTERNAL CABLE ROUTING
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

RACELITE 61 ALUMINIUM

We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.

K-MOUNT

Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

CASTING MOTOR BRACKET

Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.

INTERNAL BLOCK

First introduced in our 2015 NINETY-SIX, the new version of the ‘Internal Block’ is incorporated directly in the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

ENERGY GUARD TWIST

Twist lock mechanism that is located at the top end of the ‘Energy Guard’ battery cover, for easy locking and unlocking of the protective internal battery cover.

Specs

FRAME	eONE-FORTY LITE III material: aluminium 133mm suspension travel 27.5×2.8″ max. wheelsize 148x12mm axle standard intube
FORK	FOX Rhythm 34 Float eMTB+ Air 140mm suspension travel Tapered 51mm fork offset 29×2.5″ max wheelsize

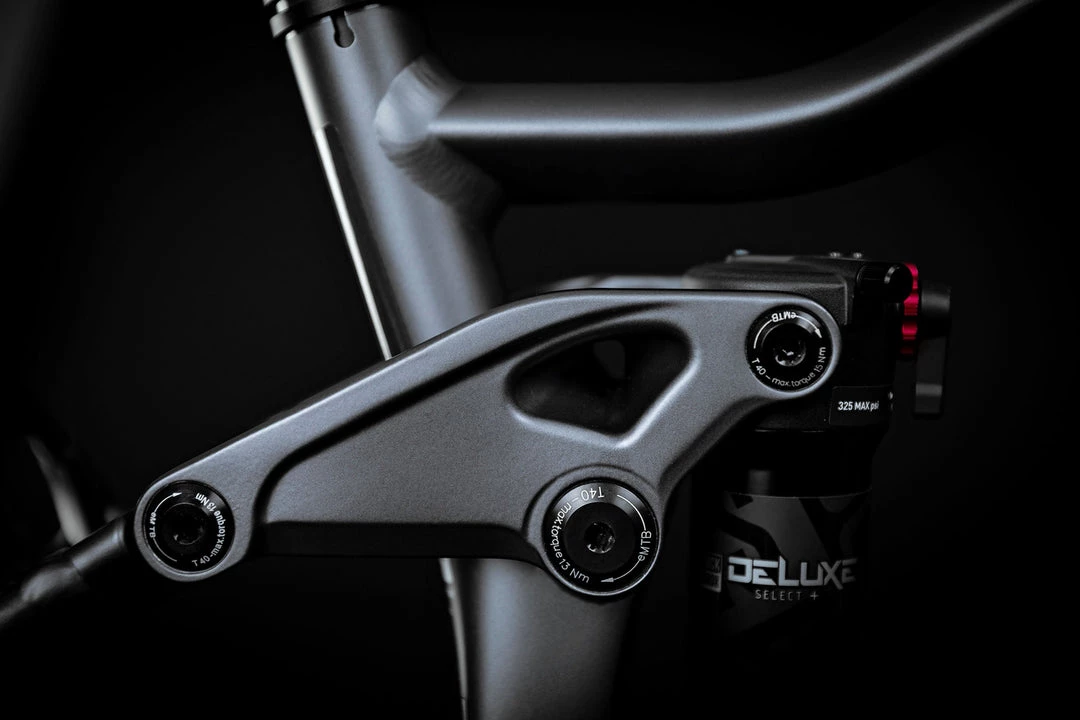

SHOCK	Rock Shox Deluxe Select+ platform
BRAKES	Shimano SLX 4 piston
HANDLEBAR	MERIDA EXPERT eTR 780mm width 20mm rise
HANDLEBAR STEM	MERIDA EXPERT TR; 30.9 DSP; 0 SSB; S 100 SPT – M 125 SPT – L/XL 150 SPT – XXL 170 SPT
GRIP	MERIDA EXPERT EC
DERAILLEUR (R)	Shimano XT RDM8100 Shadow+ 12
SHIFTERS	Shimano DEORE M6100 12
DROPPER POST LEVER	Shimano SL -MT500-IL
SEAT POST	MERIDA EXPERT TR 30.9mm diameter 0mm setback XS: 100mm travel seatpost – S/M 150mm travel seatpost – L/XL 170mm travel seatpost
SEAT CLAMP	MERIDA EXPERT clamp
ROTOR – FRONT	Shimano RT64; 203 mm
ROTOR – REAR	Shimano RTEM600; 203 mm
SADDLE	MERIDA EXPERT CC V-mount
PEDAL	VP VPE-527
CHAIN	KMC e12T EPT
CASSETTE	Shimano M6100; 10-51 ATC; 12 GER
CHAINWHEEL	Shimano CRE80-12-B 34 teeth Shimano FCEM600
CHAINRING	Shimano CRE80-12-B; 34 ATC
PEDALS	VP VPE-527
CRANK	Shimano FCEM600 165 mm for all sizes
FREEWHEEL	Shimano M6100 10-51 teeth 12 speed
HUBS	Shimano SLX 110x15mm width front hub 32 spoke holes Centerlock Rear: 148x12mm width rear hub, 36 spoke holes Centerlock
RIM	MERIDA EXPERT TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)
TYRE FRONT	MAXXIS REKON 29×2.4″ fold 3C EXO MaxxTerra
TYRE REAR	MAXXIS REKON 27.5×2.6″ fold TR 3C EXO MaxxTerra
AXLES	MERIDA EXPERT TR including removeable lever, 6/4mm allen key
SPOKES	Black stainless
LIGHT FRONT	LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
LIGHT REAR	USB REAR Light CG-214RG

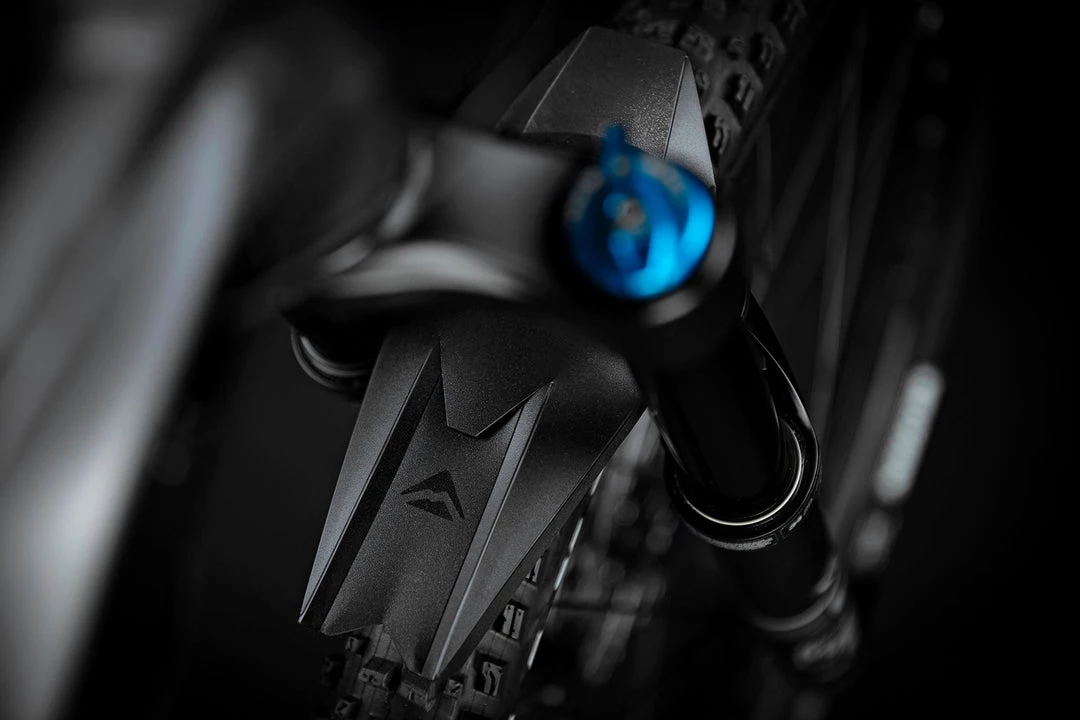

FENDER	C093-02F + C093-02R
DRIVE UNIT	Shimano EP8 85Nm
BATTERY	Shimano E8036 630Wh / E8035 504Wh S
BATTERY CHARGER	Shimano EC-E8004; 4A charging current
DISPLAY	Shimano SC-E7000
MODE SWITCH	Shimano SW-E7000-L
MAX. WEIGHT	140 kg
