Serious change; The much-loved Merida eONe-Sixty has the upgrade you have been asking for with the new powerful Shimano EP8 motor has advanced even further.
For 2021, our e-enduro bike will be equipped with the all-new EP8 motor from Shimano as well as with the range extending 630 Wh internal battery. Improved performance numbers, a perfectly tuned MTB geometry, paired with a stiff and lightweight frame that seamlessly integrates the battery into the lower part of the downtube and a 29er / 650B wheel combo, the eONE-SIXTY is ready for pretty much anything you can throw at it.SHIMANO’S EP8

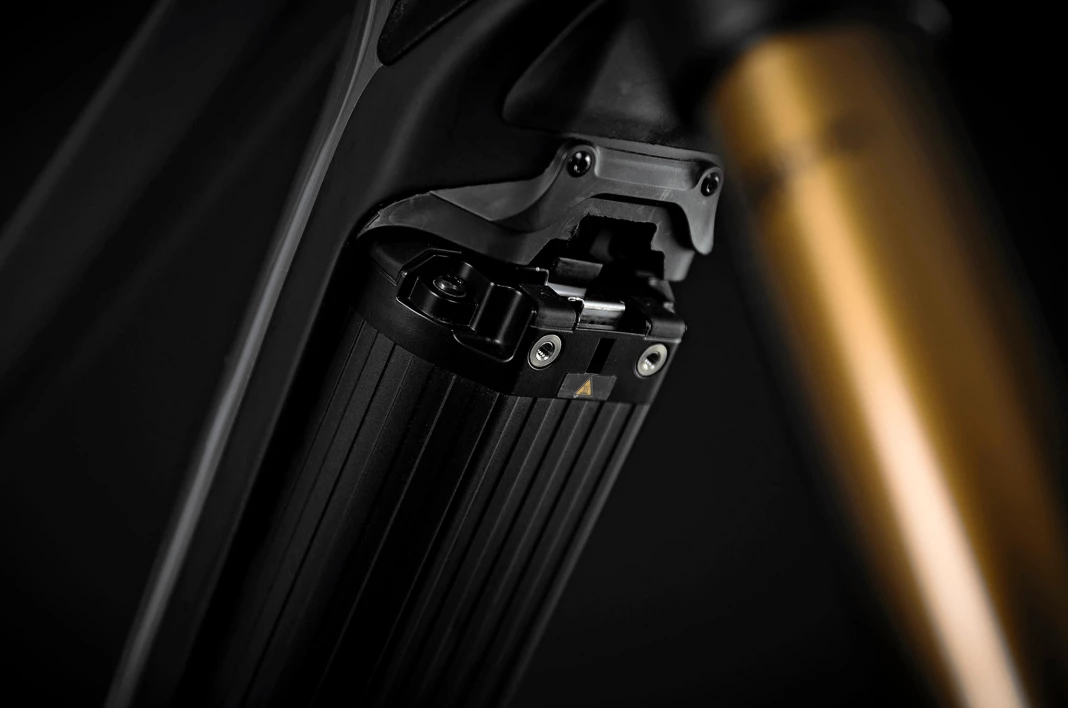

Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

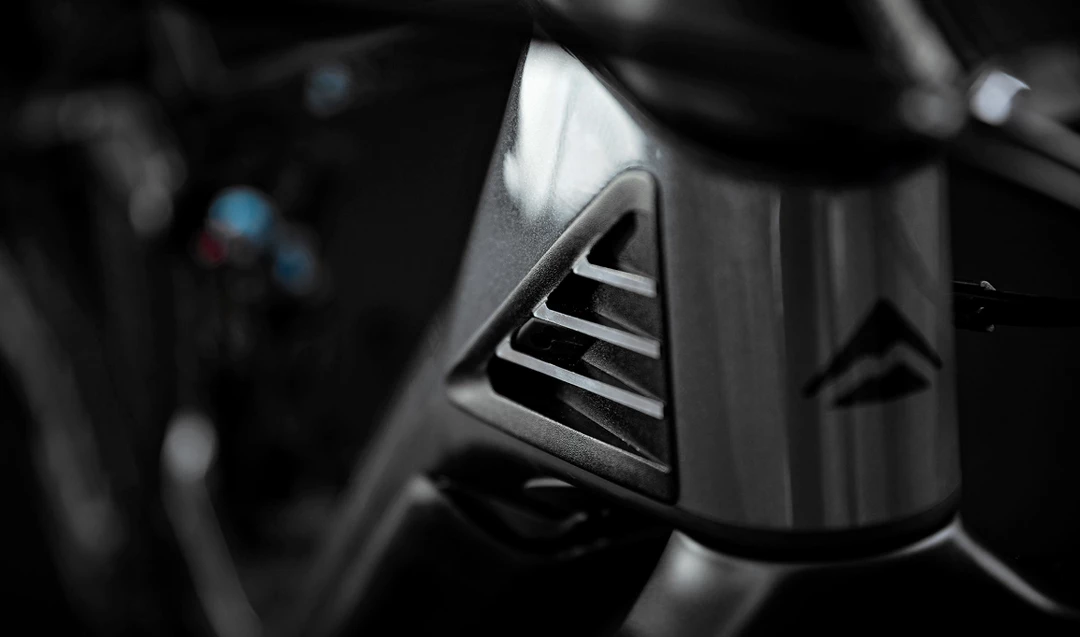

First introduced in 2015, the e-bike version of the ‘Internal Block’ is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.
The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.
To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5″ tyre and a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction.
Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.
Video
Specification
| 01. FRAME | eONE-FS CFA II; MAT carbon; 150 STR; 29/27.5″ WHS; 148×12 AST; intube; max. 630 Wh |
| 02. SIZES | XS-S-M-L-XL |
| 03. FORK | Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset |
| 04. REAR SHOCK | FOX Float DPX2 Performance; platform |
| 05. DRIVE UNIT | Shimano EP8; 85Nm |
| 06. BATTERY | Shimano E8036; 630Wh Shimano E8035 (504Wh) for XS size only |
| 07. BATTERY CHARGER | Shimano EC-E8004; 4A |
| 08. DISPLAY | Shimano SC-E7000 |
| 09. SWITCH | Shimano SW-E7000-L |
| 10. REAR DERAILLEUR | Shimano XT RDM8100 Shadow+ 12 |
| 11. SHIFTERS | Shimano XT M8100 12 |
| 12. BRAKE – FRONT | Shimano SLX; 4 piston |
| 13. BRAKE – REAR | Shimano SLX; 4 piston |
| 14. ROTOR – FRONT | Shimano RT64; 203 mm |
| 15. ROTOR – REAR | Shimano RTEM600; 203 mm |
| 16. CHAINRING | Shimano CRE80-12-B; 34 Tooth |
| 17. CRANK | Shimano FCEM600; 165 mm for all sizes |
| 18. CHAIN | CN-M6100 |
| 19. CASSETTE | Shimano M7100; 10-51 ATC; 12 speed |
| 20. PEDALS | VP; VPE-527 |
| 21. HANDLEBAR | MERIDA Expert eTR; 780 Wide; 20 Rise |
| 22. HANDLEBAR STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| 23. STEM LENGTH | 40 mm all sizes |
| 24. SEAT POST | MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 125 SPT – S/M 150 SPT – L/XL 170 SPT |
| 25. SADDLE | MERIDA Expert CC; V-mount |
| 26. HUB – FRONT | Shimano SLX; 110×15 WHF; 32 SPH; Centerlock |
| 27. HUB – REAR | Shimano SLX; 148×12 WHR; 36 SPH; Centerlock |
| 28. AXLE – REAR | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| 29. RIMS | MERIDA Expert TR; 29 IWR; MAT aluminium |
| 30. TYRE – FRONT | Maxxis Assegai; 29×2.5 “; fold; 3C MaxxGrip DD |
| 31. TYRE – REAR | Maxxis Agressor; 27.5×2.5″; fold; TR DD Dual |
| 32. MUDGUARD | C093-02F + C093-02R |

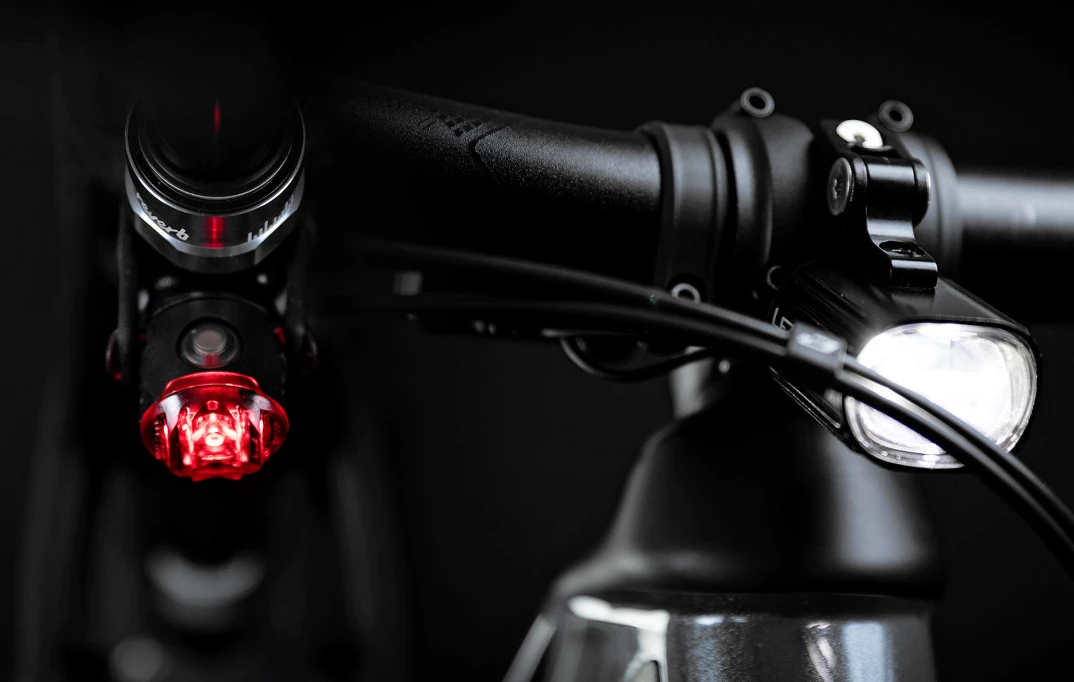

| 33. LIGHT FRONT | E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| 34. LIGHT REAR | USB REAR Light CG-214RG |
| 35. OTHER | MERIDA Multitool with saddlebox |
