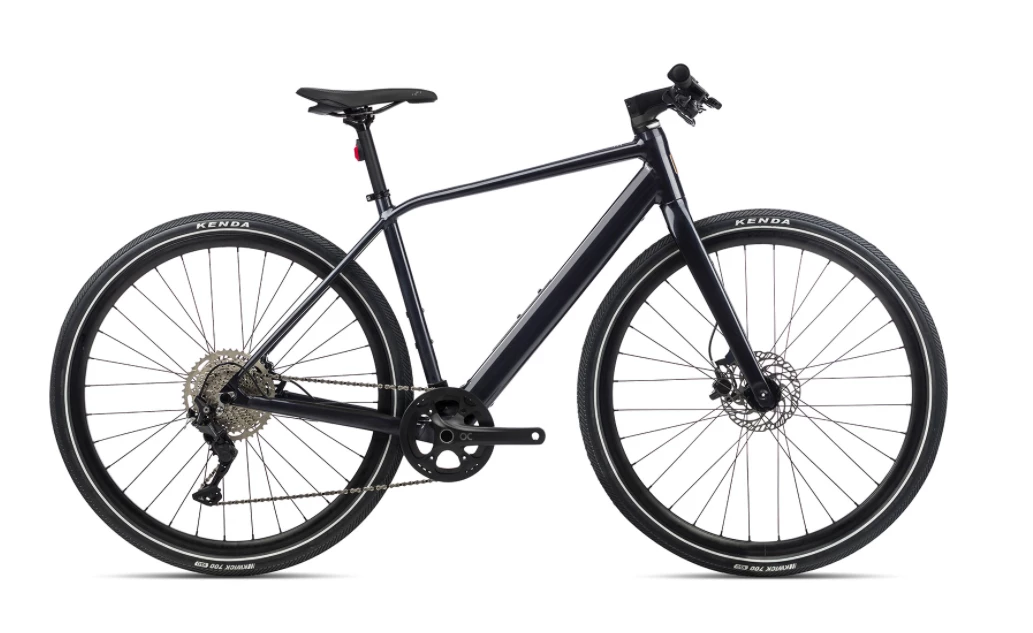

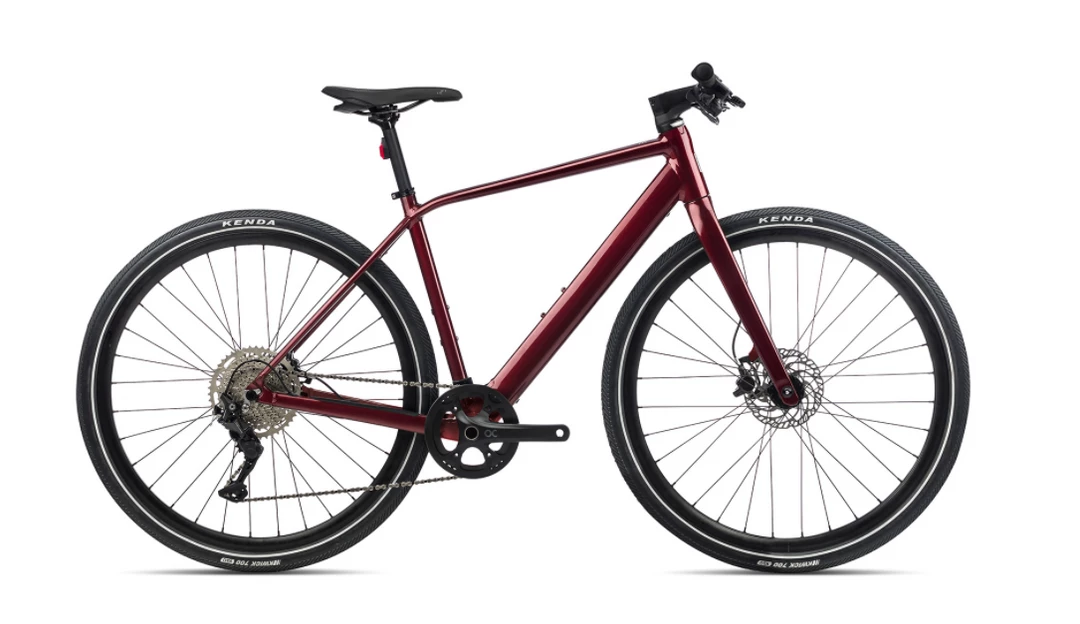

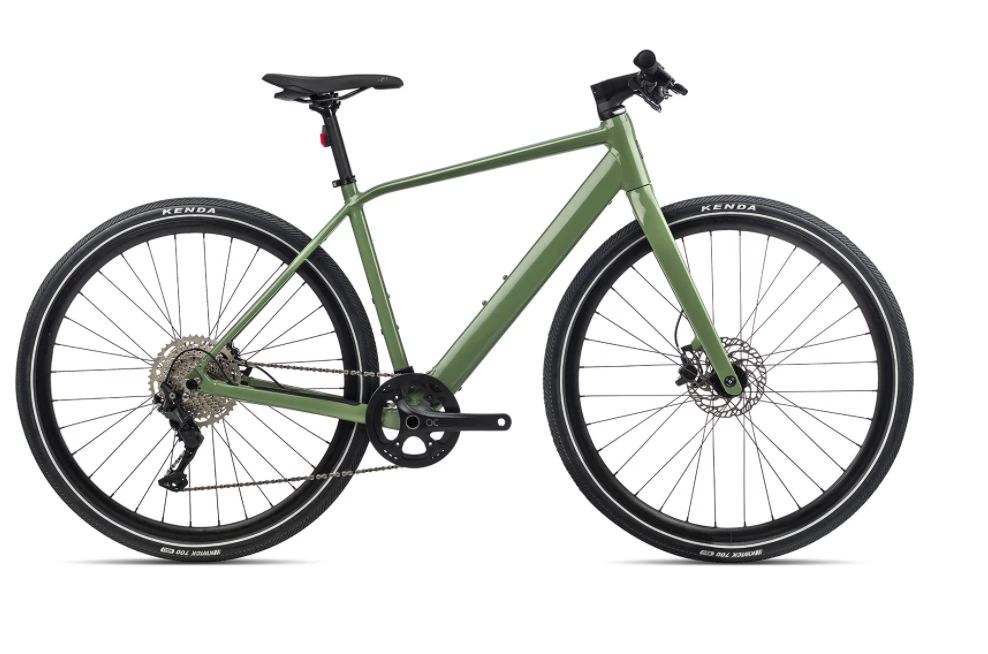

Orbea Vibe H30

The H30 model series offers the “naked” bike as well as an EQ model with mudguards, headlights and a rear rack. On the H10 models the mudguards are painted in the frame color and there is also a MUD model — this comes with mudguards and headlight, but without a rack. If you want one, grab the H10 EQ and get a practical luggage bag, which can easily be transformed into a backpack.

With the Vibe, Orbea is taking a big step forward and giving the new model many useful features for urban cyclists. In addition to the standard lighting, the improved gear changes should often pay off in practice — and the second frame option was almost overdue. The fact that the bikes can now be extensively customized with the MyO program is the icing on the cake.

Specifications

• FRAME Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×40 maximun tyre, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible
• FORK Orbea Vibe carbon fork, full carbon, 1-1/5, 700×40 maximun tyre, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
• CRANKSET OC 42t, w/Chainguard
• HEADSET Acros Alloy 1-1/2″ Internal Cable Routing
• HANDLEBAR Alloy 31.8mm 12mm Rise 700mm
• STEM OC1 31.8mm interface -6º
• SHIFTERS Shimano Deore M6100
• BRAKES Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
• CASSETTE Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
• REAR DERAILLEUR Shimano XT M8100 SGS Shadow Plus
• CHAIN KMC X12
• WHEELS Ready GR
• TYRES Kenda K1052 700x45C Reflective type TLR
• SEATPOST Alloy 27.2 Offset 20
• SADDLE Brooks Cambium C15 283×140
• REAR CARRIER Orbea Vibe rear luggage carrier (Max:15Kg)
• CARRIER ACCESSORIES OC, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective.
• MUDGUARD CURANA Apollo 55mm
• FRONT POSITION LIGHT Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
• FRONT LIGHT Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens
• REAR LIGHT Lezyne FENDER STVZO
• QUICK STAND Ursus Mooi R90 rear alloy adjustable
• MOTOR Ebikemotion X35 Plus 25kmh
• BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
• GRIPS Brooks Comfort Cambium 130mm
• DISPLAY

  Consult other components

• CHARGER Ebikemotion X35
• REMOTE2 Ebikemotion iWoc TRIO
• FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
• VIBE SHEET MYO LITE
• BELL Knog OI Classic
