Orbea Vibe MID H30 Step Through Ebikes

Original price was: $559.00.Current price is: $96.99.

The quality you expect, the service you deserve.

Multiple safe payment methods

Your questions, our prompt answers.

100% High-Quality Guarantee

The H30 model series offers the “naked” bike as well as an EQ model with mudguards, headlights and a rear rack. On the H10 models the mudguards are painted in the frame color and there is also a MUD model — this comes with mudguards and headlight, but without a rack. If you want one, grab the H10 EQ and get a practical luggage bag, which can easily be transformed into a backpack.

With the Vibe, Orbea is taking a big step forward and giving the new model many useful features for urban cyclists. In addition to the standard lighting, the improved gear changes should often pay off in practice — and the second frame option was almost overdue. The fact that the bikes can now be extensively customized with the MyO program is the icing on the cake.

Specifications

Std Parts (See MyO for customisations)
Frame	Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc
Sizes	S: 45.5, M: 49, L: 52.5 See HERE for geometry and size guide
Colours	Night Black; Blue; Dark Red; Urban Green
Fork	Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximum tire, flat mount disc mount, Thru Axle12x100mm
Wheel Size	700C (28″)
Tires	Kenda K1052 700x45C Reflective type+puncture protection
Crankset	OC 42t, w/Chainguard
Chain	KMC X10
Wheels	Ready GR
Shifters	Shimano Deore M4100
Rear Derailleur	Shimano Deore M5120 SGS Shadow Plus
Cassette	Shimano CS-M4100 11-46t 10-Speed
Stem	OC1 31.8mm interface -6º
Headset	Acros Alloy 1-1/2″ Internal Cable Routing
Brakes	Magura MT30 Hydraulic Disc Easy Route Connection
Saddle	Selle Royal Lift 1215 URN 278x145mm
Pedals	N.A
Seatpost	OC 27.2 Offset 0, for integrated light
Handlebars	Alloy 31.8mm 12mm Rise 700mm
Weight	Approx 15kg

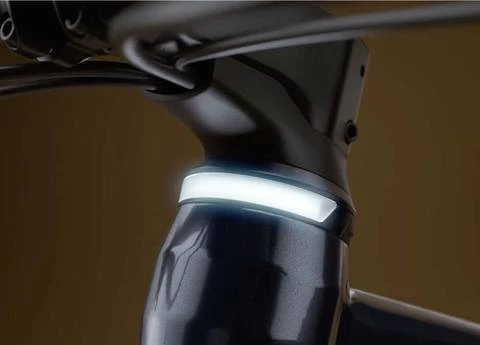

Front Position Light	Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50

Rear Light	Lezyne FENDER STVZO seatpost mount 11 lumens

Electrics

System	Ebikemotion rear-drive 250W
Motor	Ebikemotion X35 Plus
Battery	Ebikemotion 36V/6.9A 248Wh ANT+
Range	Varies based on usage. 70km++
Display	Ebikemotion Pulsar One monochrome ANT+ LEV
Remote	Ebikemotion iWoc ONE
Charger	Ebikemotion X35
