It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your Special Places, it’s time to run over them. Reclaim access and discover new adventures the way you like – aboard a fun and capable machine that enhances your skills while it extends your range. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Wild FS revitalizes your riding and helps you chart new destinations. Take back control – Take back your Wild.

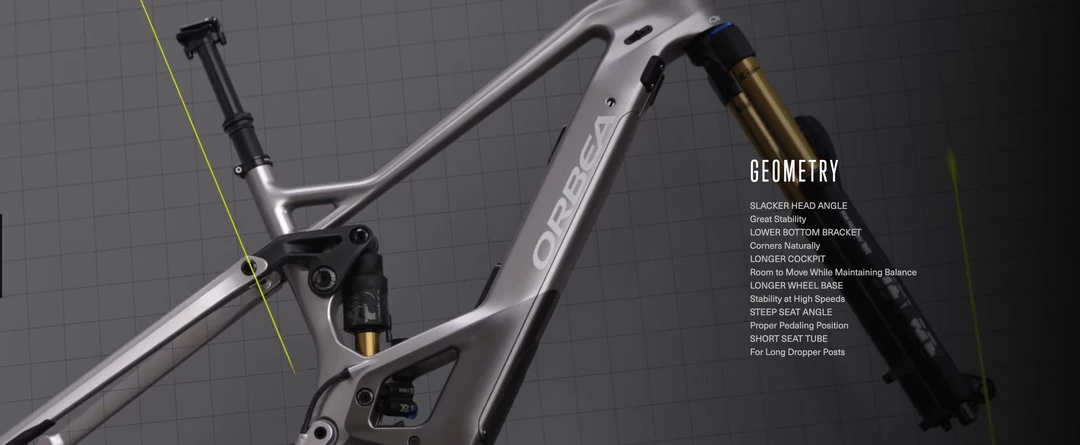

The new Wild FS geometry is designed to give new riders more comfort and stability – and for more experienced riders – a bike that doesn’t hold them back no matter the terrain.

Very limited numbers have been locked in by SEB for 2022. Text us to check what we have on 0480 018 349. New colours also….

• Slacker head angle – great stability
• Lower bottom bracket – corners naturally
• Longer cockpit – room to move while maintaining balance
• Longer wheel base – stability at high speeds
• Steep seat angle – proper pedalling position
• Short seat tube – for long dropper posts

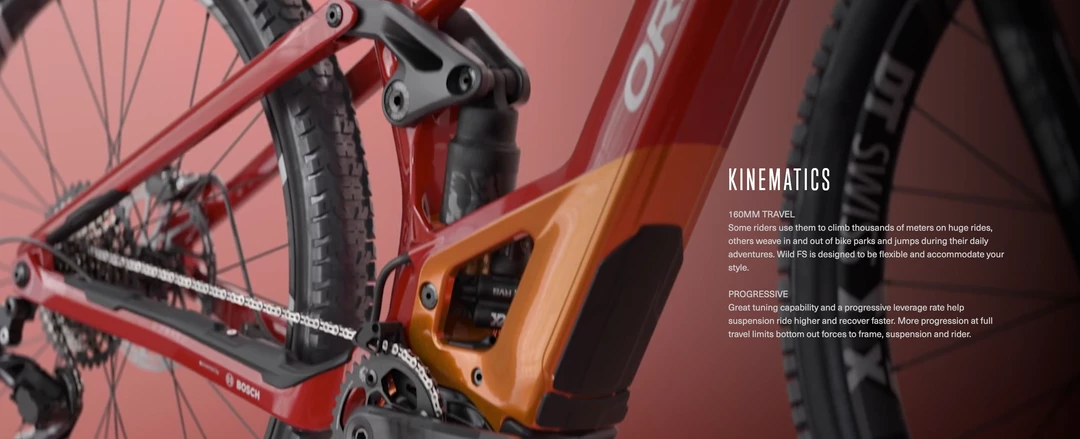

Kinematics

• 160mm Travel
Some riders use them to climb thousands of meters on huge rides, others weave in and out of bike parks and jumps during their daily adventures. Wild FS is designed to be flexible and accommodate your style.
• Progressive
Great tuning capability and a progressive leverage rate help suspension ride higher and recover faster. More progression at full travel limits bottom out forces to frame, suspension and rider.
• Anti-squat
The main pivot point on the Wild FS is located to work efficiently with single-ring setups and adapted for the greater BB drop associated with 29″ wheels. The balance between compliance and efficiency makes for suspension with a huge range of capability.
• Vertical shock
Clearance and compact design. Wild FS uses a vertical shock mounting position, with the goal of fitting an additional battery while maintaining low standover.

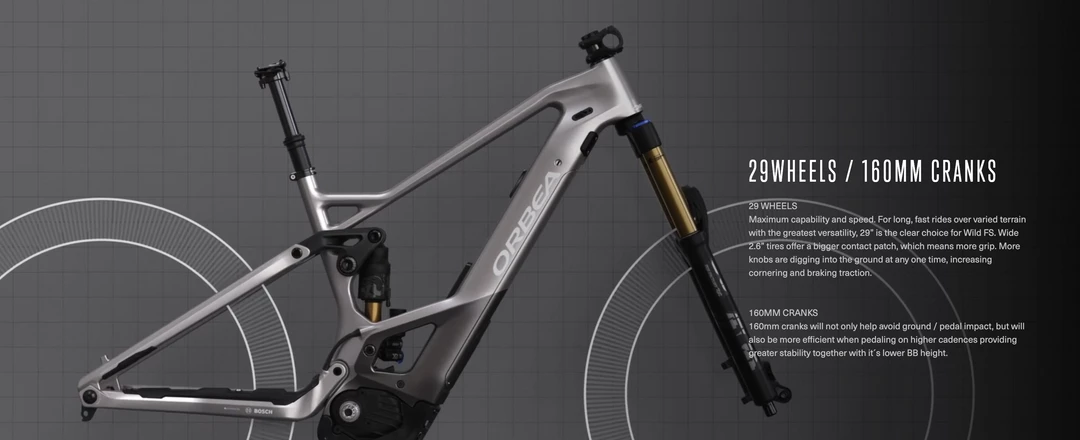

29 Wheels/160mm Cranks

• 29 Wheels
Maximum capability and speed. For long, fast rides over varied terrain with the greatest versatility, 29″ is the clear choice for Wild FS. Wide 2.6″ tyres offer a bigger contact patch, which means more grip. More knobs are digging into the ground at any one time, increasing cornering and braking traction.
• 160mm Cranks
160mm cranks will not only help avoid ground/pedal impact, but will also be more efficient when pedalling on higher cadences, providing greater stability together with its lower BB height.

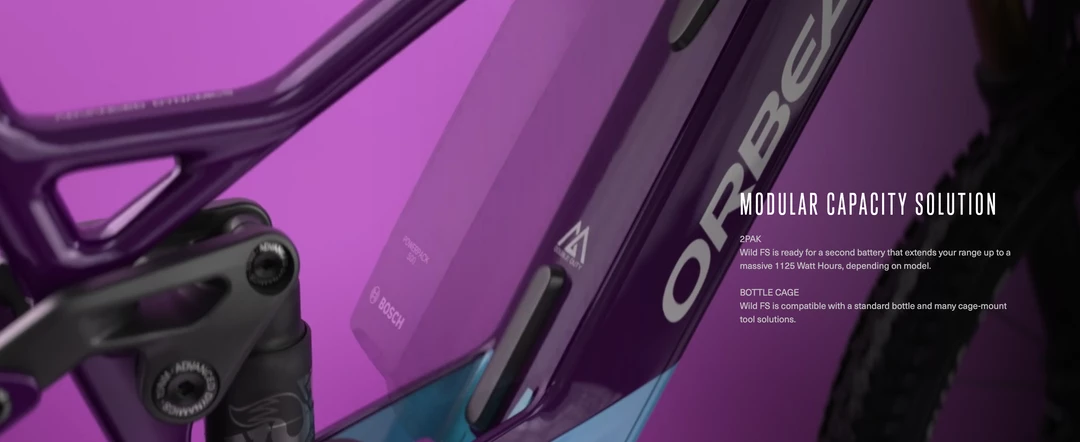

Modular capacity solution

• 2PAK
Wild FS is ready for a second battery that extends your range up to a massive 1125 watt-hours, depending on model.
• Bottle cage
Wild FS is compatible with a standard bottle and many cage-mount tool solutions.

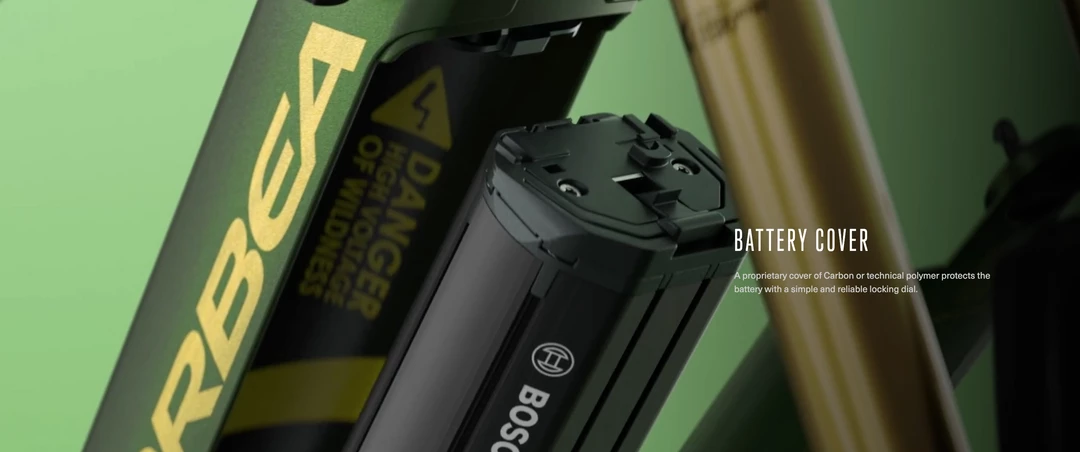

• Battery cover
A proprietary cover of Carbon or technical polymer protects the battery with a simple and reliable locking dial.

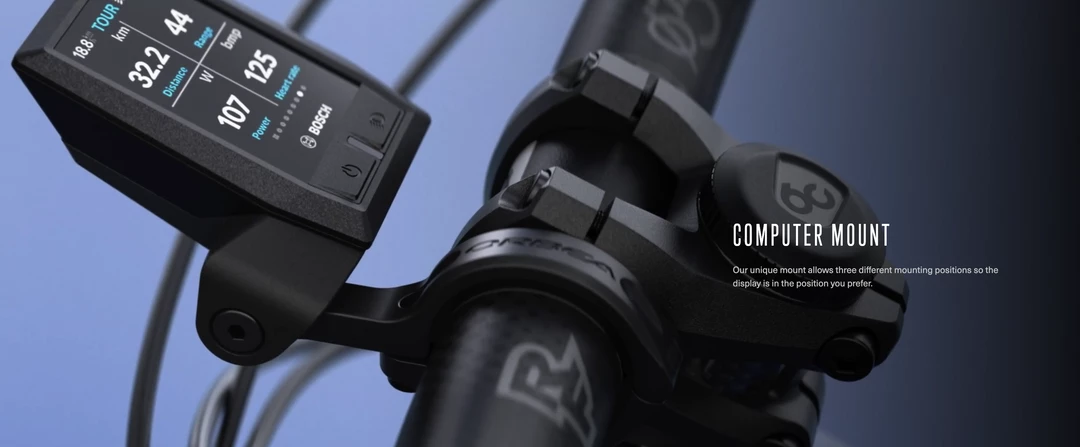

• Computer mount
Our unique mount allows three different mounting positions so the display is in the position you prefer.

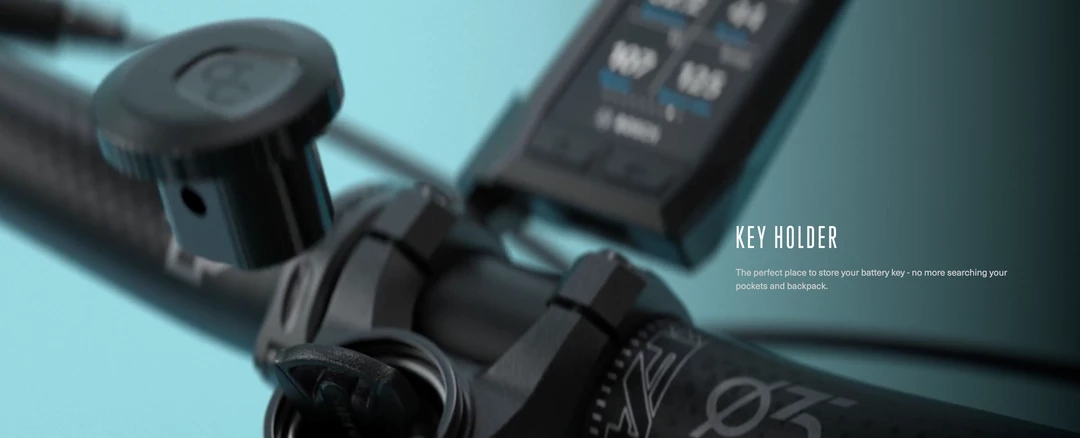

• Key holder
The perfect place to store your battery key – no more searching your pockets and backpack.

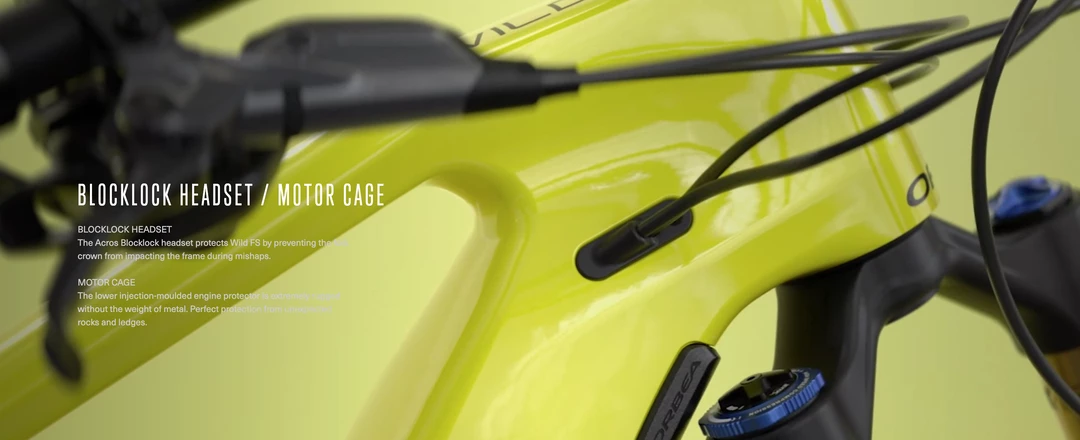

Blocklock headset/Motor cage

• Blocklock headset
The Arcros Blocklock headset protects Wild FS by preventing the fork crown from impacting the frame during mishaps.
• Motor cage
The lower injection-moulded engine protector is extremely rugged without the weight of metal. Perfect protection from unexpected rocks and ledges.

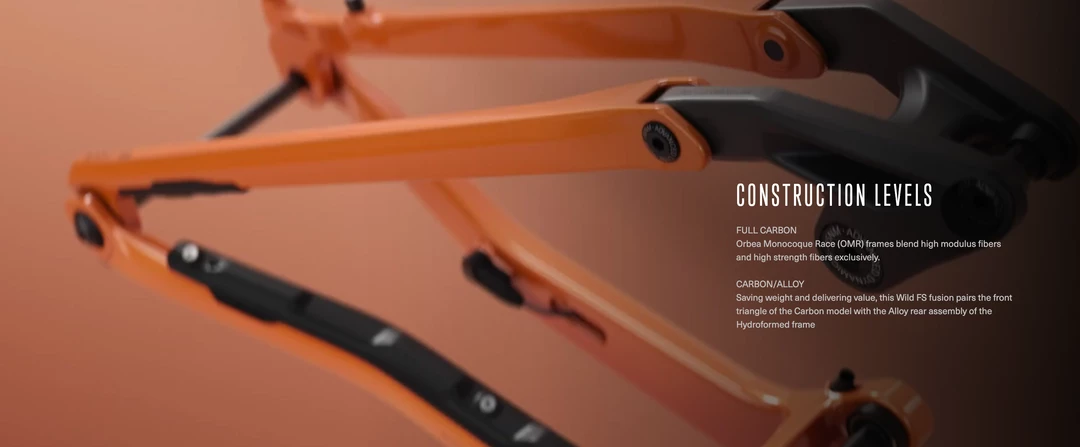

Oversized pivot/Construction levels

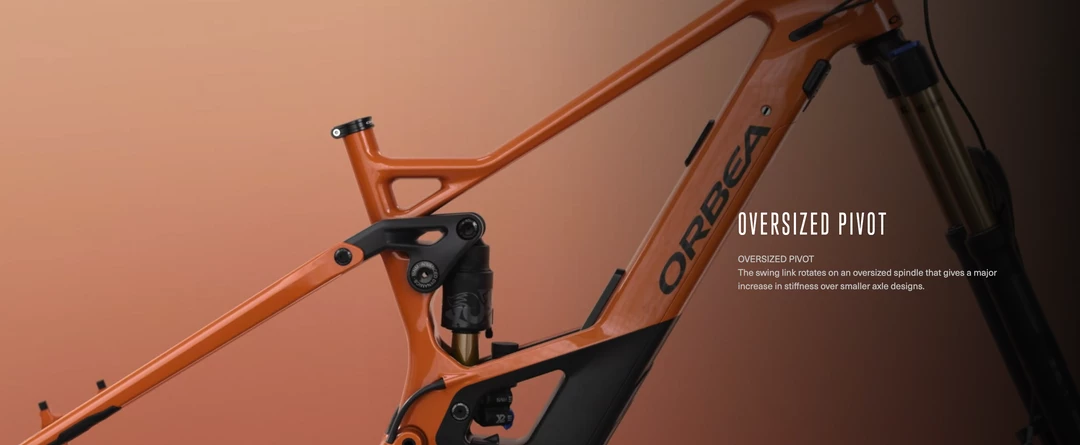

• Oversized pivot
The swing link rotates on an oversized spindle that gives a major increase in stiffness over smaller axle designs.
• Full carbon
Orbea Monocoque Race (OMR) frames blend high modulus fibres and high strength fibres exclusively.
• Carbon/alloy
Saving weight and delivering value, this Wild FS fusion pairs the front triangle of the Carbon model with the Alloy rear assembly of the Hydoformed frame.

Video

Specs

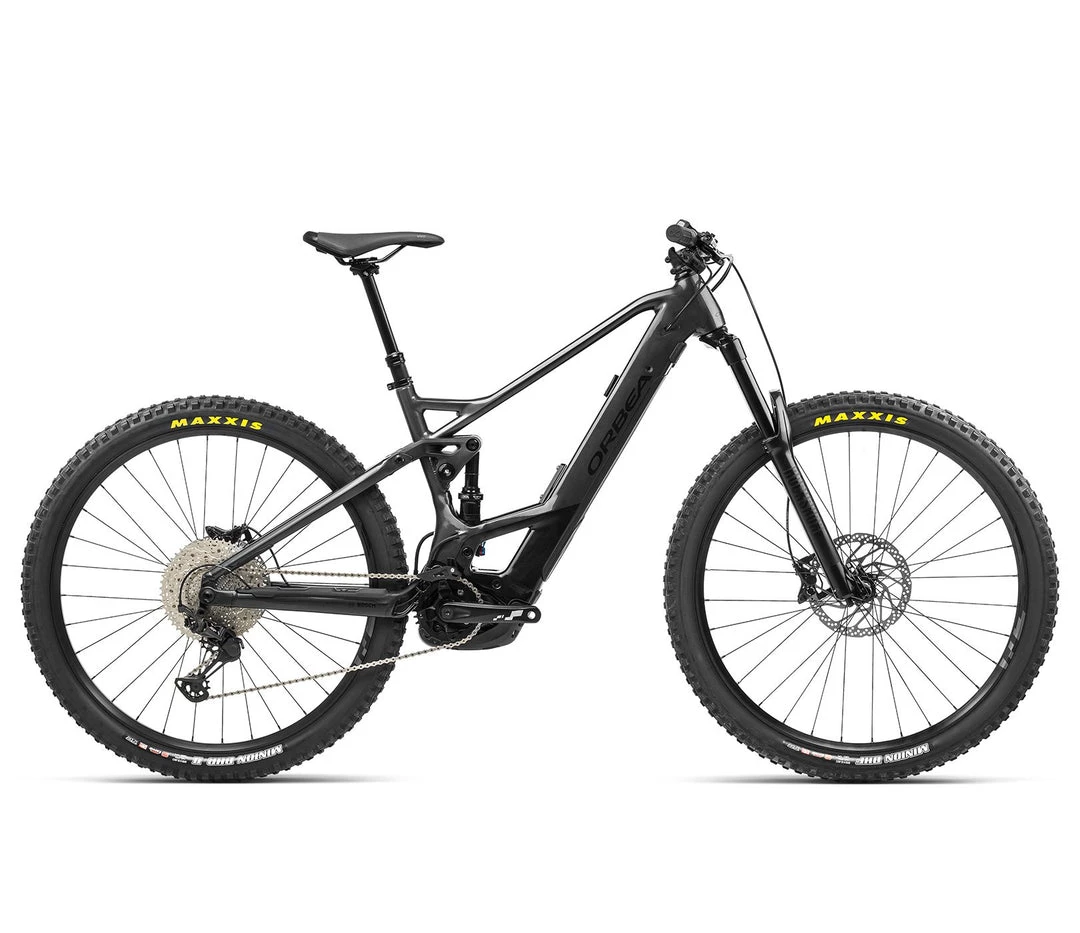

FRAME ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12×148 Bosch Gen4
SHOCK Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
FORK RockShox 35 Gold RL Crown adjust Q15x110 DebonAir e-MTB 160mm
CRANKSET PW EB04-NW32 G4
HEADSET

Consult other components
HANDLEBAR OC1 35mm 12mm Rise 780mm
STEM OC1 3D Forged 35mm interface 7º
SHIFTERS Shimano Deore M6100 I-Spec EV
BRAKES Shimano M420 Hydraulic Disc

Consult other components
CASSETTE Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
REAR DERAILLEUR Shimano XT M8100 SGS Shadow Plus
CHAIN KMC e12 Turbo Silver
WHEELS Orbea Tryp 30c Disc Tubeless ready

Consult other components
TYRES Maxxis Minion DHF 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
TYRES Maxxis Minion DHR II 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
SEATPOST OC2 Dropper 31.6mm

Consult other components
SEATPOST LEVER Shimano SL-MT500 I-Spec EV
SADDLE Selle Royal Vivo

Consult other components
FRONT LIGHT

Consult other components
LOCK Abus battery powertube lock PLUS
CHAINGUIDE Orbea OC chainguide 32-38t
MOTOR BOSCH Performance CX Cruise (25km/h) BDU450CX
BATTERY BOSCH Powertube 500Wh Horizontal EU BBP280

Consult other components
DUAL BATTERY

Consult other components
DISPLAY BOSCH Performance Purion

Consult other components
CHARGER Compact Charger 2A (100-240V) Worldwide
