E-BIKES MADE IN GERMANY SINCE 1919
Kalkhoff looks back on a long history. Bicycles have been manufactured and sold under the Kalkhoff brand name since 1919.
IMAGE 3.B MOVE

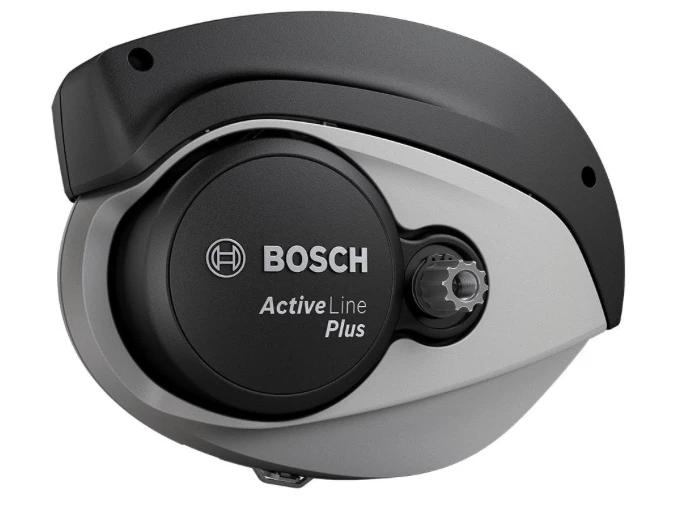

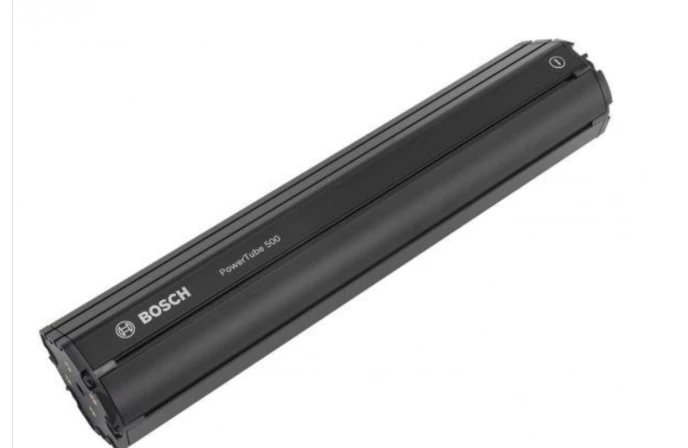

Using the smooth and reliable Bosch Active Line Plus motor along with the large 500Wh Bosch Battery you will be able to complete your errands or commute with ease.

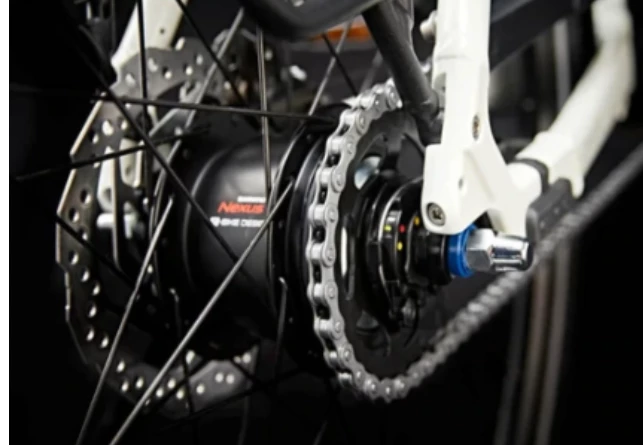

“Keep it simple” was the idea when Kalkhoff designed the IMAGE 3.B MOVE, using Shimano Nexus internal gears with 8 gears, this bike could not be easier to ride.
Shimano hydraulic disc brakes will keep you safe 24/7.
With rear rack, lights, mudguards, front suspension and kickstand you will be ready for any situation.
Useful Information
At Kalkhoff, you can combine different drive systems, frames, colours and many other components to create the perfect bike for you.
Equipment level:
- EXCITE Top equipment with well-thought-out details and the best and most exclusive components
- ADVANCE Best value for money for the most demanding requirements
- MOVE Our strong baseline: always ready for a wide variety of uses
Special equipment:
- XXL Extra strong frames and components for total permissible weights of up to 170 kg.
- BELT Thanks to the belt drive system, dirt, squeaking, rust and oily fingers are a thing of the past. For unadulterated cycling pleasure at all times.
- PURE The pared-down variant. Clean design and an uncluttered appearance for a confidently stylish urban look.
The total permissible weight of our bikes is 130 kg. Bikes with “XXL” and “Plus+” in their names even offer you a load capacity of up to 170 kg. The total permissible weight is calculated using the following formula: Weight of bike + weight of cyclist + weight of additional load = 130 kg or 170 kg
There is no universal answer to this question. There are many different factors that can affect the range. These include, for example, the assistance level, your cycling behaviour, your weight, the tyre pressure and the ground conditions.
No. Most batteries contain lithium-ion cells and can be charged for as little time as you like. Interruptions will not damage the batteries either.
You can charge your battery for as little time as you like, no matter what its current charge is. Interruptions will not damage the battery either. In other words, there is no memory effect. However, you should definitely make sure that you only use the correct charging device.
Yes, you can remove all batteries from the frame.
Specs
| MOTOR |
Bosch Active Line Plus 36 V / 250 W / 50 Nm |
| DISPLAY |

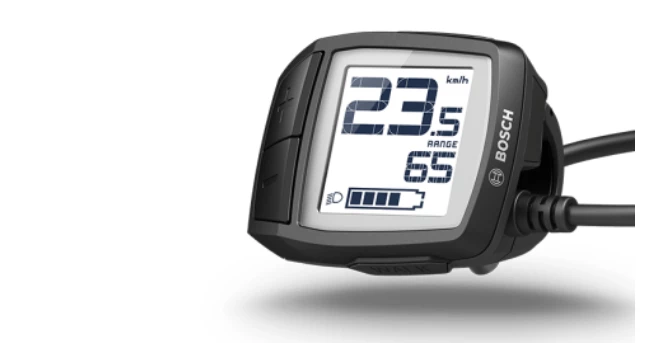

Bosch Purion, LCD display with walk assist |
| BATTERY |
Bosch PowerTube Li-lon 36 V/ 500 Wh |
| DRIVE SYSTEM | Bosch |
| SHIFTING SYSTEM |
Shimano Nexus, 8-speed |
| SHIFTER | Shimano Nexus |
| CRANKSET | aluminium |
| GEAR RATIO |
front: 38, rear: 19 |
| BRAKES |
Shimano MT200, hydraulic disc brake |
| BRAKE ROTORS | 180 |
| HEADLIGHT |
Hermans MR GO, LED, 20 Lux |
| TAILLIGHT |
Hermans H-Trace, LED |
| FRAME |
Integrale O.1, aluminium |
| RIMS |
Hochprofil, geost |
| FENDER |
plastic, with edge protector |
| FORK |
SR Suntour NEX E25 HLO,lockout |
| KICKSTAND |
rear stand, adjustable |
| STEM |
Aluminium, adjustable |
| PERMISSIBLE TOTAL WEIGHT | 130 kg |
| HANDLEBAR |
Tour, Aluminium |
| SADDLE |
Selle Royal Nuvola |
| REAR DERAILLEUR | N/A |
| SEATPOST | Aluminium, rigid |
| PEDALS |
Comfort, aluminium |
| FRONT HUB |
Shimano TX505 with QR |
| CARRIER | Tour, aluminium |
| GEAR SYSTEM | gearhub |
| BRAKE | disc brake |
| CHAIN | KMC Z1 EPT, anti-rust coating |
| TRAVEL FORK | 63 mm |
| GRIP DESCRIPTION | ERGON GC10 |



















Reviews
There are no reviews yet.
