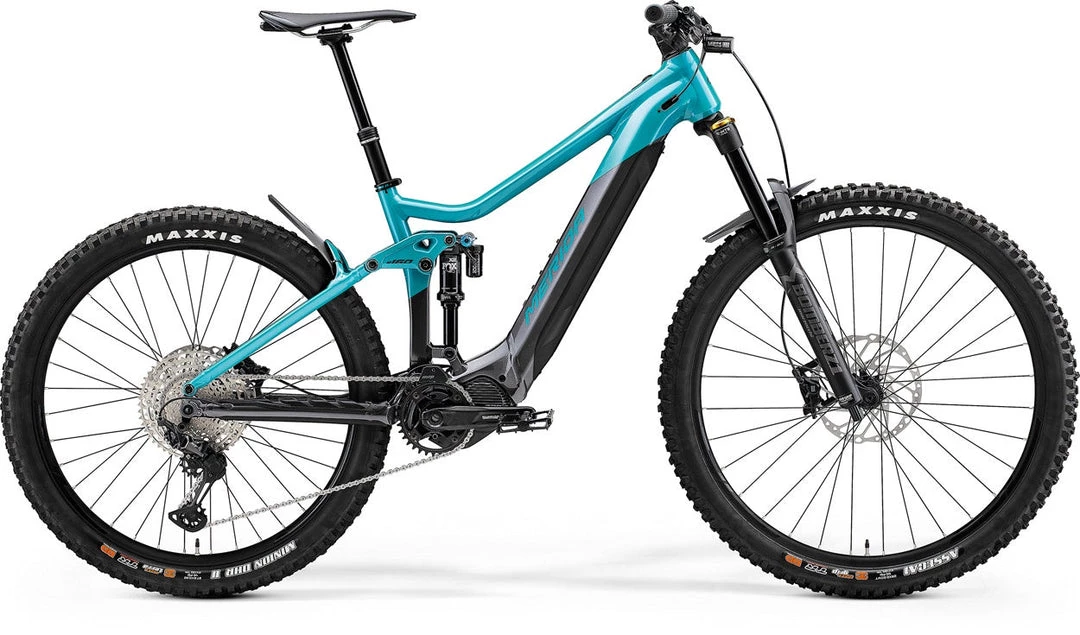

A master in all categories. The MERIDA eONE-SIXTY 700 strikes a fine balance between composure and agility, delivering an impressive performance on all types of descents yet still offering lots of comfort on long rides. Regardless of your riding skills, the MERIDA eONE-SIXTY is an excellent all-rounder and only reveals some weaknesses uphill. The Shimano EP8 motor is neatly integrated into the well-thought-out and high-quality frame.

SHIMANO’S EP8

Comes equipped with the new EP8 motor from Shimano STEPS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

INTERNAL BLOCK

First introduced in 2015, the e-bike version of the ‘Internal Block’ is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

SATELLITE POINTS

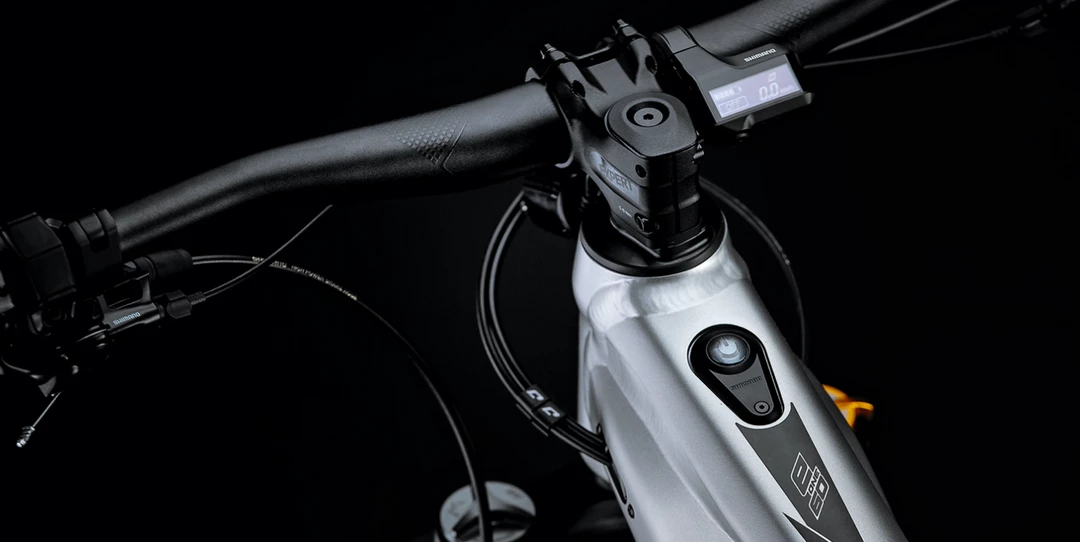

The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.

CLEVER WHEELS

To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5″ tyre and a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction.

WATER CARRIER

Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.

Technologies

HFS – HYDRO FORMING SYSTEM

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.

X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.

INTERNAL CABLE ROUTING
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

RACELITE 61 ALUMINIUM

We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.

K-MOUNT

Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

CASTING MOTOR BRACKET

Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.

INTERNAL BLOCK

First introduced in our 2015 NINETY-SIX, the new version of the ‘Internal Block’ is incorporated directly in the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

ENERGY GUARD TWIST

Twist lock mechanism that is located at the top end of the ‘Energy Guard’ battery cover, for easy locking and unlocking of the protective internal battery cover.

Specs

FRAME	FRAME eONE-SIXTY LITE III material: aluminium 150mm suspension travel 27.5×2.8″ max. wheelsize 148x12mm axle standard intube max. 630 Wh
FRAME SIZE	XS, S, M, L, XL

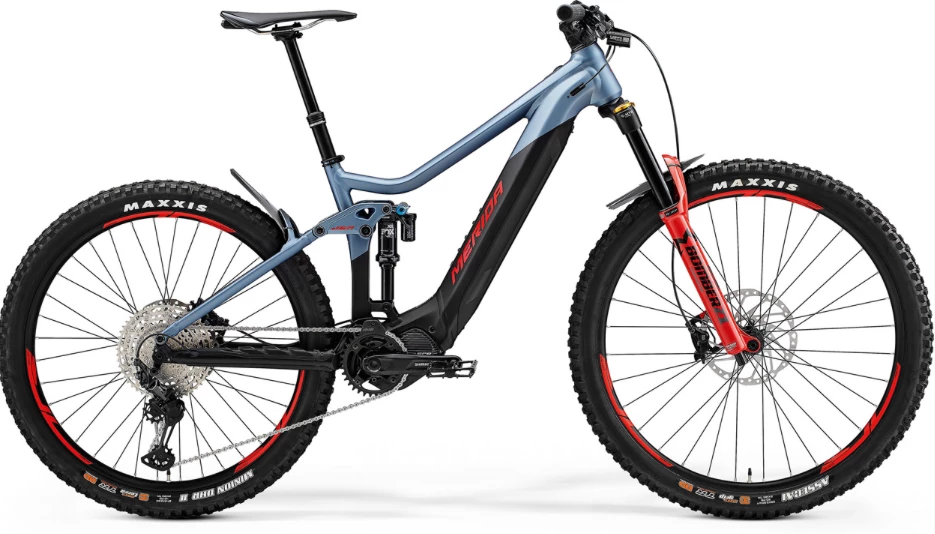

COLOR	MATT STEEL BLUE/BLACK (RED)
FORK	Marzocchi Z1 Ebike+ Air 160mm suspension travel Tapered 51mm fork offset 29×2.6″ max wheelsize
SHOCK	FOX Float DPX2 Performance platform
BRAKES	Shimano SLX 4 piston
ROTORS	Shimano RT64 / Shimano RTEM600 203 mm
HEADSET	MERIDA-8152
HANDLEBAR	MERIDA EXPERT eTR 780mm width 20mm rise
HANDLEBAR STEM	MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes
GRIP	MERIDA EXPERT EC
DERAILLEUR (R)	Shimano XT RDM8100 Shadow+ 12
SHIFTERS	Shimano SL -MT500-IL / Shimano DEORE M6100 12
SEAT POST	MERIDA EXPERT TR 30.9mm diameter 0mm setback XS: 125mm travel seatpost – S/M 150mm travel seatpost – L/XL 170mm travel seatpost
SEAT CLAMP	MERIDA EXPERT clamp
SADDLE	MERIDA EXPERT CC V-mount
PEDAL	VP VPE-527
CHAIN	CN-M6100
CHAINWHEEL	Shimano CRE80-12-B 34 teeth Shimano FCEM600
CRANK	Shimano FCEM600 165 mm for all sizes
FREEWHEEL	Shimano M6100 10-51 teeth 12 speed
BOTTOM BRAKET	included
HUBS	Shimano SLX 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub, 36 spoke holes Centerlock
RIM	MERIDA EXPERT TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)
TYRE FRONT	Maxxis Assegai 29×2.5 “ fold TR DD 3C MaxxGrip
TYRE REAR	Maxxis Agressor 27.5×2.5″ fold TR DD Dual
AXLES	MERIDA EXPERT TR including removeable lever, 6/4mm allen key
SPOKES	Black stainless

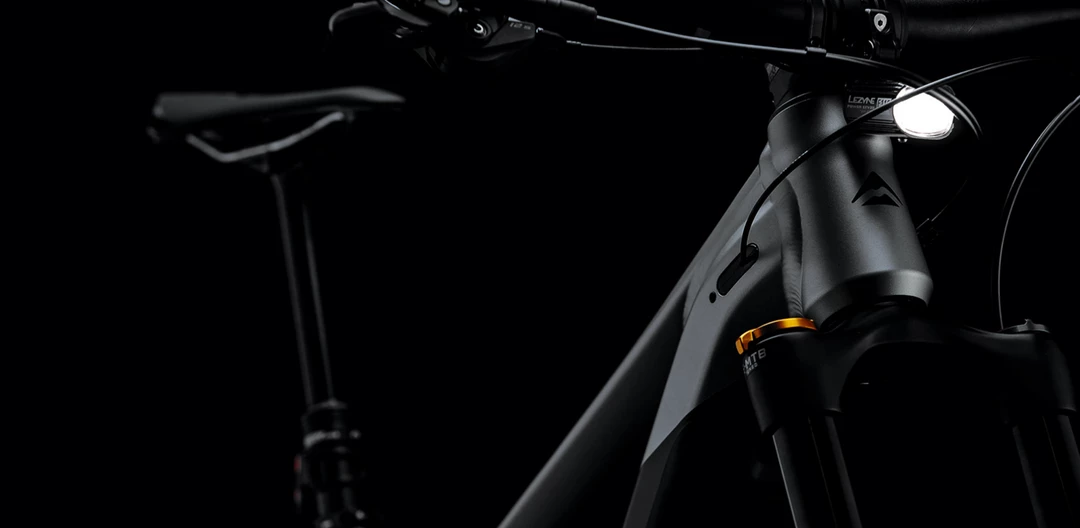

LIGHT FRONT	LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
LIGHT REAR	USB REAR Light CG-214RG
FENDER	C093-02F + C093-02R
DRIVE UNIT	Shimano EP8 85Nm
BATTERY	Shimano E8036 630Wh / E8035 504Wh XS
DISPLAY	Shimano SC-E7000
WEIGHT	24.04 kg weighed with 29″ wheels and at frame size M, without pedals, incl. lights
MAX. WEIGHT	140 kg
