Hot new design from Merida in the Espresso range. Integrated batteries for that stealthy and clean look and finish.

eSPRESSO

YOUR E-BIKE PARTNER FOR AROUND TOWN

The 2021 eSPRESSO is dominated by an exciting range and power upgrade – thanks to the new internal 630 Wh battery and the option for the more sporty rider, to go for a Shimano EP8 equipped model. The modern in-tube battery design in combination with the purposeful and hugely comfortable geometry as well as the seamless integration of the whole spectrum of Shimano’s powerful STePS motors sets the eSPRESSO apart from other e-bikes.

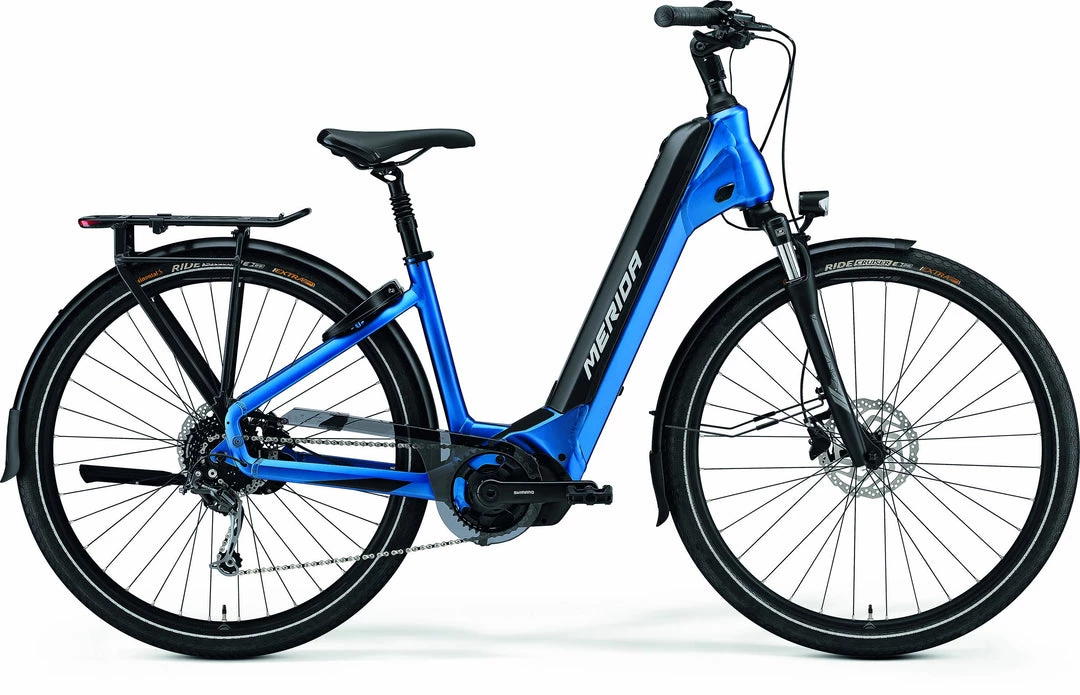

eSPRESSO CITY

ASSISTED LOW STEP-THROUGH COMFORT

Our hugely popular and versatile low step-through eSPRESSO is getting some exciting upgrades for 2021. All models (except the 300 SE) will feature the ‘Energy Cradle’ frame design that holds the new 745 Wh from Simplo or 630 Wh battery from Shimano and will have an even lower and wider step-through. The new frame is available in derailleur drivetrain and hub gear version and maintains its excellent frame stiffness. The eSPRESSO CITY’s modern design, in combination with the purposeful and hugely comfortable geometry as well as the seamless integration of the whole spectrum of Shimano’s powerful STePS motors (including the new and highly powerful EP8 power unit), sets the CITY apart from other city e-bikes. A low centre of gravity, paired with a strong and stiff frame enables the eSPRESSO CITY to deliver fantastic riding characteristics in any situation. Mounting and dismounting the eSPRESSO CITY is very easy due to its extremely low stepthrough height.

Features

TWO FRAME OPTIONS

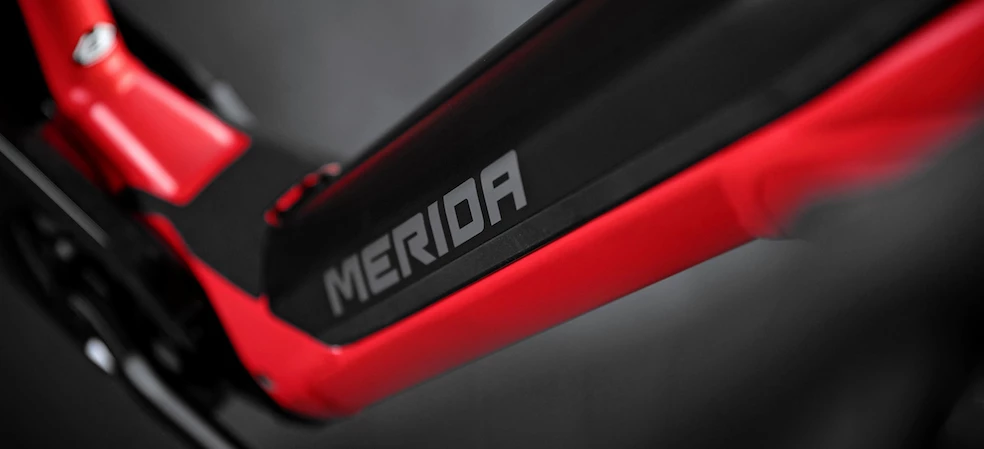

The eSPRESSO CC is available with the new ‘Energy Cradle’ frame, where the 745 or 630 Wh battery (depending on model) is housed on top of the downtube, and can be accessed via a removable aluminium battery cover, or as a semi-integrated frame, where the 504 Wh battery is integrated into the lower part of the downtube.

EXCELLENT FRAME STIFFNESS THROUGH ENERGY CRADLE

Unique cradle like shaping of the downtube to accommodate the battery, without losing the all important frame stiffness of our low step-through frames. By not adding cutouts to the downtube, we can maintain the outstanding frame stiffness, that prevents our low step-through bikes from wobbling under load. Paired with an aluminium battery cover, the frames give the impression of an integrated battery, without sacrificing stability and battery accessibility. The tapered head tube, the large tube diameters and the forged motor bracket all contribute to achieving a safe and precise riding experience.

FULLY EQUIPPED

The eSPRESSO CC come fully equipped with fenders, kickstand, carrier and lights. Ready for any outing you can think of.

OPTIMISED CENTRE OF GRAVITY

A centrally positioned low centre of gravity, which has been achieved through the positioning of the battery in the lower position of the downtube as well as the location of the Shimano motors, enables to deliver fantastic riding characteristics in any situation which are extremely important in particular in wave low step through frames which have the tendency to chatter and jitter when power is applied.

650B WHEELS WITH BIG VOLUME TYRES

The decision to use 650B wheels with 2.25″ off-road tread pattern for our CC models is not just a design feature but has more practical reasons. To add big volume tyres to an e-bike provides increased comfort but also extra traction and therefore more safety reserves. Small and even bigger bumps can easily be rolled over, and a big volume tyre provides more puncture protection compared to a narrow one.

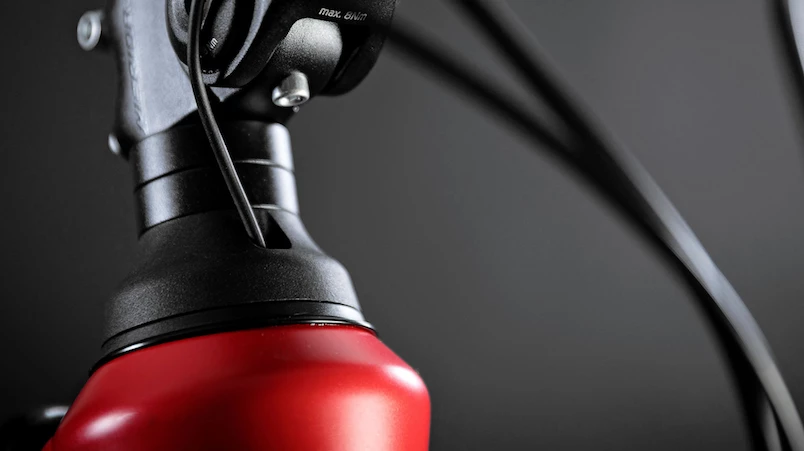

INTERNAL CABLE ROUTING

We feature internal cable routing on all models. Cables are routed through the frame, entering and exiting through smooth sockets. Only a clever system for our internal guiding and fixing guarantees reliable and rattle free routing, whilst the cables are protected from moisture and dirt and gives the bike a cleaner look.

LOW STEP-THROUGH

The Shimano mid-mounted motor, in combination with the forged motor bracket provides one of the lowest step-through heights in the market.

Specifications

01. FRAME	eSPRESSO CITY LITE II; MAT aluminium;
02. SIZES	XS(38)-S(43)-M(48)-L(53)-XL(58)
03. FORK	Suntour NEX E25; Coil; 63 STR
04. DRIVE UNIT	Shimano E6100; 60Nm
05. BATTERY	Shimano E8035; 504Wh
06. BATTERY CHARGER	Shimano EC-E6002; 2A
07. DISPLAY	Shimano SC-E5000
08. REAR DERAILLEUR	Shimano Deore M592
09. SHIFTERS	Shimano Altus M3100
10. BRAKES	Shimano MT-200; 2 piston
11. ROTOR – FRONT	Shimano RT10; 180 mm
12. ROTOR – REAR	Shimano RTEM300; 180 mm
13. CHAINWHEEL	Shimano CRE61; 38 ATC
14. CRANK SIZE	Shimano FC-E6100; 170 mm
15. CHAIN	KMC e9S
16. CASSETTE	Shimano HG200; 11-36 ATC; 9 Speed
17. PEDAL	VP; VPE-891
18. HANDLEBAR	MERIDA EXPERT TK; MAT aluminium; 640 WHB; 35 RHB
19. HANDLEBAR STEM	MERIDA EXPERT TK; MAT aluminium; 31.8 DSH; adjustable
20. STEM SIZE	65 mm-XS/S/M, 90 mm-L/XL
21. SEAT POST	MERIDA EXPERT TK; 30.9 DSP; 15 SSB; 40 SST
22. SADDLE	MERIDA EXPERT TK; V-mount
23. HUB – FRONT	Shimano TX505; 100×9 WHF; 32 SPH; Centerlock
24. HUB – REAR	Shimano TX505; 135×9 WHR; 36 SPH; Centerlock
25. AXLE – REAR	MERIDA COMP TR; including removeable lever, 6/4mm allen key
26. RIMS	MERIDA COMP TK; 20 IWR; MAT aluminium
27. TYRES	Continental RIDE Cruiser; 622-50; wire; reflecting line
28. CARRIER	MERIDA MIK Carrier with Spring clip & Spanninga rear light
29. FENDER	Sunnywheel SW-FA311-60E1 (MSB)
30. KICKSTAND	Atranvelo ED-100-PC
31. LIGHT – FRONT	Herrmans H-BLACK MR4 E
32. LIGHT – REAR	Spanninga Commuter GLOW XE
33. FRAME LOCK	Abus 4650 XL
