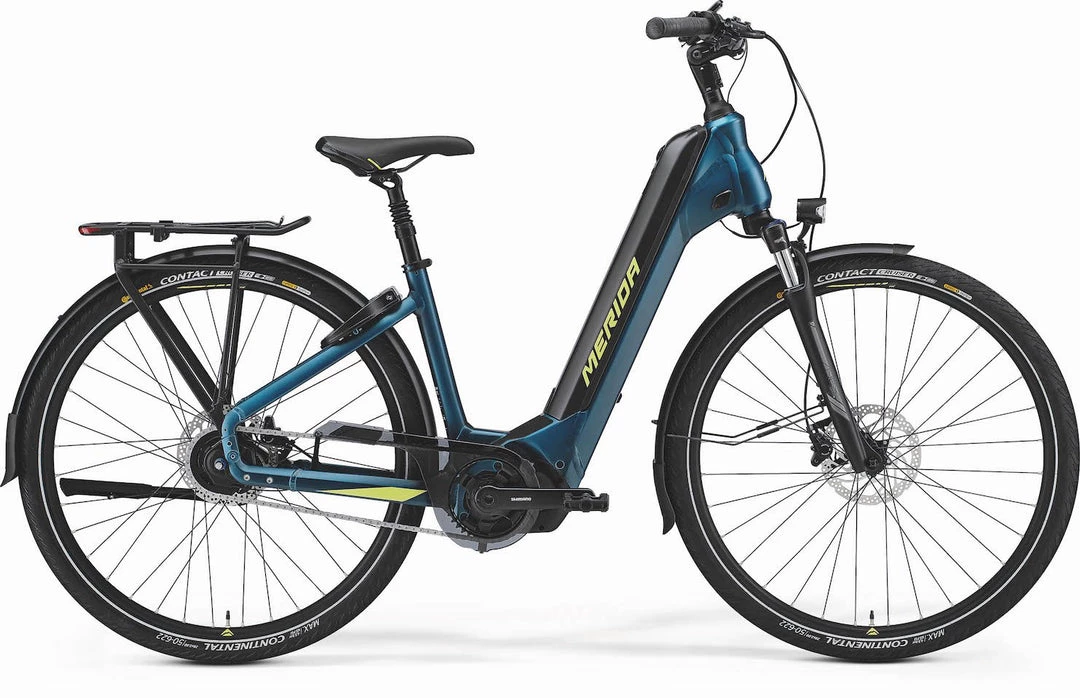

Merida eSPRESSO CITY 700 EQ W 2022

With automatic electronic shifting gears and the new 5 speed Shimano Nexus hub gears designed specifically for ebikes. Nice! With the option of manual of full automatic shifting gears. Wow!

We are still waiting to find out when this model is landing At this point at the end of 2021

OPTIMISED CENTRE OF GRAVITY

Based on the central position of the battery in front of the seat tube and the low position of the Shimano motor, we were able to achieve an optimum centre of gravity. The low and well-positioned centre of gravity provides the bike with outstanding riding characteristics which are extremely important in particular in wave low step-through frames which have the tendency to chatter and jitter when power is applied.

UPDATED FRAME

In the city/trekking sector, hub gear drivetrains have become more or less the standard. For the model year 2020, we have updated the hub gear frames with slider dropouts for smooth and easy chain tensioning. Furthermore, the dropouts on both frames, hub gear and derailleur drivetrain now have, besides the Racktime interface, standard carrier mounts.

eSPRESSO CITY FRAME

HFS-hydroforming Prolite 66 triple butted aluminium frame based around fast rolling 700c wheels and with commuting and leisure riding in mind. A higher front end and a compact geometry make for a more upright and extremely comfortable riding position. Battery positioned extra low for improved handling. Comes equipped with mudguards, rear rack, side stand, lock and lights.

INTERNAL CABLE ROUTING / SMART ENTRY

We feature internal cable routing on all our eSPRESSO models. Cables are routed through the frame, entering and exiting through smooth sockets. Only a clever system for our internal guiding and fixing guarantees reliable and rattle free routing and gives the bike a cleaner look.

EXCELLENT FRAME STIFFNESS

The outstanding frame stiffness has a strong influence on the riding characteristics of wave low step through frames. The tapered head tube, the large tube diameters, the forged motor bracket as well as the 142×12 mm through rear axle all contribute to achieve a safe and precise riding experience.

LOW STEP THROUGH

The Shimano mid-mounted motor in combination with the forged motor bracket provides the eSPRESSO CITY with one of the lowest step through heights in the market.

FAST ROLLING 700C WHEELS

The whole range rides on fast rolling 700c wheels, ideal for rides on roads, lanes and smooth tracks. We fit tyres with reflective sidewalls and puncture protection that will get you to your destination quickly and safely.

Video

Specs

01. FRAME	eSPRESSO CITY LITE III; MAT aluminium;
02. SIZES	XS(38)-S(43)-M(48)-L(53)
03. FORK	Suntour NEX E25; Coil; 63 STR
04. DRIVE UNIT	Shimano E6100; 60Nm
05. BATTERY	Shimano E8036; 630Wh
06. BATTERY CHARGER	Shimano EC-E6002; 2A
07. DISPLAY	Shimano SC-E6100
08. REAR DERAILLEUR	N/A
09. SHIFTERS	Shimano SW-E6010-R
10. BRAKES	Shimano MT402-3A; 2 piston
11. ROTOR – FRONT	Shimano RT30; 180 mm
12. ROTOR – REAR	Shimano RTEM300; 180 mm
13. CHAINWHEEL	Shimano CRE61; 38 ATC
14. CRANK SIZE	Shimano FC-E6100; 170 mm
15. CHAIN	KMC Z1eHX
16. CASSETTE	Shimano CS-C7000; 30 ATC; 1 GER
17. PEDAL	VP; VPE-891
18. HANDLEBAR	MERIDA EXPERT TK; MAT aluminium; 660 WHB; 15 RHB
19. HANDLEBAR STEM	MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
20. STEM SIZE	90 mm-XS/S/M, 110 mm-L/XL
21. SEAT POST	MERIDA EXPERT TK; 30.9 DSP; 15 SSB; 40 SST
22. SADDLE	MERIDA EXPERT TK; V-mount
23. HUB – FRONT	Shimano M4050; 100×9 WHF; 32 SPH; Centerlock
24. HUB – REAR	Shimano Nexus Inter-5E; 135×9 WHR; 36 SPH; Centerlock
25. AXLE – REAR	MERIDA COMP TR; including removeable lever, 6/4mm allen key
26. RIMS	MERIDA COMP TK; 20 IWR; MAT aluminium
27. TYRES	Continental RIDE Cruiser; 622-50; wire; reflecting line
28. CARRIER	MERIDA MIK Carrier with Spring clip & Spanninga rear light
29. FENDER	Sunnywheel SW-FA311-60E1 (MSB)
30. KICKSTAND	Atranvelo ED-100-PC
31. LIGHT – FRONT	Herrmans H-BLACK MR4 E
32. LIGHT – REAR	Spanninga Commuter GLOW XE
33. FRAME LOCK	Abus 4650 XL
