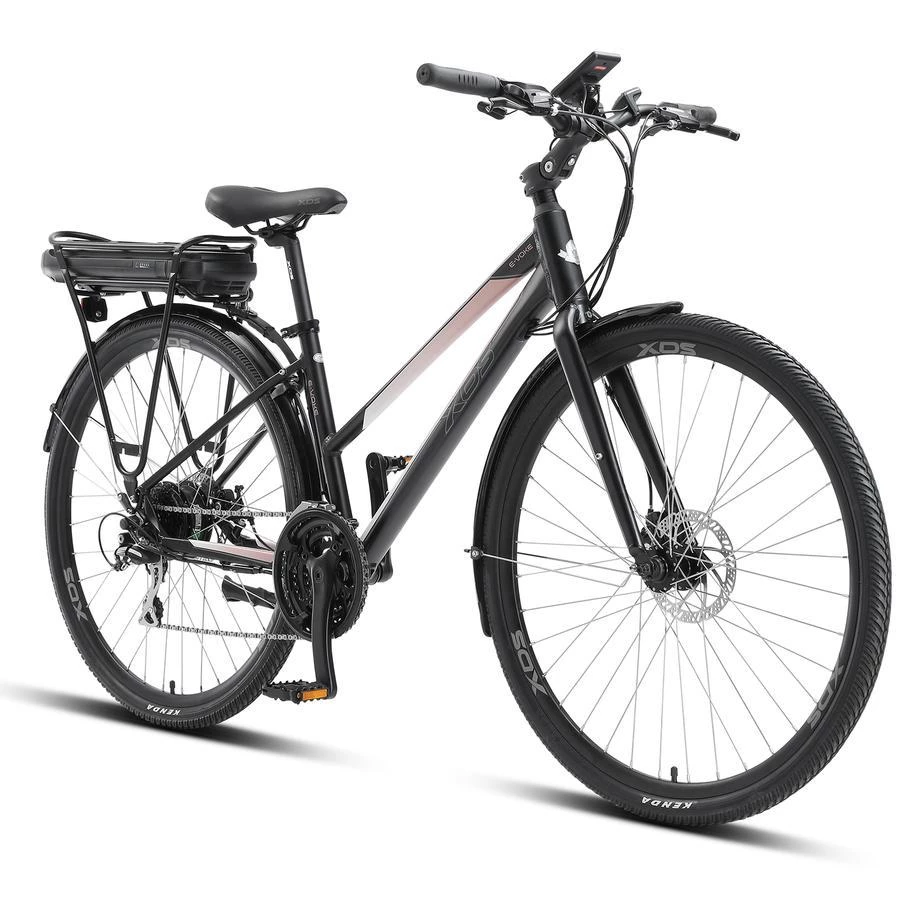

Step Through Ebikes XDS E-Voke Electric Bicycle – Mixtie

Original price was: $422.00.Current price is: $92.99.

The quality you expect, the service you deserve.

Multiple safe payment methods

Your questions, our prompt answers.

100% High-Quality Guarantee

The E-VOKE comes with a reliable 250w Rear Hub Drive Motor, Tektro Disc Brakes and a nimble XDS Alloy Frame to keep it effortless and reliable in any environment.

Specifications

COLOURS	Black
FRAME SIZE	18″
FRAME	XDS Alloy
FORK	Steel 700c
HANDLEBAR	XDS Alloy (W：620mm 6°H：30mm)
GRIP	Rubber Comfort Grips
STEM	HL Alloy Adjustable. (φ28.6mm E:105mm H:41mm -10+50°φ25.4mm)
SEAT POST	XDS Alloy (Φ27.2×350mm)
SEAT CLAMP	HL Anodised Alloy
SADDLE	Cionlli Comfort Saddle
PEDALS	Alloy Cage, PP Body, 9/16″
FRONT BRAKES	Tektro Aries Cable Disc Brake
REAR BRAKES	Tektro Aries Cable Disc Brake
BRAKE LEVERS	Tektro Auriga Cast Aluminium Two Finger Lever & Bracket

GEAR SHIFTER	Shimano Acera ST-EF500 EZ-Fire Plus 8 Speed
REAR DERALLIEUR	Front: Shimano Altus FD-M310 Rear: Shimano Acera MD-360
FREEWHEEL	Shimano Altus CS-HG200 8 Speed Cassette Sprocket. 11-32t
CHAINWHEEL & CRANKS	Shimano Tourney FC-TY501, 175mm, 48X38X28T
CHAIN	KMC (1/2″×3/32″×116L)
HEADSET	(φ28.6×φ44×φ30mm 10PCS H=22)
FRONT HUB	KT Alloy (13G×36H M9×100×108mm)
REAR HUB	See Electrical Specs below
BELL	Alloy/Plastic
SPOKES	Stainless Steel (13G)
TYRE	Kenda Hybrid 700c x 40c
RIM	XDS Alloy (700C × 622 × 19 × 13G × 36H)

MOTOR	Bafang. RM G120.250.DC, 700C, 25km/h, 36V/250W,
DISPLAY	Bafang C10.UART LCD Display, DC 36V, 0-5 Modes
SENSOR	Bafang. SR PA01.12.S

CHARGER INFORMATION	Phylion. CZ2AG7J24 Input: 100-240V 1.6A(MAX) 47/63HZ / Output:42V 2A
MOTOR CABLE	Bafang. CR S105.250.SN. 700″，36V-250W，15A，25km/H, 0-5 level
BATTERY	Phylion. SF-03 CB5A0181 36V/11Ah
