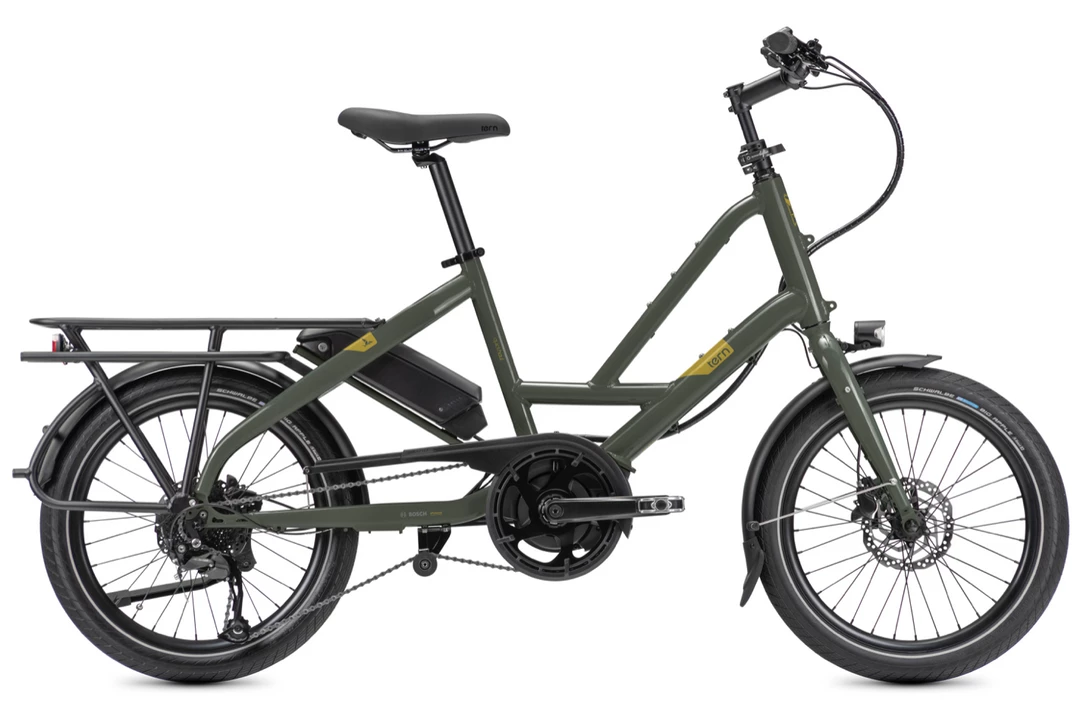

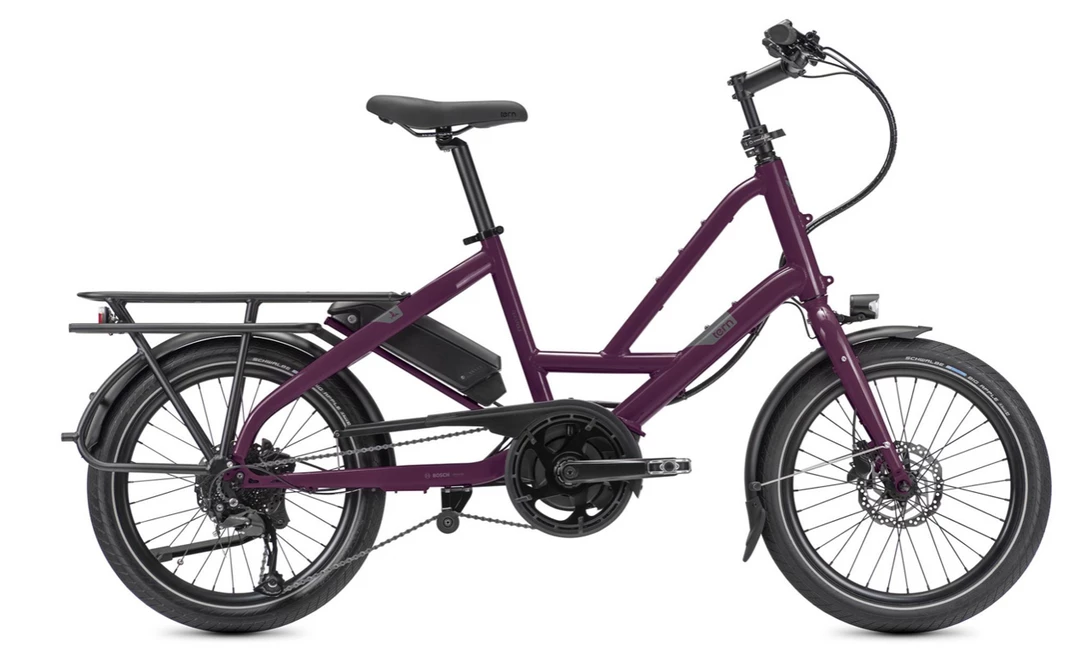

TERN QUICK HAUL P9

Simply Capable
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.

Designed to Be Used—Often
The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.

The Carrying Capacity You Need
The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.

Modular & Customizable
Choose from a vast array of accessories to turn your Quick Haul into the ideal tool for all your jobs. The Quick Haul’s accessories ecosystem offers perfect-fit options for your commute, your kid’s school run, doggy playdates, errands, and lots more.

Shareable
If you were buying a car, you’d assume your spouse, partner, teenager, and best friend could use it, too. The same should go for your e-bike, which is why we outfitted the Quick Haul with an adjustable stem and seatpost to fit riders 150 – 195 cm (4’11” – 6’5”).

Fun to Ride
The Quick Haul features the unbeatably smooth Bosch motor system paired with stable yet responsive geometry. The result: a bike that’s as fun to ride as it is useful. The cockpit offers a comfy riding position similar to your favorite hybrid or trekking bike—perfect for turning everyday chores into mini adventures.

Why the Quick Haul?

What Makes it a P9?

• Bosch Performance Line Cruise motor provides up to 65 Nm of torque and 300% support

• 1×9-speed Shimano Alivio groupset with trigger shifter

Quick Haul Highlights

• Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack

• Fits riders 150 – 195 cm (4’11” – 6’5”) tall, with adjustable seatpost and Speedlifter stem (no tools required)

• Lots of available kid- and cargo-carrying accessories—easily create your perfect setup

• Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier

• Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast

• Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

More Room for Cargo
With a heavy-duty, extra-long rear rack and an optional front rack, the Quick Haul can carry up to 400% more than the average city bike.

Best for Babies & Big Kids
The rear rack fits a child seat or “big kid” seating option. A low-to-the-ground rack keeps the bike from getting tippy when your child is on board. For more information on recommended passenger height and weight, check out our Passenger System Guide.

Custom Configurations
Create your perfect setup with lots of flexible accessories. Smoothly transition between carrying the kid, the dog, the groceries, and whatever else your day demands.

Bosch System
Equipped with the Bosch Active Line Plus or Bosch Performance Line motor system, for an excellent ride and quality you can count on.

More Stability
A longer wheelbase than standard city bikes and a lower center of gravity create a more stable ride, especially when carrying a load.

Low Step-Through Frame
Very low 490 mm (19″) standover height makes mounting and dismounting safer and easier, even when carrying loads (plus, it’s wardrobe-friendly).

Easy to Store
The Quick Haul can park and roll vertically to fit in small spaces (including elevators). It’s got a footprint about the size of a potted plant.

Easy to Maneuver
The Quick Haul is shorter than a standard bike, so it’s easier to maneuver through city obstacles, narrow spaces, and crowded places.

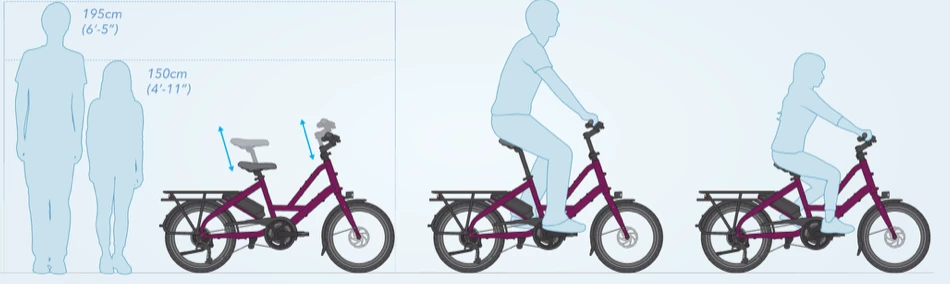

Fits the Family
The seatpost and Speedlifter stem move up and down so anybody from 150 – 195 cm (4’11” – 6’5″) can adjust the bike to fit perfectly.

Specs

SPEEDS:1 x 9

WEIGHT:22.9 kg (50.5 lb)

GEAR INCHES:31″ – 95″ (2.45 – 7.57 m)

FOLDING TIME:10 sec

FRAME SIZES:One size

DISTANCE: SEATPOST TO HANDLEBAR:60 – 64 cm (23.6 – 25.2 in)

DISTANCE: SADDLE TO PEDAL:68 – 110 cm (26.8 – 43.3 in)

SUGGESTED RIDER HEIGHT:150 – 195 cm (59.1 – 76.8 in)

MAX GROSS VEHICLE WEIGHT:150 kg (330.7 lb)

MAX RIDER WEIGHT:120 kg (264.6 lb)

FRAME:Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg

FORK:Cargo, steel, EFBE approved: 150 kg

STEM:Speedlifter, 150 mm extension, 3D Forged stem, 31.8

HEADSET:TH, cartridge bearings

HANDLEBAR:Low riser, 31.8, 6061-AL

GRIPS/BAR TAPE:Velo ergonomic, lock-on

SADDLE:Velo Comfort

SEATPOST:31.6 mm, 6061-AL, micro-adjust clamp

SEATPOST CLAMP:Tern Collar

FRONT BRAKE:Shimano, hydraulic disc

REAR BRAKE:Shimano, hydraulic disc

BRAKE LEVERS:Shimano, hydraulic disc

BRAKE CABLE & HOUSING:Shimano, hydraulic disc

FRONT HUB:Shimano disc

REAR HUB:Shimano disc

SPOKES AND NIPPLES:Stainless steel

RIMS:Kinetix Comp, for disc

TIRES:Schwalbe Big Apple, 55-406, puncture protection, Reflex

SHIFTER(S):Shimano Alivio, 1 x 9 spd, trigger

REAR DERAILLEUR:Shimano Alivio Shadow

CRANKSET:Tern custom, forged 6061-AL crankarm

CASSETTE/FREEWHEEL:Shimano 11-34T, 9 spd

BOTTOM BRACKET:Motor integrated

CHAIN:KMC for eBike, 9 spd

PEDALS:Urban with non-slip surface

SHIFTER CABLE & HOUSING:SP

MOTOR:Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph

BATTERY:Bosch PowerPack 400

DISPLAY:Bosch Purion

RANGE:400 Wh: 53 – 105 km (32.9 – 65.2 mi)

CHARGER:Compact Charger, 100-240V, 2A

BELL:Aluminum

CHAINGUARD:SKS Chainblade

KICKSTAND:Pletscher design, rear mount

LUGGAGE SOCKET:Combo Mount

FRONT LIGHT:Herrmans, 120 lumens

REAR LIGHT:Herrmans

FENDERS:Chromeplastic, stainless hardware

RACK(S):Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity



*We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
