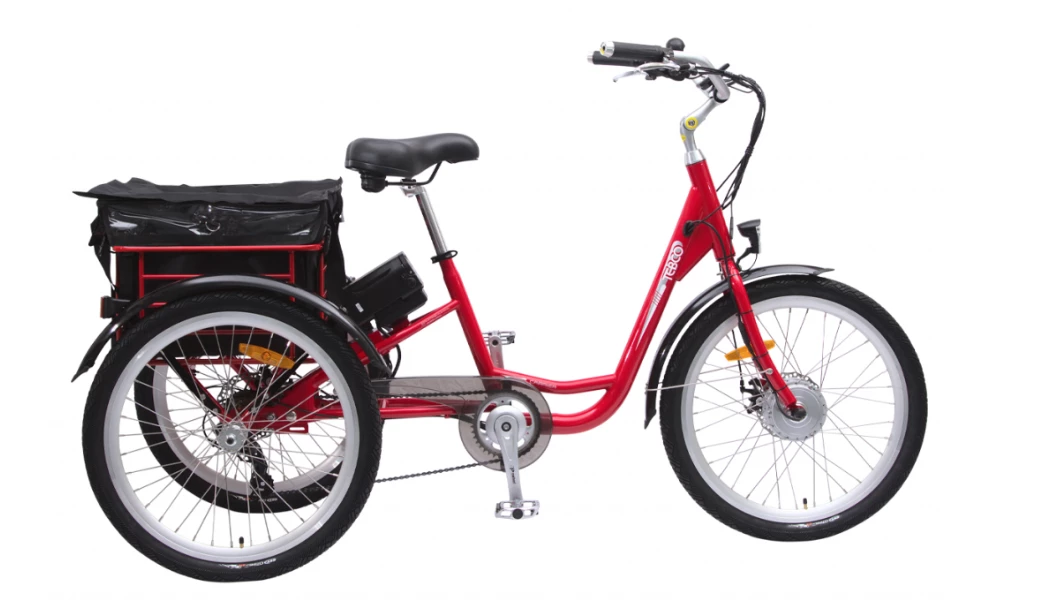

Trikes TEBCO CARRIER – ELECTRIC TRIKE

The riding stability of this tricycle makes it safe and secure for all ages and the huge cargo basket is perfect for shopping

LARGE REAR CARGO BASKET

POWER ON/OFF – PAS UP/DOWN – LOCKING BRAKE LEVERS

LCD TRIP COMPUTER – SPEEDO/ODOMETER – BATTERY INDICATOR

TWIST GRIP ACCELERATOR – 7 SPEED SHIMANO GEARS

FRONT MOUNT 200W BRUSHLESS GEARED MOTOR

10.4AH FRAME MOUNT SAMSUNG LITHIUM BATTERY



Specs

MECHANICAL
Frame	6061 Grade Alloy
Wheel Size	24in 36H Front and Rear
Fork	Daywin Rigid Steel Fork
Handlebar	PROMAX HB-3202
Stem	PROMAX MQ-525
Seatpost	PROMAX SP-222 & 28.6 x 350mm
Seat Clamp	Alloy Quick Release 31.8mm
Saddle	MINGCHENG Susp 290 x 270mm
Shifters	SHIMANO SLM3157RC
Derailleur	SHIMANOARDTY300D
Rims	PARWEIER 25DE 24Inch 36H Double Wall Alloy
Hubs	NUOD Aluminium
Hubs	MODUS Aluminium
Spokes	13g 2.2mm F / 13g 2.2mm R Stainless Steel
Tyres	KENDA K927 24in x 2.125in
Cranks	PROMAX PRO-A38(92) 170MM 38T
Pedals	FEIMIN FP-965A
Chain	KMC Z7 GY/RB/130L
Brakes Front	TEKTRO Aries Mechanical Disc
Brakes Rear	TEKTRO Aries Mechanical Disc
Brake Levers	WUXING 108PPD/4 Locking With Power Cut Off
Mudguards	Black Plastic 24in x 65mm



ELECTRICAL
Motor	DSHENGYI 36V 200W DGW07-32 24in Front Wheel
Controller	15Ah LISHUI Brushless LSW1155-59M
Battery	LG 36V 10.4Ah 40pcs 18650 2600MAh
Battery Life	Up to 800 recharges from flat
Battery Weight	2.4kg
Display Panel	KEY DISPLAY KD51C
Operation Controls	Left Handlebar KD51C Compatible
Twist Grip Acc Assy	Wuxing 158X.T / HT406 Slimline
Pedal Activation	bigstone 12 Magnet Left Crank Mount
Light Front	BUCHEL Uni LED Static Illumination
Light Rear	BUCHEL Edge LED Static Illumination
Charger	Sans 36V 2Amp Lithium AU Compliant
Main Cable	JULET 1T5 Waterproof Quick Release
Audible Warning	HONKA HOOTA Black Synthetic Dome
Max Speed	25kmh
Max Range	60kmh 1:1 Pedal Assist
Tricycle Weight	36kg incl battery

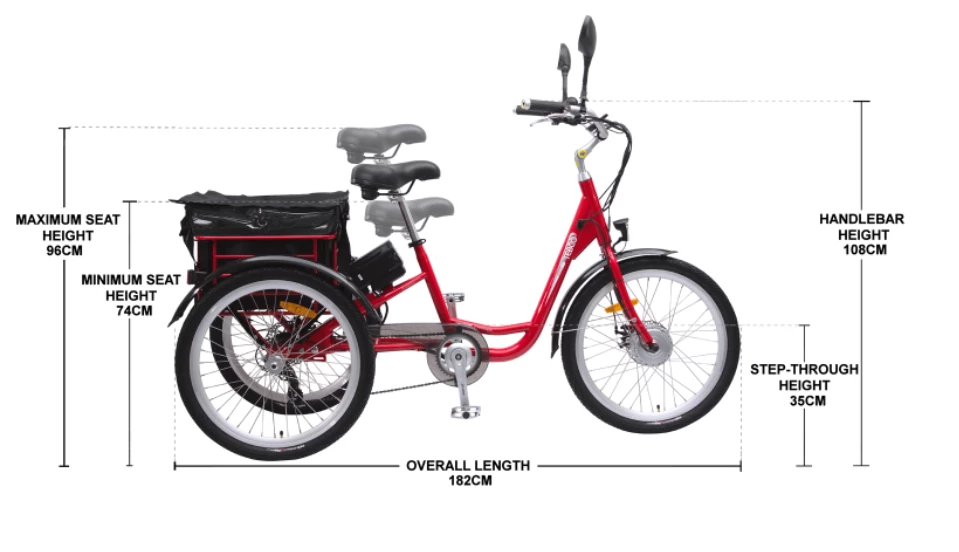

SIZING
Step Over	350mm
Max Seat Height	980mm
Min Seat Height	740mm
Length	1820mm
Width	800mm
