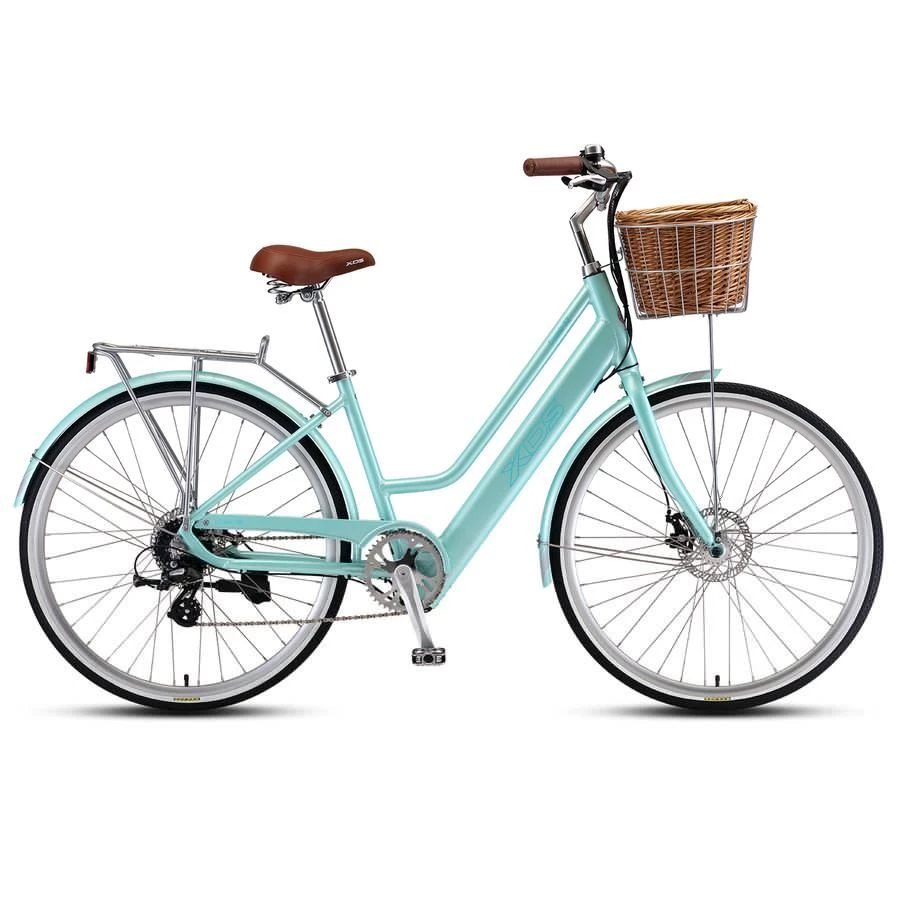

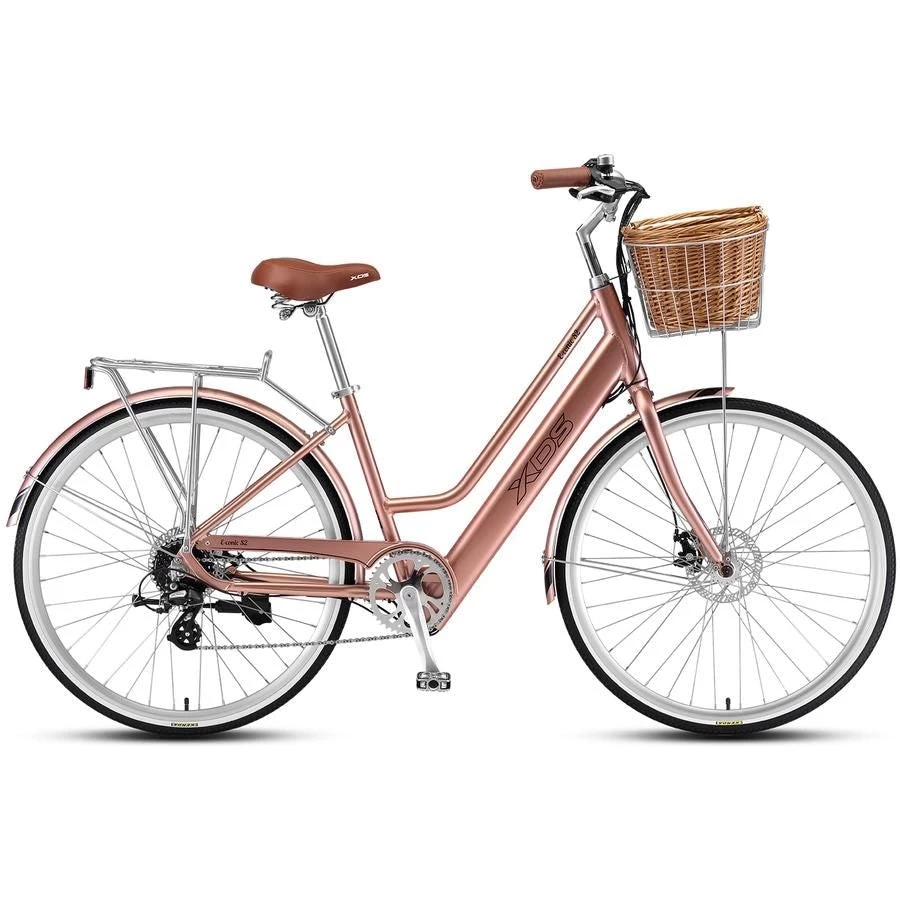

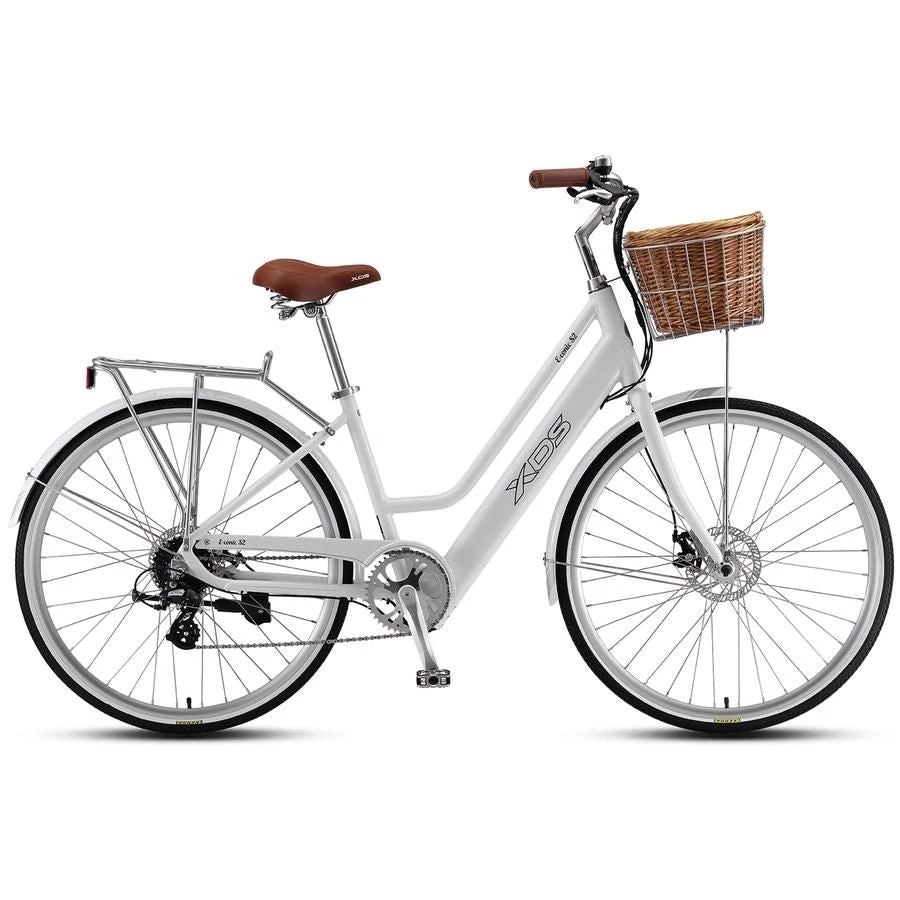

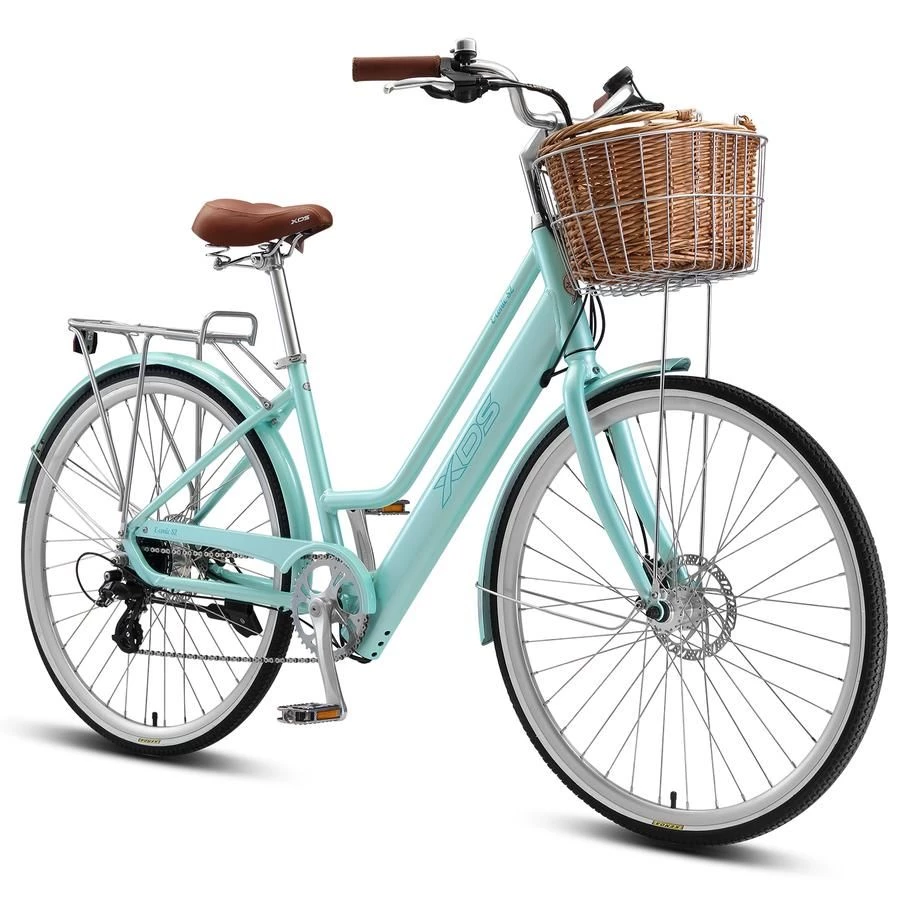

XDS E-CONIC Retro

E-Conic is where vintage meets modern. Capture the glamour of the retro look while getting from A to B, effortlessly. Stylish low step-through frame makes commuting even better, coupled with Shimano Altus 8-Speed and Tektro Disc Brakes for daily reliability.

Vintage Meets Modern

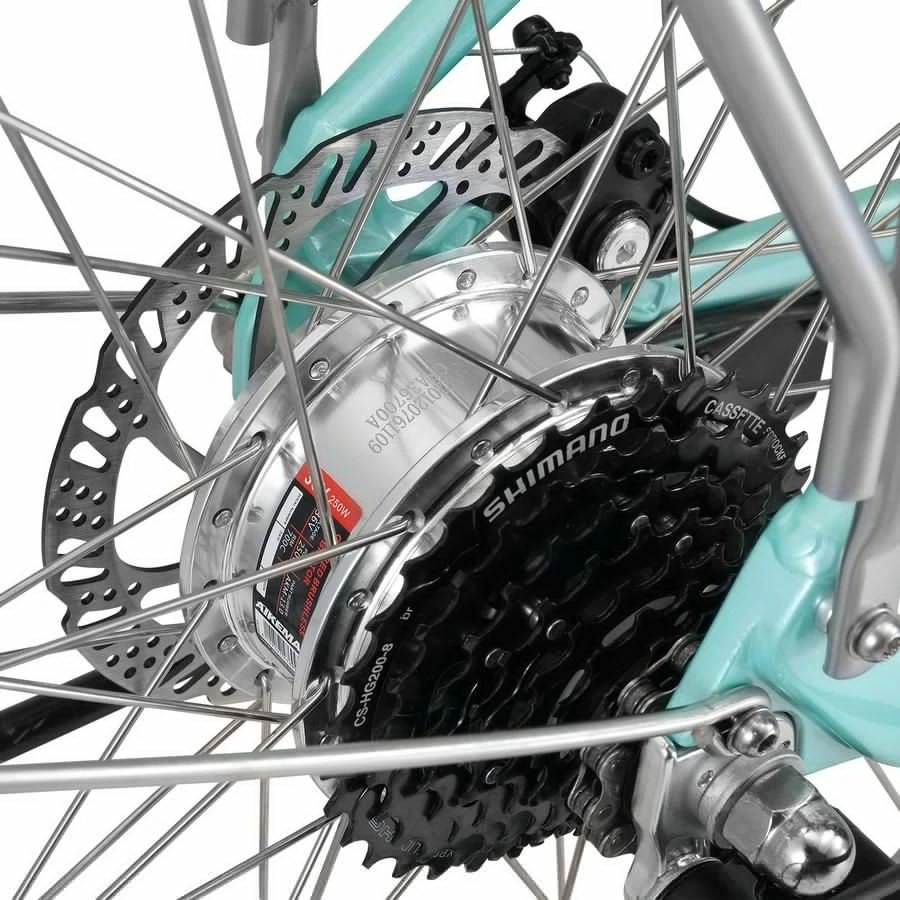

Capture the retro look without sacrificing the ease and comfort of a revolutionary electric bike. Fitted with a 250w Hub-Drive motor to power you through your daily commute or leisurely rides.  Accessible and Manoueuvrable

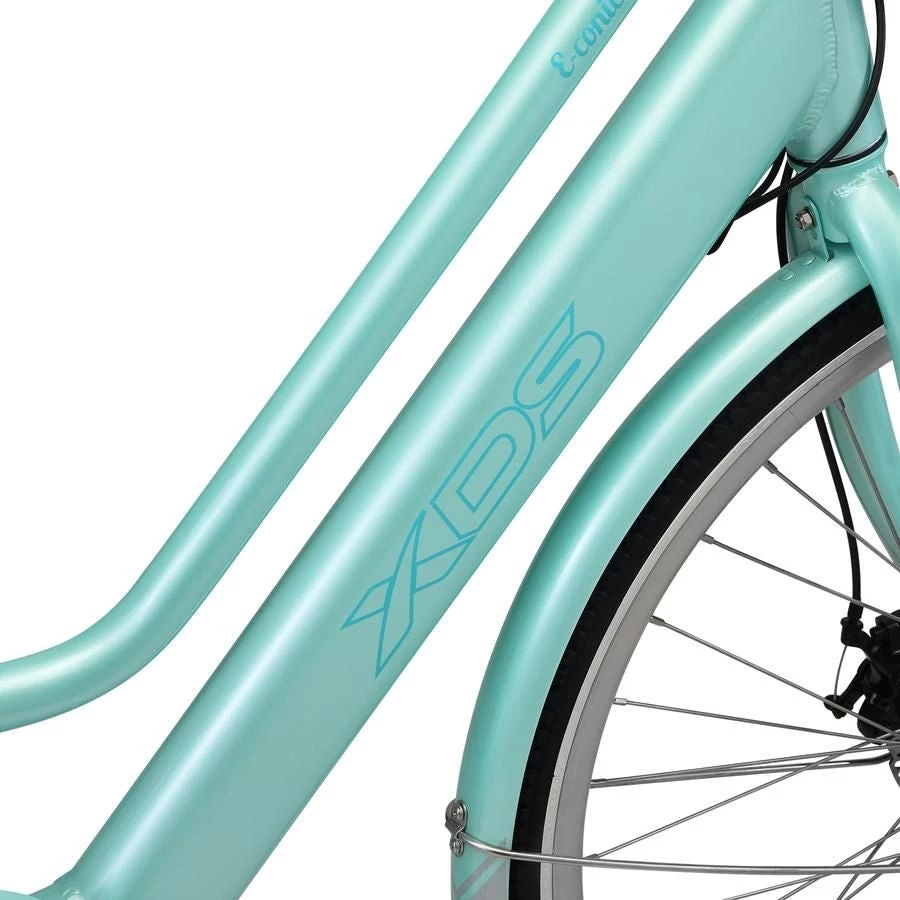

The E-CONIC”™s Low-Step-Through Lightweight alloy frame is simple to both control on the road, and mount/dismount.

Practical & Convenient

A range of additional features make the E-CONIC ideal for riding in any situation including front and rear mudguards, alloy rear rack and front cane basket, practical for any journey.

Lithium Ion Battery

A great electric bike needs a great battery to work. The E-CONIC comes with a big 36v 2200mAh Panasonic cell to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.

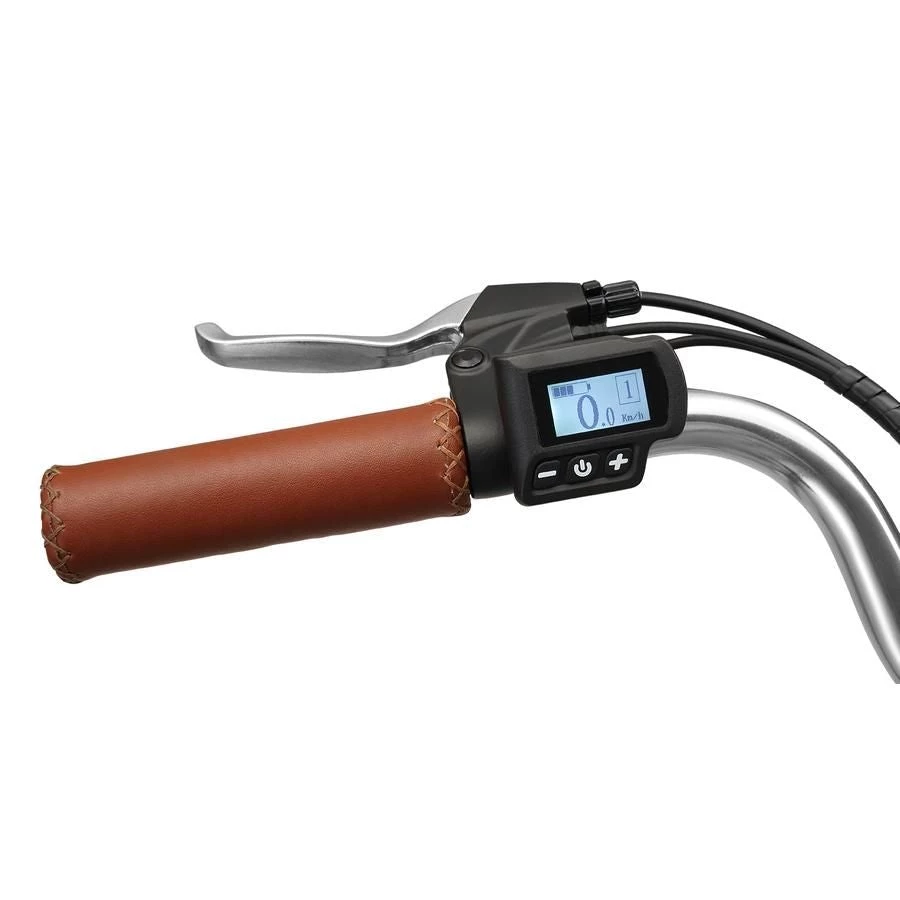

Be in Control

With a large backlit Bafang LCD Display and built-in controller, you’ll be able to see your speed, trip stats (max speed, average speed, trip total and odometer),current power assist & battery charge. Cycle through 5 levels of power assist, with higher numbers providing more motor assistance during pedalling.

Superior Stopping Power

Feel secure coming to a stop with front and rear Tektro Disc Brakes. Riding in wet and muddy conditions, Disc Brakes offer far superior stopping power to rim wall brakes making them the best option for all season riding.

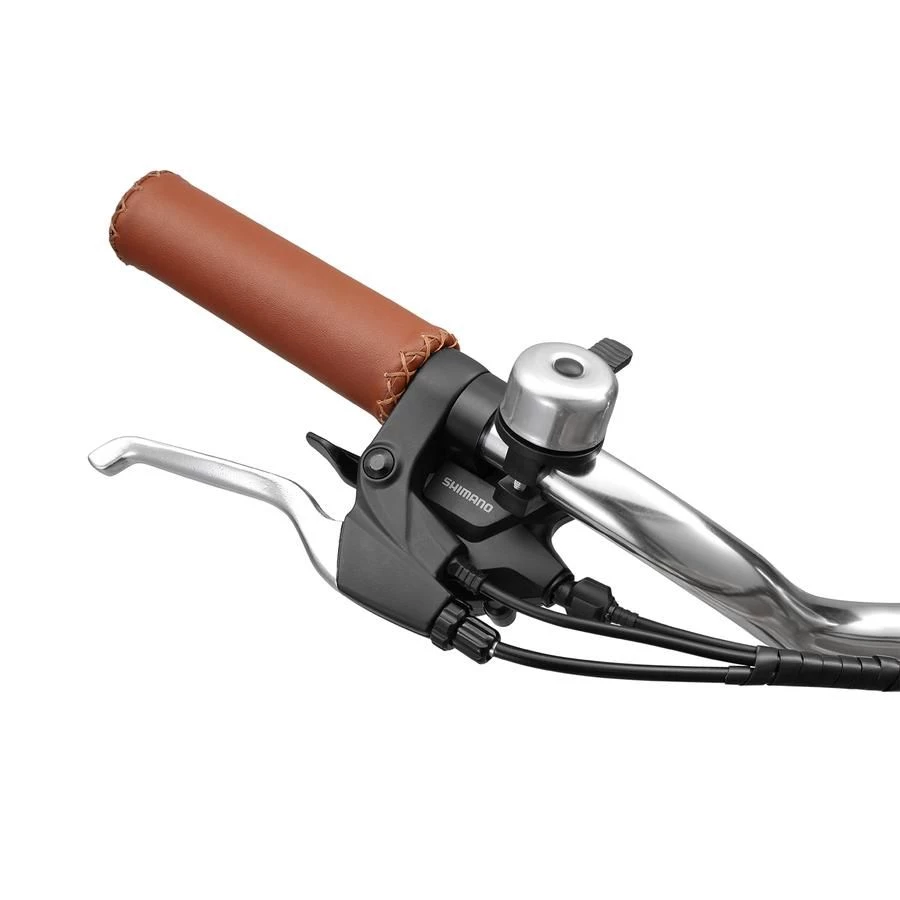

Shimano Altus Drivetrain

Adapt to your terrain easily with an 8-Speed Shimano Altus Drivetrain. Find the perfect gear ratio for climbing through hills or riding across flats

Specifications

FRAME SIZES	17″ and 15″
FRAME	XDS Alloy 700c (HT:ф41xф34x160mm W:138mm RC:460mm)
FORK	Steel 700c (φ28.6xφ25.4xφ30x198mm)
HANDLEBAR	HL Alloy (W:610mm H:66mm)
GRIPS	Rubber (L:130mm)
STEM	HL Alloy (φ25.4*180mm*1.6T E=80mm 30°)
SEATPOST	HL Alloy (φ27.2 x 300mm)
SEAT CLAMP	HL Alloy, Quick Release
SADDLE	Cionlli Comfort Saddle
PEDALS	VP Non Slip Tread Alloy Body, 9/16″
FRONT BRAKES	Tektro Cable Disc Brake
REAR BRAKES	Tektro Cable Disc Brake
BRAKE LEVERS	Tektro Alloy Lever and Bracket
SPOKES	Stainless Steel (13G)
TYRE	Kenda Cosmos 700 x 35c with White Wall
TUBE	700 x 35c
RIM	XDS Alloy (700Cx622x19x13Gx36H)
REAR SHIFTER	Shimano Altus SL-M310 Rapid Fire Plus 8 Speed
REAR DERAILLEUR	Shimano Altus M-310
FREEWHEEL	Shimano Cassette CS-HG200 12-32t 8 Speed
CHAINWHEEL & CRANKS	3/32″ x 42T x 170mm
CHAIN	KMC 1/2″x3/32″x116L
CHAINGUARD	XDS F shape for 46T
BOTTOM BRACKET	Cartridge Bottom Bracket (BC1.37″x24T 68mm L:118mm)
HEADSET	φ25.4x φ34 x φ30mm H=36.6
FRONT HUB	KT Alloy, 13Gx36H M9x100x108mm
REAR HUB	See Electrical Specs below
MUDGUARDS	XDS 700c F/R w 50mm
BELL	Alloy/PP
RACK	700c H44.5mm L:218mm
KICKSTAND	Steel
BASKET	Steel & Cane



ELECTRICS

MOTOR	Bafang RM G120.250.DC, 700C, 25km/h, 36V/250W
MOTOR CABLE	Bafang CR S105.250.SN. 700″, 36V-250W, 15A, 25km/H, 0-5 level
DISPLAY	Bafang C10.UART LCD Display, DC 36V, 0-5 Modes

SENSOR	Bafang SR PA01.12.S
BATTERY	Phylion SF-03 CB5A0181 36V/11Ah
CHARGER INFO	Phylion CZ2AG7J24 Input: 100-240V 1.6A(MAX) 47/63HZ / Output:42V 2A
