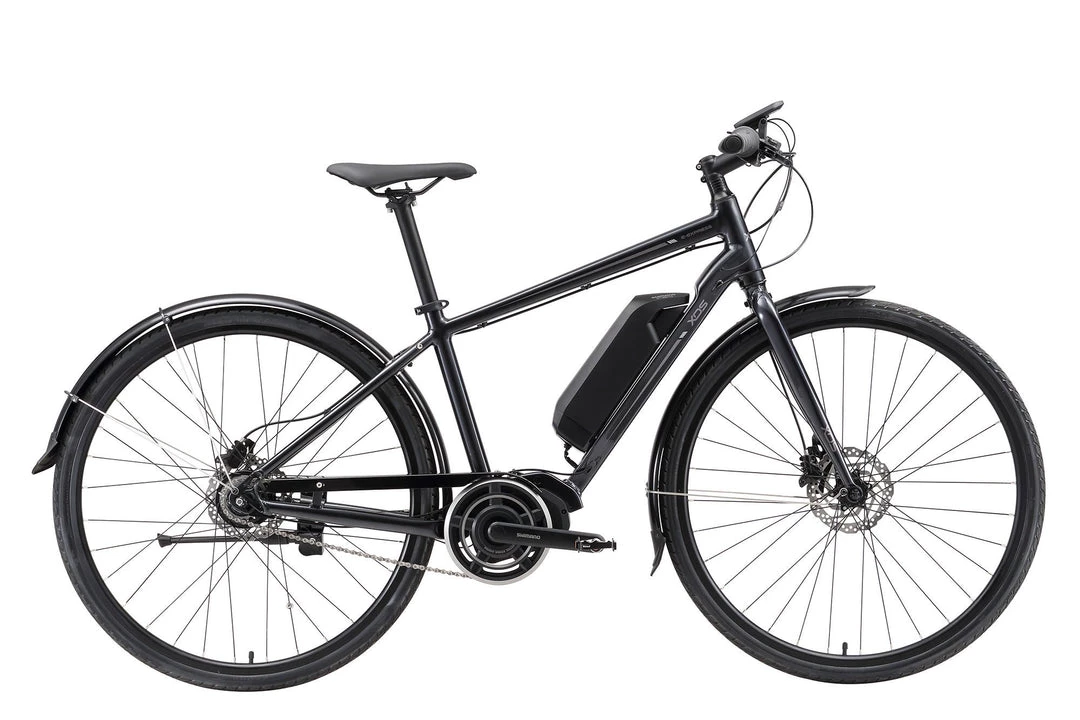

XDS E Express – Shimano Steps Mid Drive

CEB is proud to present an exciting new addition to our line up. The 2018 XDS E Express. The perfect commuter!

Specifications

FRAME: XDS 700C Alloy

FORK: XDS Alloy 700C φ28.6×φ25.4×φ30×L

HEAD SET: VP φ28.6×φ44×φ30mm H=10mm 15mmAHEAD CAPVP 1-1/8″ Alloy cap ,Stainless boltA

HEAD SPACER: ￠35.2×￠29×5mm X 4 PCS

HANDLE BAR: XDS Riser Bar W:680mm with Bar:31.8mm Bend: 6 R:15

STEM: XDS Ahead Stem DIA:28.6mm EXT:90mmGRIPVELO vlg-709AD3 L=130MM,R=70MM L/R double Blk krytion with Blk Gel end plugs

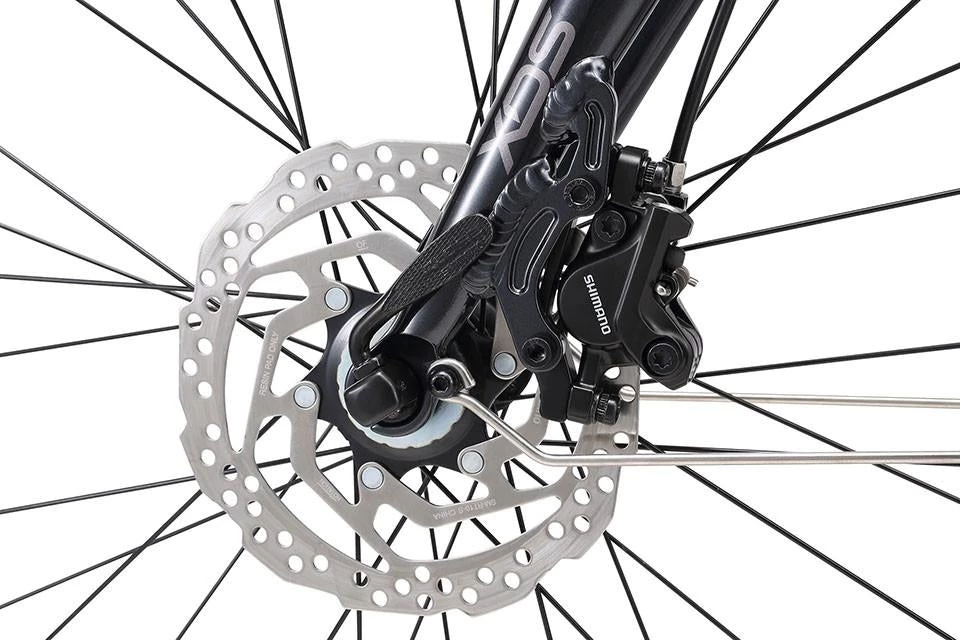

FRONT BRAKE: Shimano M315 DISC BRAKE

FRONT ROTOR: Shimano SMRT10S ROTOR ,160MM, W/CENTER LOCK RING, FOR RESIN PAD

REAR BRAKE: Shimano M315 DISC BRAKE

REAR ROTOR: Shimano SM-RT10,ROTOR , 160MM, W/CENTER LOCK RING, FOR RESIN PAD

BRAKE LEVER: Shimano

RIM: XDS MD 20 700C 14G×32H DW, CNC sidewall & eyeleted, AVSPOKESXDS SS 14GF.

HUB: Shimano FR HUB, HB-M3050, 32H OLD :100MM AXLE:108MM,Centre lock rotor , QR:133MMR. HUBShimano 8Spd Nexus Int , Centre lock rotor , 32H, 135X187MM

FREEWHEEL: Shimano 18T(2.3mm

TIRES: Kenda 700C*38CTUBESKenda 700CX38CRIM TAPE700C×16mm H/ intensity

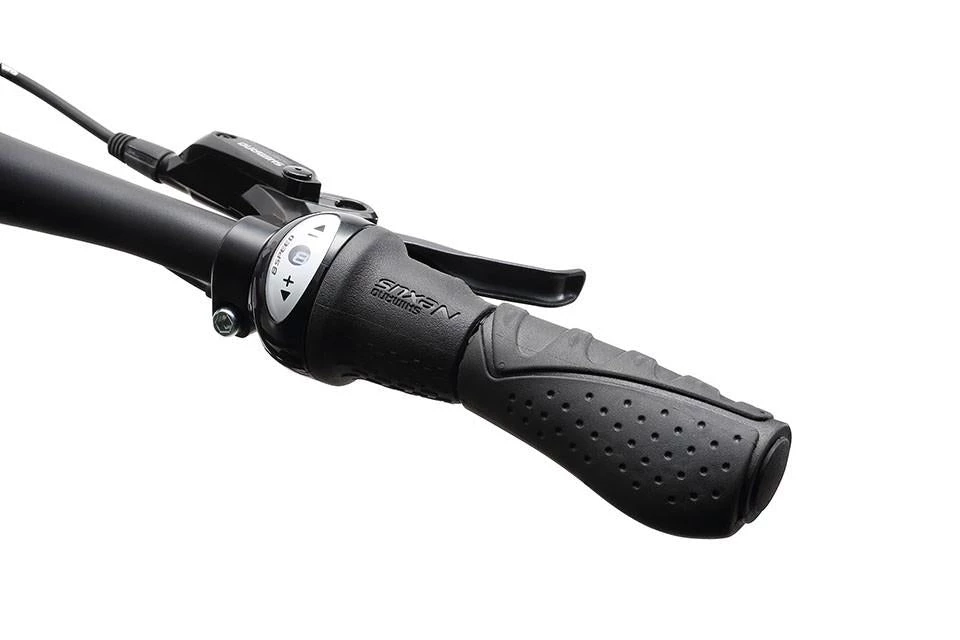

SHIFTER: Shimano , SL-8S31, Nexus, Revo

CHAIN: KMC 116L 8-SP

PEDALS: Wellgo M21 9/16,CR-MO SPINDLE, Alloy ,Silver body Blk cage

SADDLE: SR,VOGA-1209URN，Black

SEAT POST: XDS Dia: 31.6 X 350mm for 15″. Above: 400mm Black Head Fittings

PIN & CLAMP: Kalloy φ35mm Clamp W/QRFENDERBikemen SP-50C 700C F/R Fender

KICKSTAND: Pletscher ESGE Comp 28″

CHAINGUARD: BlkBELLBlk Alloy

ELECTRIC PARTS

KEY CYLINDER: Shimano ABUS RH Battery Lock 2 KEYSELECTRIC PLUGShimano Electric Plug

CRANK: Shimano crank arm, FC-E6000 170mm for 15″, above=175MM,AFCE6000EXL

CHAINWHEEL: Shimano FOR FC-E6000, STEPS, SM-CRE60, 44T KS CRE60B4DGG

DRIVE UNIT: DU-E6001 Steps,MID, 25km/h,(SM-DUE60),W/Speed Sensor & Magent For Speed Sensor BlackR /S / COVERSM-DUE60, Cover & Screw, 0 DEGREES DU Position Blk

BATTERY: Battery , BT-E6010, Steps , 418Wh, Postion : (Down Tube),Blk, Aus StandardsCHARGERBattery Charger EC-E6000-1, Steps, For BT-E6000/6010,Built in AC Power Cable for EU

POWER CABLE: Power Cable For SM-BCR1, 220V For EU, (Type-C)

BATTERY MOUNT: Battery Mount , BM-E6010, Steps, For BT-E6010 (Frame Type ),W/O Key Cylinder

ELECTRIC WIRE: Electric Wire For Internal Routing, 1200mm Black

SWITCH: Switch, SW-E6000, Steps, Switch For Assist (Initial Setting ),Compatible W/SEIS ( Setby E- Tube Project ) W/Cord A x 2, Cord Band B X1, Black

DISPLAY: Cycle Computer , SC-E6010, Steps
