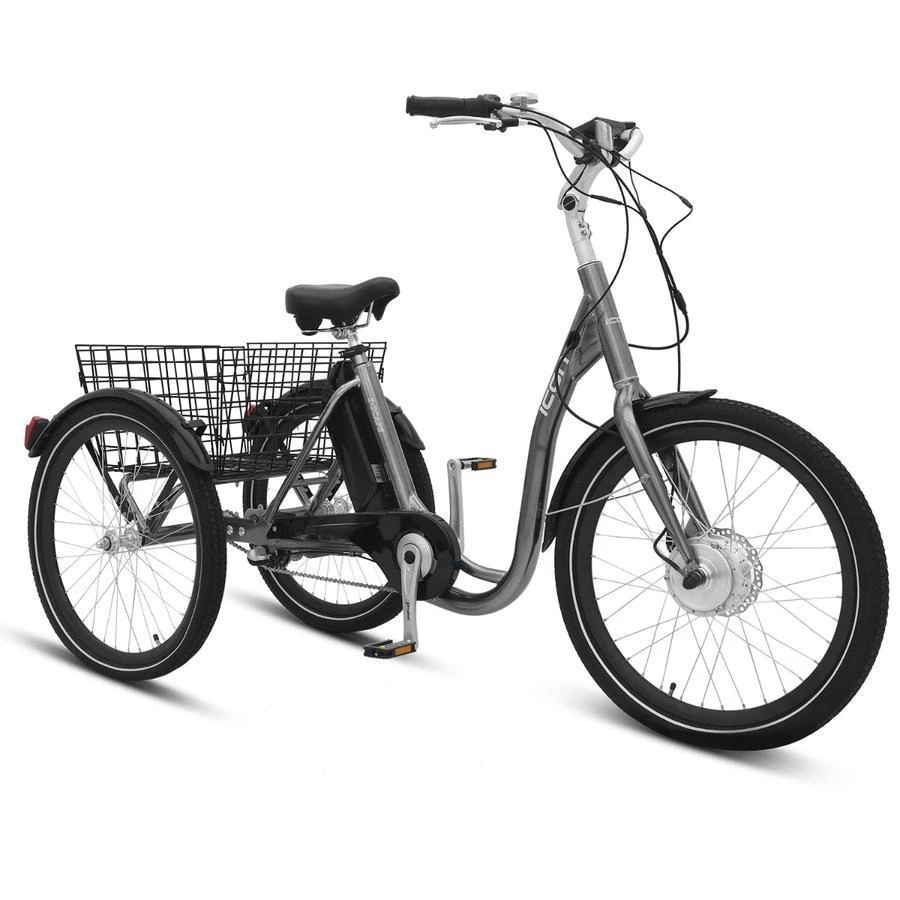

XDS E-SCAPE Electric Trike – 3 Speed Internal

The Trike

An absolute joy for the heart and soul, the Icon E-Scape electric tricycle is a friend to riders of any level. A leisurely ride through the park or a trip to the grocery store are more accessible with the balance of a trike, and an electric motor that is capable of traveling huge distances.

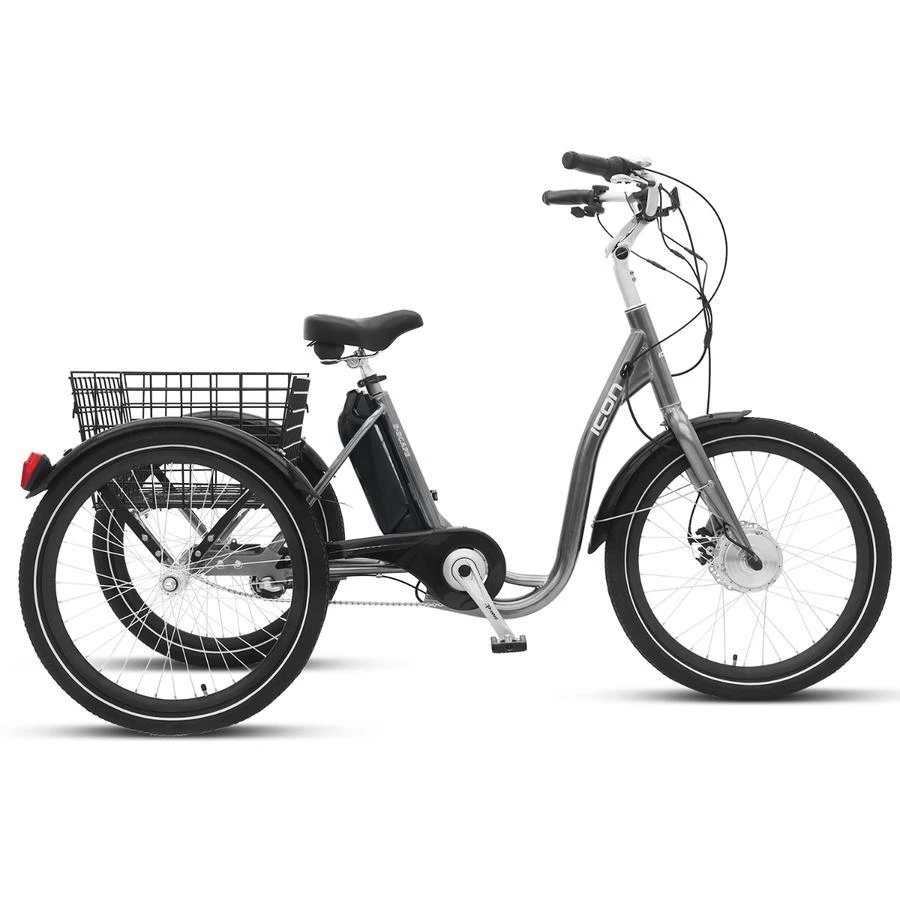

A low step over frame makes the E-Scape simple to mount and dismount, and a high sweptback handlebar gives riders a vintage flair and an upright riding posture that’s easy on the back. This is a tricycle that is accessible to riders of varying physical abilities, or perfect for rehabilitation following an injury.

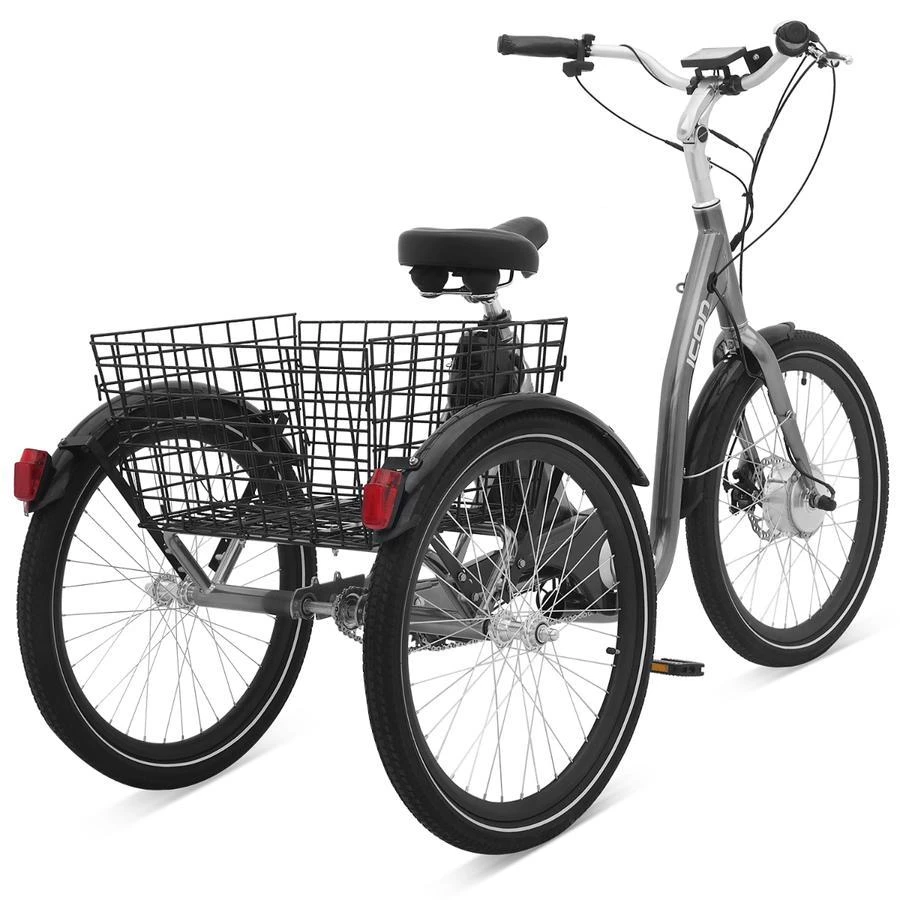

Two wheels in the rear edge out a bicycle for balance and comfort, making this an ideal vehicle for carrying cargo. Load your 57cm by 47cm (L x W) rear steel basket with groceries or packages, and remain confident that the balance of the weight through the two back wheels will always keep you upright. The E-Scape is effortless and smooth with its pedal assist hub-drive motor. The motor senses pedaling cadence and can amplify power up to speeds of 25km/h. Use the E-Scape’s LCD display to track your trip stats, battery charge, and set your power assist. The 36V Lithium Ion battery will help you to travel on the road for distances up to 50km.

Stopping power comes easy with front disc brakes and rear coaster hub brakes. For a relaxing ride for all levels of riders, look no further than the Icon E-Scape electric tricycle.

Specicifications

FRAME	Steel with Low Step Over Frame
FORK	Steel
HANDLEBAR	Zoom Alloy
GRIPS	Comfortable Rubber
STEM	Promax Alloy Adjustable Stem
SEATPOST	Promax Alloy
SEAT CLAMP	Promax Alloy
SADDLE	Comfortable and spring leather
PEDALS	FP-965 with Ball Bearings (9/16″)
FRONT BRAKES	Tektro Disc Brakes
REAR BRAKES	Rear Coaster Brake. Back Pedal Brake
BRAKE LEVERS	Promax Alloy Brake Levers

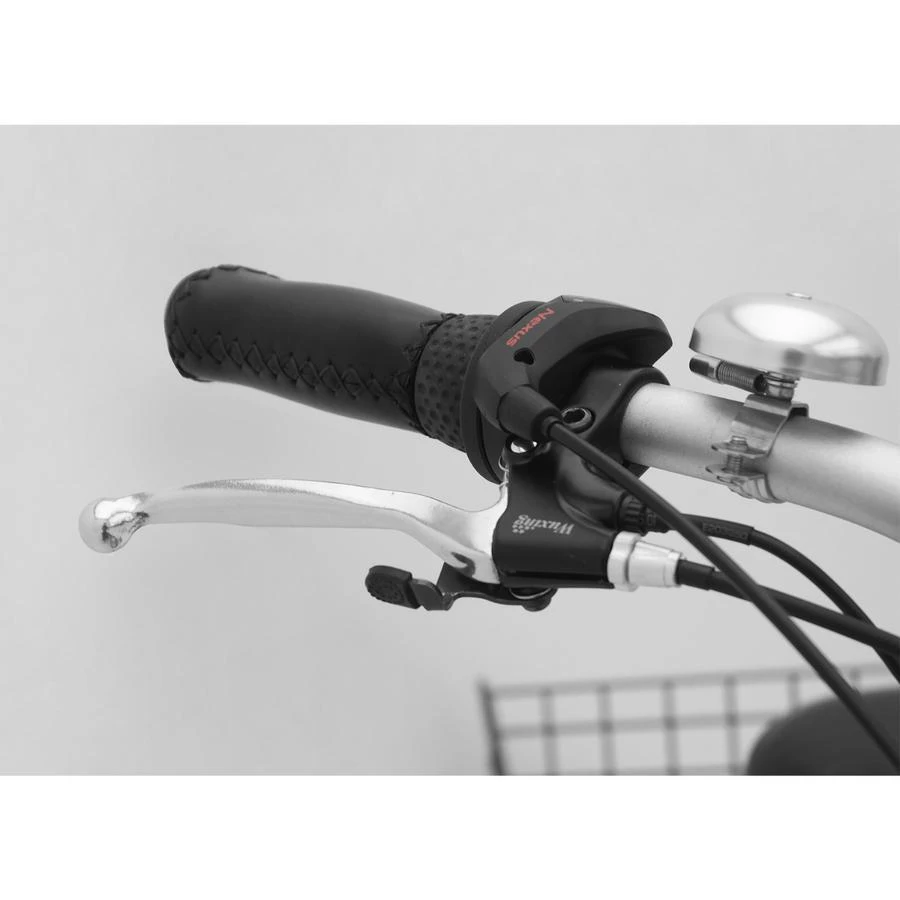

REAR SHIFTER	Shimano Nexus Revo Shifters (SL-3S41E)
CHAINWHEEL & CRANKS	Promax Steel Chainwheel with Alloy Cranks

CHAIN	Steel (1/2″x 1/8″ x 96L)
CHAINGUARD	Plastic
BOTTOM BRACKET	Cr/Mo Steel
HEADSET	Alloy

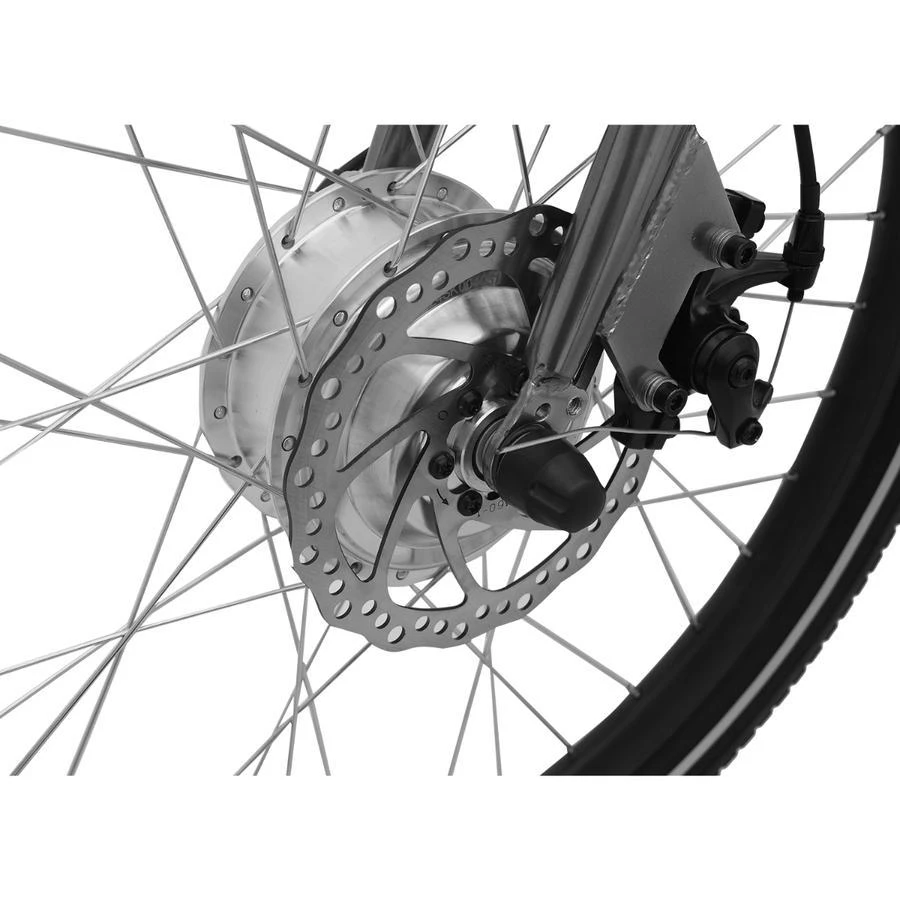

FRONT HUB	Motor: 36V 250W (24″ 13G x 36H x 100W)
REAR HUB	Shimano Nexus 3-Speed
SPOKES	Stainless Steel F: 13g / R: 14g
TYRE	Kenda 24″ x 2.125″
RIM	Alloy (24″ x 1.5 x 13G x 36H)
MUDGUARDS	Front and Rear Steel Fenders
BELL	Alloy/Steel
BASKET	(570 x 471 x 285mm)
CAPACITY	Load Capcity: 110kgs



Electrics

MOTOR	250W DC Brushless 36V
DISPLAY	DPLCD Display Panel
SENSOR	KT-V12 Sensor

CHARGER INFO	Maximum Speed 25km/h
BATTERY	36V 9AH Li-ion Battery with Charge time of 4-6 Hours.  EN61000-6-3: 2007+A1: 2011 and EN61000-6-1:2007  Compliant. UN38.3 Compliant.
DISTANCE	25-50km on Full Charge (Dependent on Style of Riding, Weight, and Other Variables)
